Phantom-powered Active Circuitry Unleashes Clean Headroom

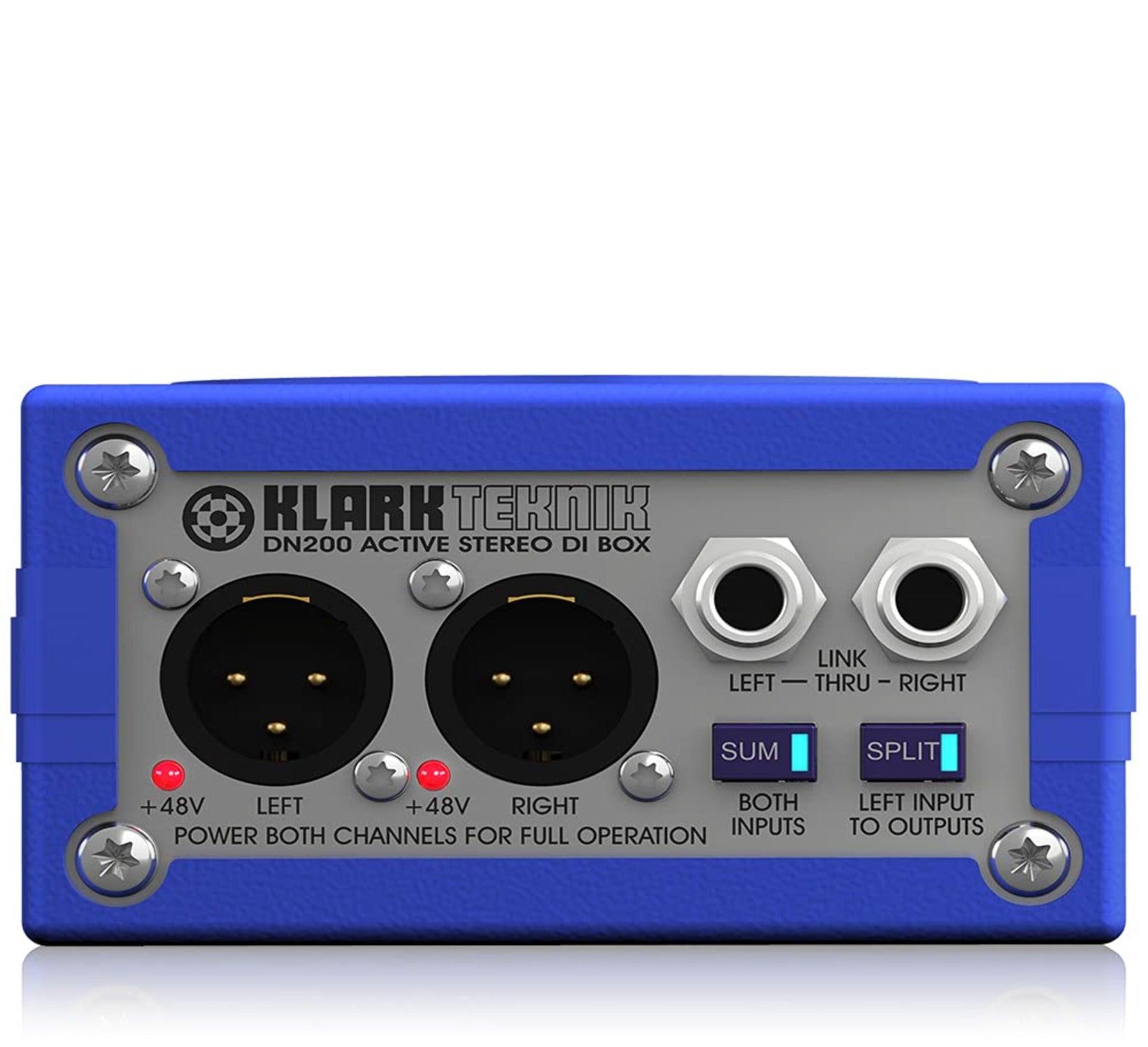

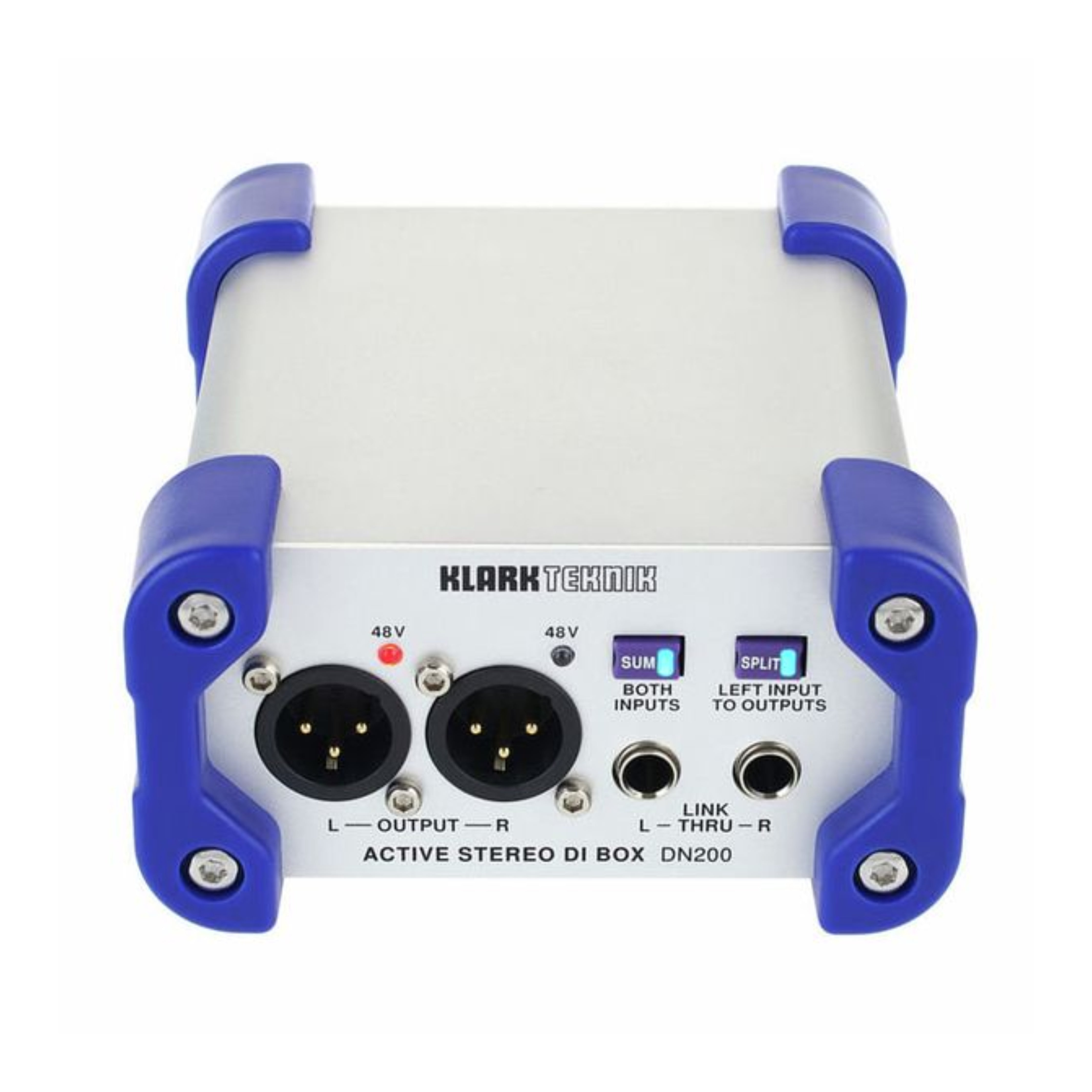

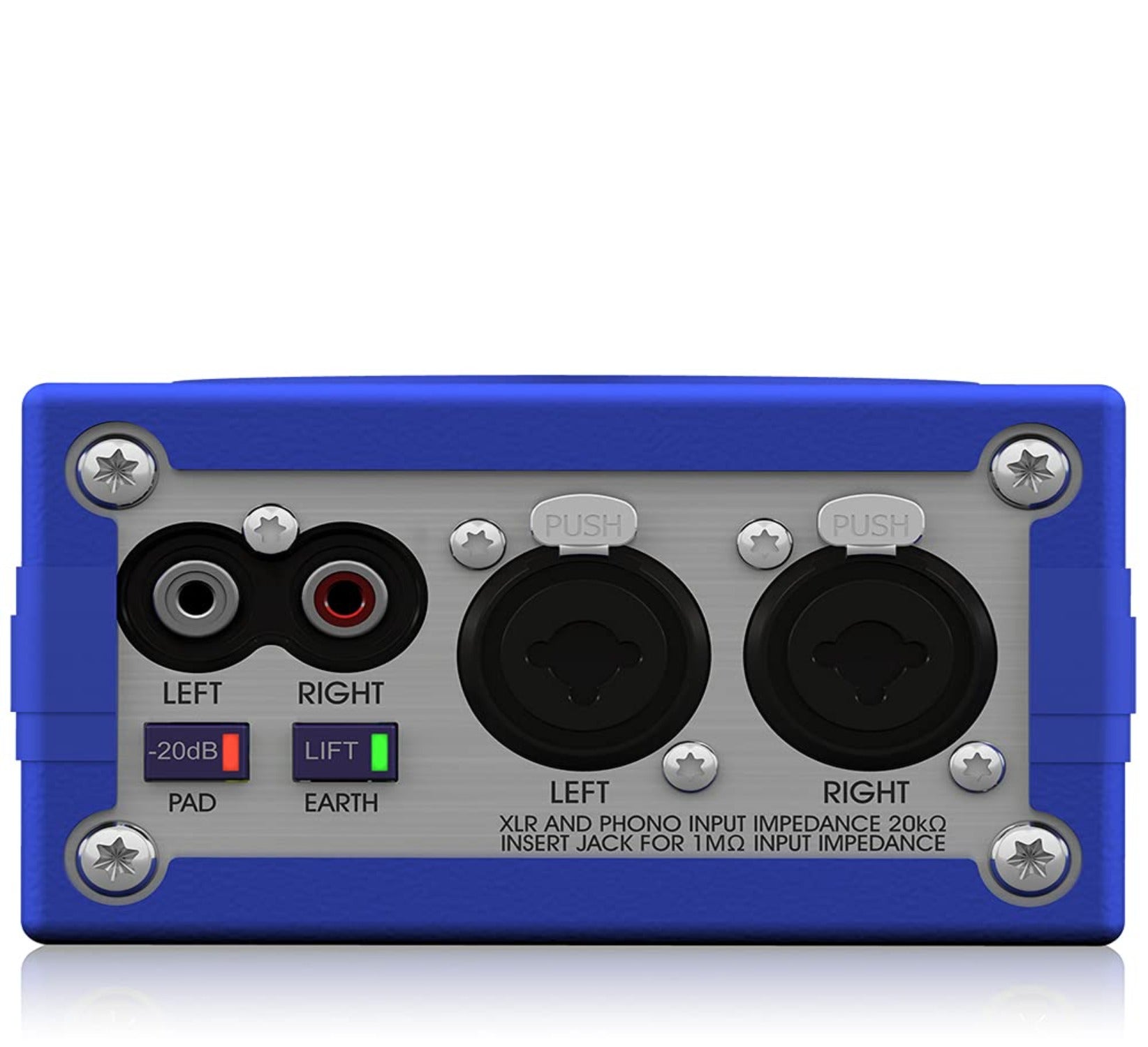

An active DI like the Klark Teknik DN200 V2 can dramatically enhance your stage and studio setup. The stereo DN200 V2 boasts an ultra-clean active circuitry that's powered by standard 48-volt phantom power from your console — just connect the XLR output to your board, engage each channel's phantom power, and that's all there is to it. This active circuitry gives the DN200 V2 a high headroom and a wide dynamic range to accurately capture the instrument, laptop, phone, or other balanced stereo source you've got plugged in. This is accomplished by using the side-by-side stereo XLR combo jacks on the front or the convenient 3.5mm stereo TRS jack right next door. With the flip of a couple switches, stereo signals coming into the DN200 V2 can quickly be summed to mono, while mono sources can be split into two destinations. This gives you incredible flexibility that would normally be accomplished through the use of an external device (and would otherwise require several additional cables and rounds of plug-in gymnastics). Around back, Pad and Earth switches insulate your signal against unwanted overages and excess hum due to ground loops. Worried about rowdy performers stomping all over your gear? The Klark Teknik DN200 V2's thick aluminum housing and rough-and-tumble silicone rubber bumpers are enough to instill confidence in the most protective sound engineer. Take it from Sweetwater: if you're in the market for a high-performance active DI that can take a tumble and won't break the bank, then the Klark Teknik DN200 V2 is a fine choice.

More Information

Klark Teknik DN200 V2 Stereo Active Direct Box Features:
  • High headroom and wide dynamic range
  • Ultra-clean active circuitry
  • Dual XLR combo inputs for stereo amp modelers and keyboards
  • 1/8-inch TRS input for laptops and phones
  • Sum switch: folds stereo inputs down to a single mono output
  • Split switch: sends identical mono inputs to 2 destinations
  • Powered by 48-volt console phantom power
  • A convenient way to get stage signals into your board over long distances
  • Output and power transformers optimized for performance and isolation
  • Durable aluminum housing with silicone rubber bumpers
  • -20dB pad protects against unwanted overages
  • Earth lift switch eliminates ground loop problems

Technical Specification

Tech Specs
  • Type:Active
  • Channels:1
  • Pads:-20dB
  • Ground Lift:Yes
  • Inputs:2 x XLR
  • Outputs:2 x XLR
  • Other I/O:2 x 1/4" (link thru)
  • Power Source:48V Phantom Power
  • Height:2.5"
  • Depth:4.7"
  • Width:5.6"
  • Weight:1.43 lbs.
