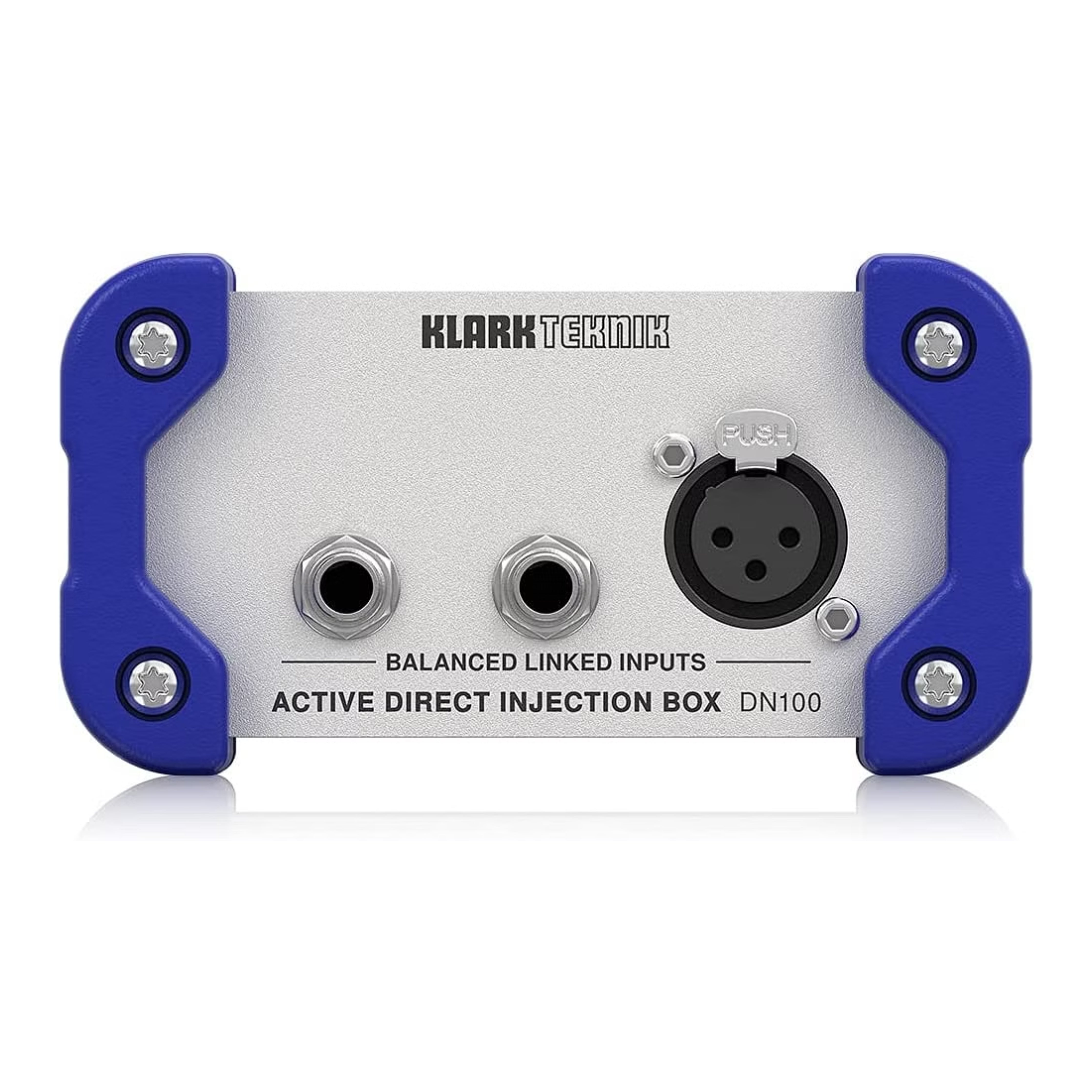

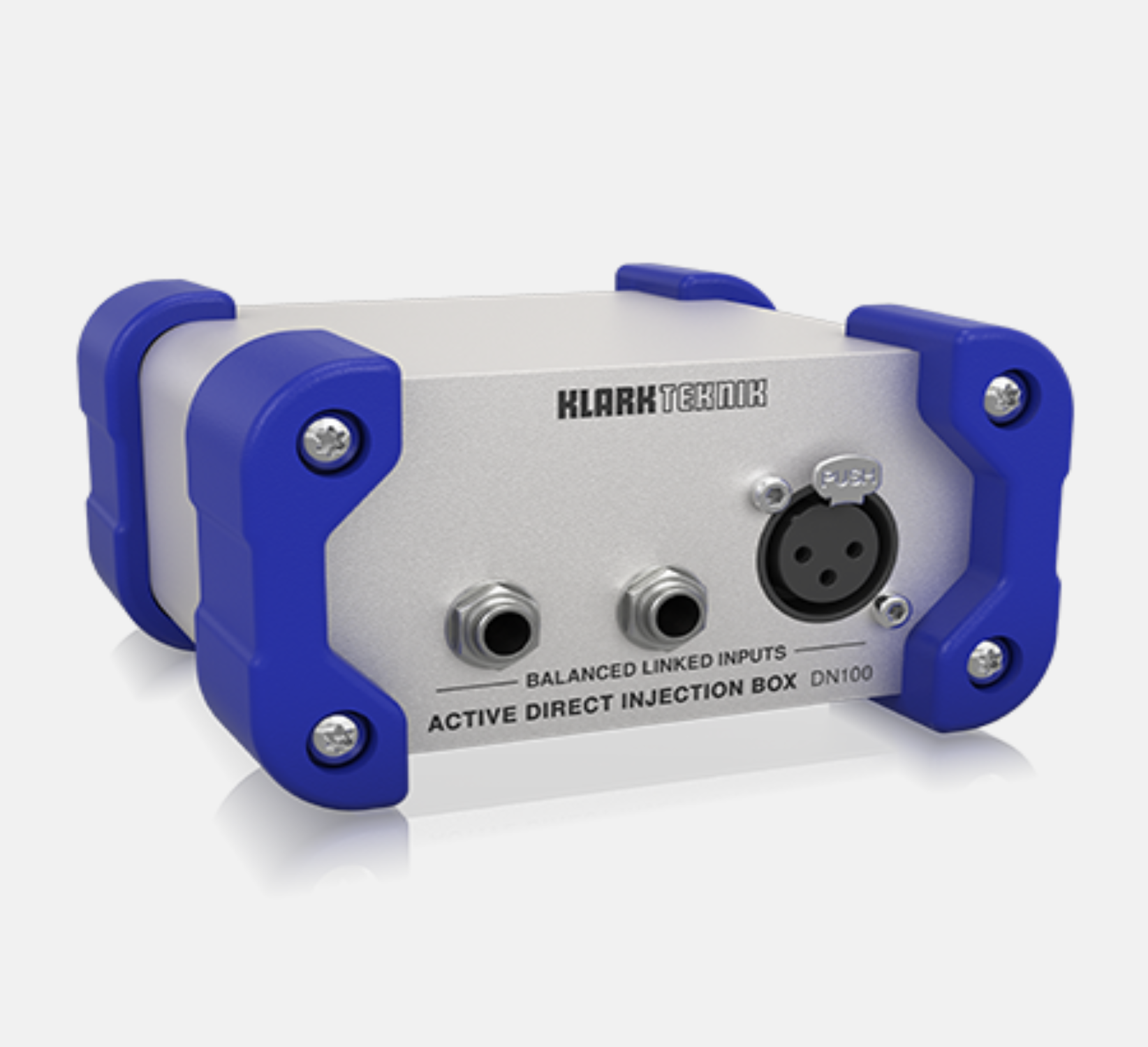

Phantom-powered Active Circuitry Unleashes Clean Headroom

An active DI like the Klark Teknik DN100 V2 can dramatically enhance your stage and studio setup. The DN100 V2 boasts an ultra-clean active circuitry that's powered by standard 48-volt phantom power from your console — just connect the XLR output to your board, engage that channel's phantom power, and that's all there is to it. This active circuitry gives the DN100 V2 a high headroom and a wide dynamic range to accurately capture the keyboard, guitar modeler, or other balanced instrument source you've got plugged in. In addition to being a convenient way to get a stage signal into your board over long distances, the DN100 V2 also gives you parallel XLR and TRS outputs that'll let you send your signal to an amplifier or other input source. Around back, Pad and Earth switches insulate your signal against unwanted overages and excess hum due to ground loops. Worried about rowdy performers stomping all over your gear? The Klark Teknik DN100 V2's thick aluminum housing and rough-and-tumble silicone rubber bumpers are enough to instill confidence in the most protective sound engineer. Take it from Sweetwater: if you're in the market for a high-performance active DI that can take a tumble and won't break the bank, then the Klark Teknik DN100 V2 is a fine choice.

More Information

Klark Teknik DN100 V2 Active Direct Box Features:
  • High headroom and wide dynamic range
  • Ultra-clean active circuitry
  • Converts a balanced line-level signal to mic level
  • Powered by 48-volt console phantom power
  • A convenient way to get a keyboard signal into your board over long distances
  • Output transformer optimized for frequency and phase response
  • Parallel-wired XLR and TRS outputs let you send your input signal into an amp or other source
  • Durable aluminum housing with silicone rubber bumpers

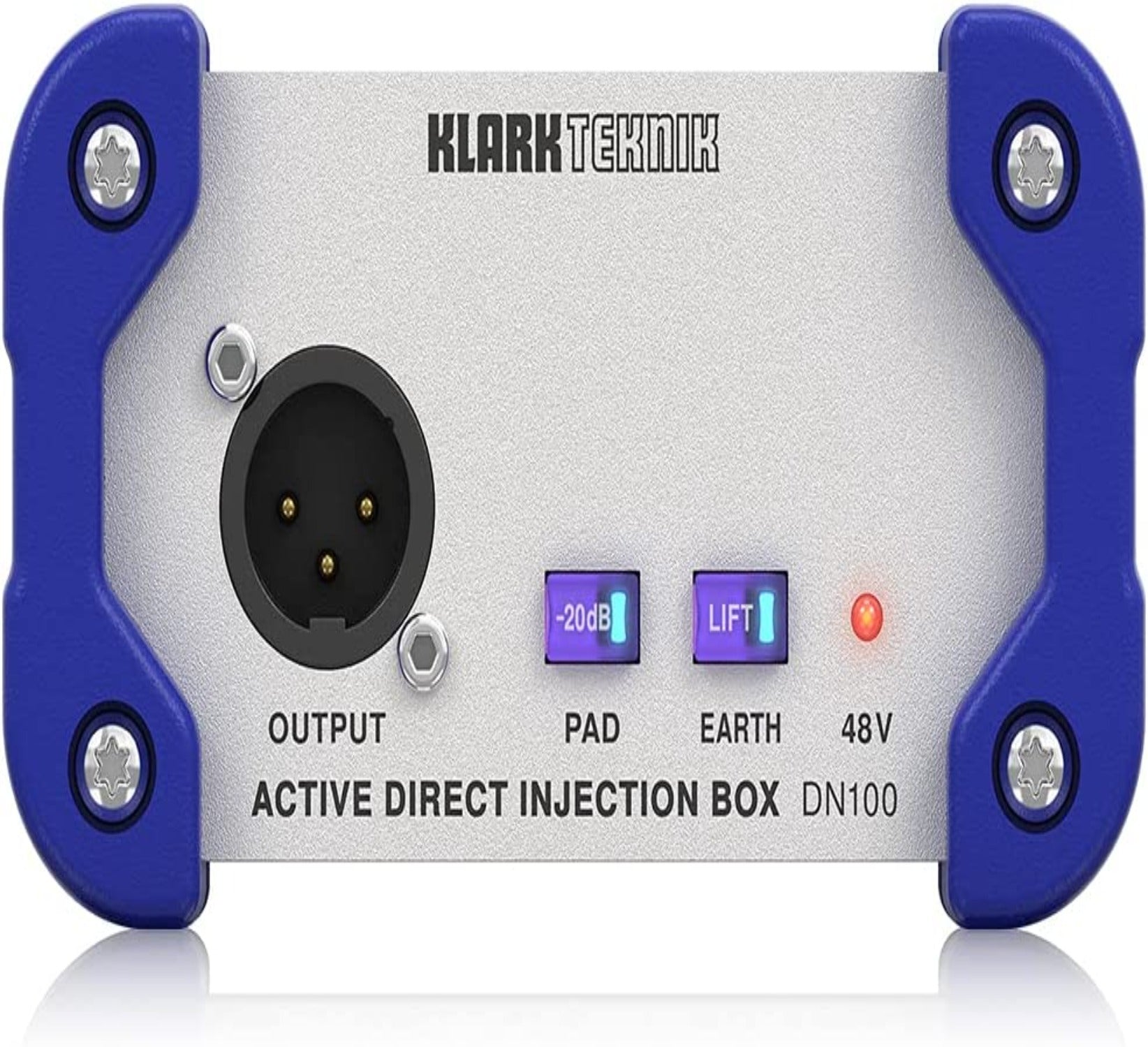

  • -20dB pad protects against unwanted overages
  • Earth lift switch eliminates ground loop

Technical Specification

Tech Specs
  • Type:Active
  • Channels:1
  • Pads:-20dB
  • Ground Lift:Yes
  • Inputs:1 x 1/4", 1 x XLR
  • Outputs:1 x XLR
  • Other I/O:1 x 1/4" (link thru)
  • Power Source:48V Phantom Power
  • Height:2.5"
  • Depth:4.4"
  • Width:4.7"
  • Weight:0.97 lbs.
