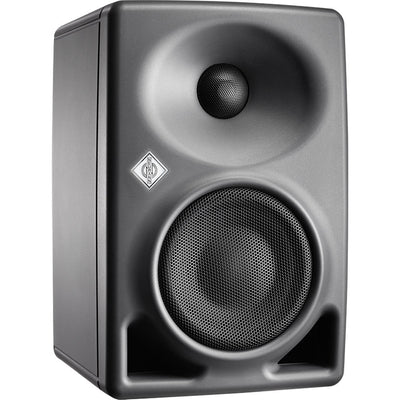

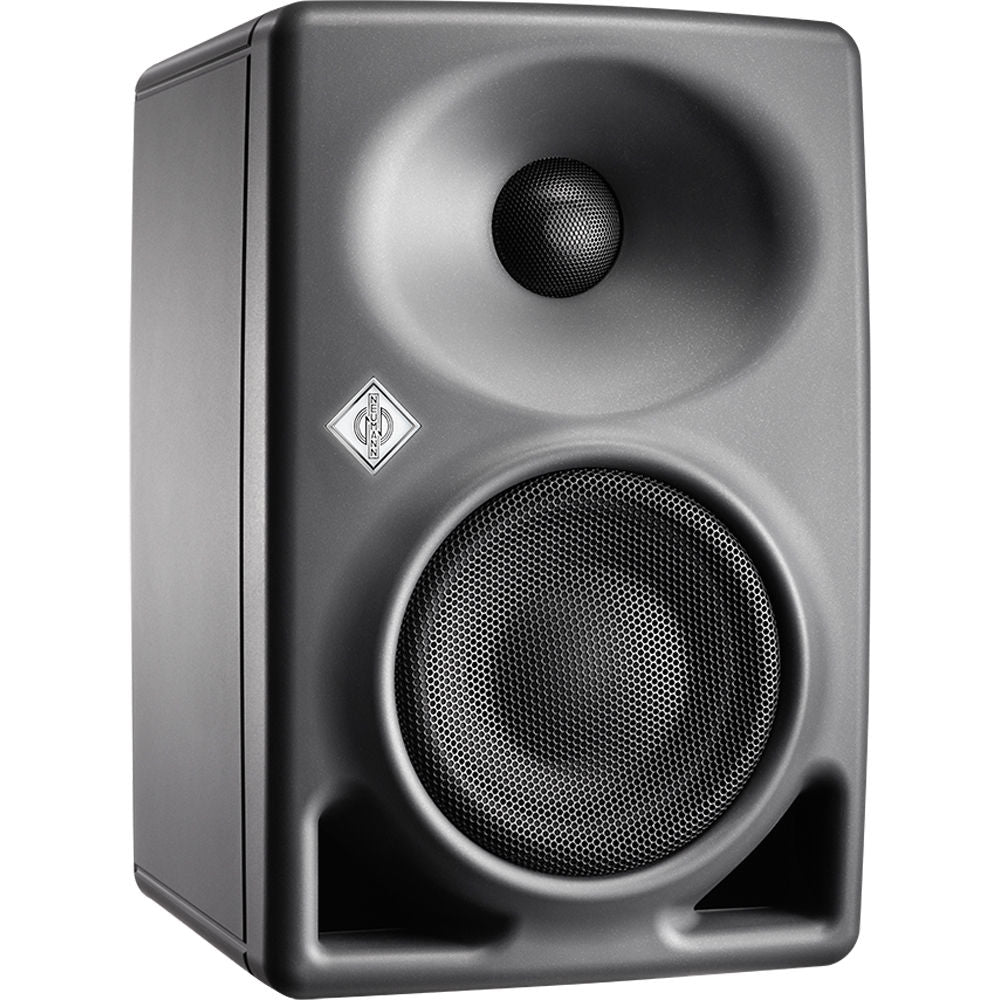

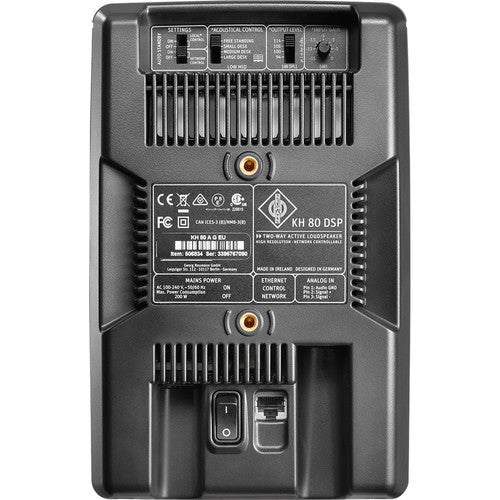

NEUMANN KH80 DSP AG

NEUMANN KH80 DSP AG

Neumann's KH series established the world-renowned mic maker as an authority in the modern monitoring world, and they've done it again with their KH 80 DSP nearfield model. This remarkably affordable monitor features a 2-way nearfield design backed by DSP-controlled bi-amplification technology that you can control via a central network right from your tablet or computer. Sweetwater engineers are excited about this function, which makes KH 80 ideal for surround sound monitoring configurations. The KH 80 DSP nearfield studio monitor demonstrates the no-compromise sound quality and impeccable build standards you can expect from Neumann.

More Information

  • Top-shelf Neumann speaker technology in an affordable nearfield monitor
  • Tried-and-true 4" x 1" nearfield speaker configuration is ideal for mixing suites and small studios
  • Network-accessible DSP-regulated bi-amplification lets you configure your system from a central controller
  • Manage multiple monitors from your iPad
  • Mathematically Modeled Dispersion Waveguide (MMD) provides superior dispersion
  • Premium technology ensures top-quality imaging and signal handling

Technical Specification

  • Powered:Yes
  • Power Configuration:Bi-amped
  • Quantity:Single
  • LF Driver Size:4" long throw driver
  • HF Driver Size:1" tweeter
  • LF Driver Power Amp:120W peak
  • HF Driver Power Amp:70W peak
  • Frequency Response:57Hz-21kHz (±3 dB)
  • Crossover Frequency:1.8 kHz, 48dB slope per octave
  • Maximum Peak SPL:108.8 dB SPL
  • Input Types:1 x XLR-1/4" combo
  • Other I/O:Ethernet control network
  • Features:DSP engine with network control, Elliptical Dispersion waveguide surface (MMD), 2 x M6 mounting points
  • Enclosure Type:Front ported
  • Height:9.1"
  • Width:6.0"
  • Depth:7.6"
  • Weight:7 lbs. 8 oz.
View full details
