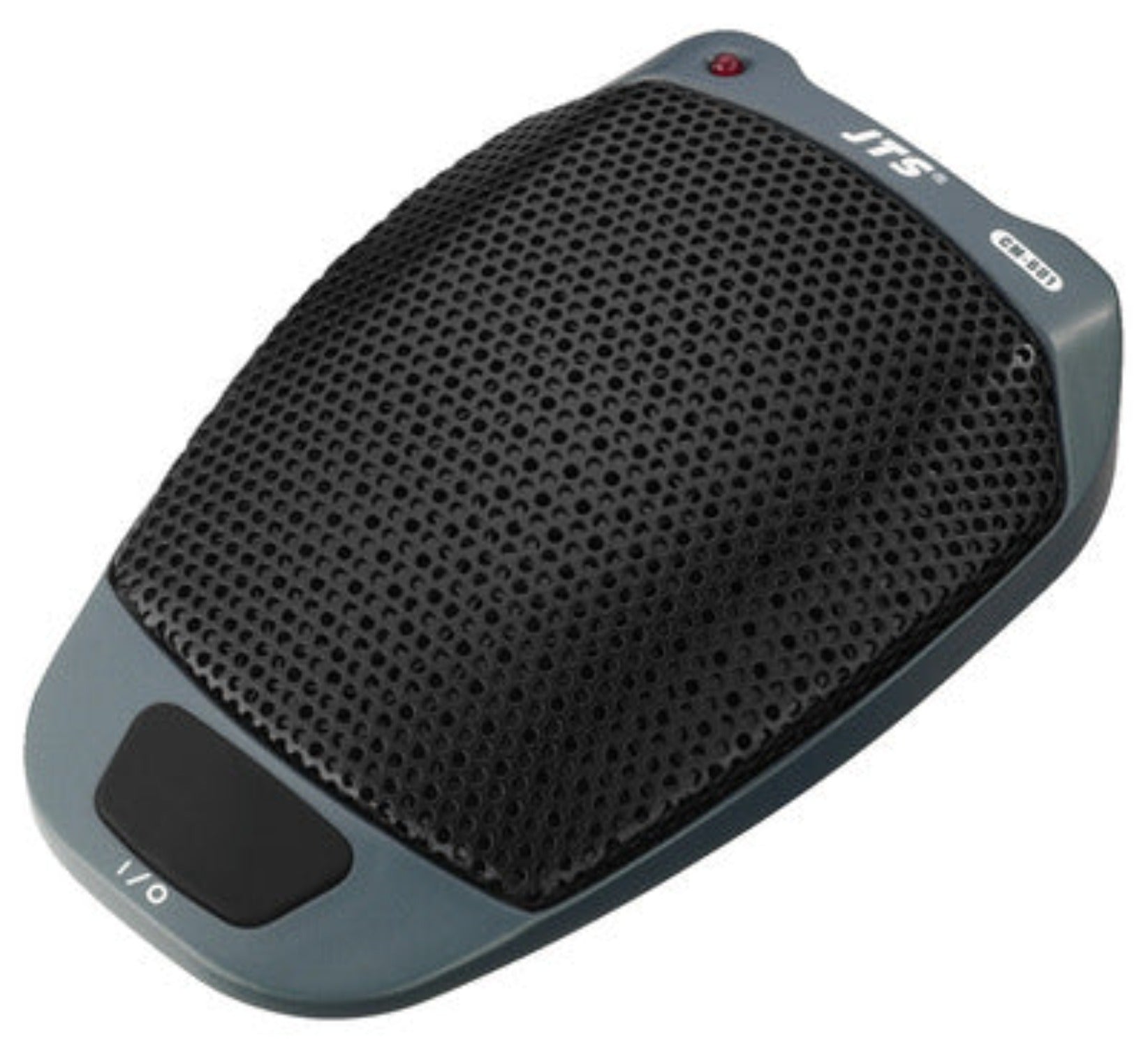

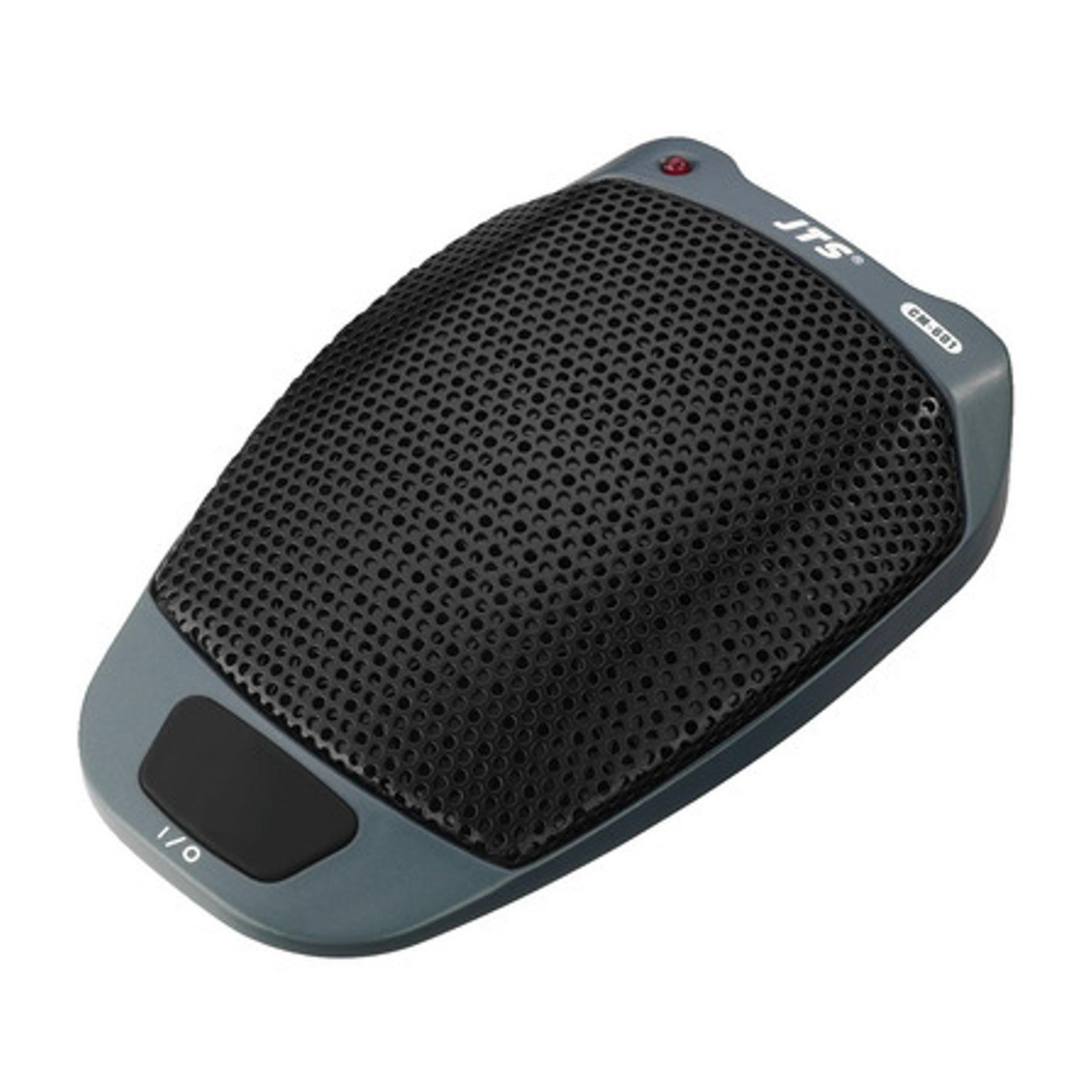

JTS CM-601

JTS CM-601

The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule. The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF, PUSH TO TALK and PUSH TO MUTE three modes. The precisely calculated circuit plus tailored capsule response ensure transparent sound quality. Internal shock mount minimizes mechanical noise.

More Information

Electret boundary microphone

  • For theatrical performances, discussions, conferences and in churches
  • A direct alignment to the sound source is not essential due to the special characteristics of a boundary microphone
  • Dual low cut filter (80 Hz/120 Hz)
  • Configurable push-button (PTT, PTM or switching function)
  • Standby LED
  • Robust and shock-absorbing body
  • Elastic cartridge suspension for preventing structure-borne noise and impact sound
  • With 8 m cable mini XLR jack to XLR plug
  • Connection via 3-pole mini XLR plug, unbal.
  • With preformed outline at the bottom for possible wall mounting

Technical Specification

  • Type   Electret Condenser
  • Frequency Response   30~12,000 Hz
  • Sensitivity (at 1,000Hz)   -53±3 dB* (2.23mV)  0dB=1V /μbar
  • Directional Pattern   Half-Cardioid
  • Impedance   100Ω
  • Max. SPL for 1% THD   125 dB
  • Signal-To-Noise Ratio   67dB
  • Power Supply   12-52 VDC phantom power
  • Current Consumption   ≤6mA
  • Output Connector   3P Mini XLR-M type (power module)
  • Low Frequency Roll-off   80Hz , 120Hz
  • Push control: on/off
  • Function selection:push on/off, momentaryon/off
  • Low cut : low frequency roll-off
