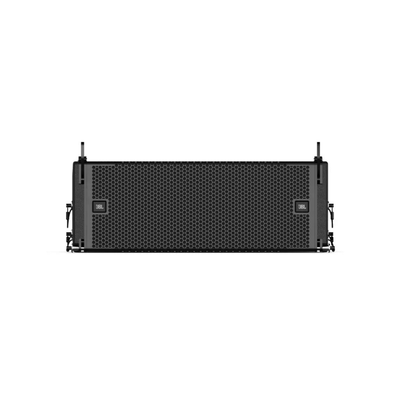

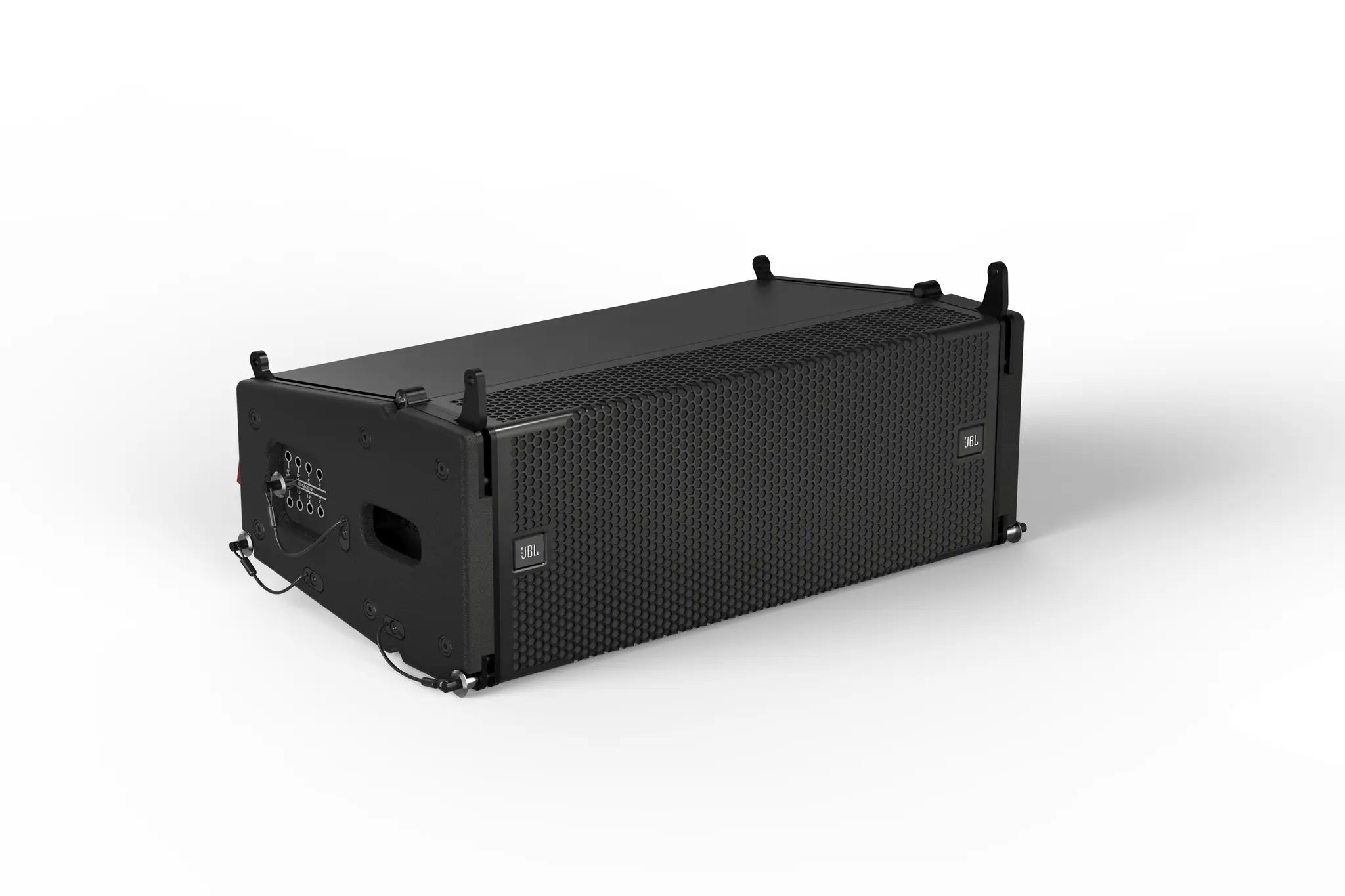

Features

  • High-frequency section features a custom 3-inch polymer annular-diaphragm compression driver and integrated waveguide for crisp, distortion-free highs
  • Custom 6.5-inch woofers are based on JBL’s Differential Drive dual-voicecoil, dual-gap design for superior low-frequency performance in a compact footprint
  • Radiation Boundary Integrator (RBI) horn design provides 120° horizontal dispersion in a reduced cabinet size
  • Efficient passive crossover network allows 16 speakers to be connected to a single Crown I-Tech 4x3500HD amplifier
  • Industry-leading auto-locking rigging and suspension features allow fast, accurate deployment in flown and ground-stacked configurations
  • A6 and B15 have the same cabinet width and suspension hardware, allowing the two products to be combined in flown and ground-stacked configurations
  • Fully compatible with JBL LAC-3, Array Link and Performance Manager software
  • Neutrik speakON NL4 connectors
  • Rugged, exterior-grade birch enclosure with black Duraflex finish and recessed handholds
  • Powder-coated, hex-perforated steel grilles with acoustically transparent cloth backing
  • Available accessories include mini frame, suspension bar, base plate, ceiling mount, cover, ground stack accessory, pole adapter and transport cover and accessories
Technical Specifications


TECHNICAL SPECIFICATIONS
ACOUSTICAL
Frequency Range1
(-10 dB) :
(±3 dB) :
67 Hz-20 kHz
80 Hz-19 kHz
Coverage Pattern (-6 dB)
Horizontal :
Vertical :
110 degrees nominal (500 Hz-16 kHz)
Varies with array size and configuration
Maximum Peak Output2
: 134 dB
System Power Rating3
: 350 Watts Continuous (IEC/100 hour)
System Type : Line Array, two-way passive
TRANSDUCERS
Low Frequency : (2) JBL 2186J, 6.5 in diameter, dual 2.5 in diameter voice coil, neodymium Differential Drive®
High Frequency : (1) JBL 2433H, 3 in diameter annular diaphragm, 3 in diameter voice coil, neodymium compression driver
AMPLIFICATION
System Amplification : Crown iTech HD (all models)
Crown iTech 4x3500HD
Required Amplifier Channels : (1)
Number of Cabinets per Channel : (4)
System Nominal Impedance : 10 ohms
PHYSICAL
Enclosure : 12 mm 9-ply exterior grade birch plywood, black DuraFlexTM finish, four integral recessed handholds
Environmental Specifications : IP55 (IEC 60529)4
MIL-STD-810
UV (ASTM G154)
Suspension : High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking
mechanism for setting angles
Inter-enclosure Angle (deg) : 0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 12, 15
Grille : Powder coated 1.5 mm (16-gauge) hex perforated steel with acoustically transparent black cloth backing
Connectors
Type :
Pin Assignments :
(2) Neutrik® speakON® STXX Series NL4
Selectable between Pin 1 ± and Pin 2 ±
Dimensions (H x W x D) : 190 mm x 536 mm x 301 mm
7.5 in x 21.1 in x 11.8 in
Net Weight :
Shipping Weight :
18.4 kg (40.3 lbs)
20.3 kg (40.8 lbs)
Footnotes:
1: Measured under full-space conditions using the VTX A6 FL 80 (fill) preset.
2: Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12 dB crest factor and using the VTX A6 80 array preset.
3: IEC Standard: IEC shaped noise with 6 dB crest factor based on nominal impedance and a duration of 100 hours. Continuous is defined as 2x RMS.
4: Front face at 0 degrees or greater down angle to allow the cabinet to drain water. Suspension components fully weather rated for indoor or covered outdoor conditions where humidity is nominally under 50% and not local
to bodies of corrosive materials. Unused speakON connectors must be sealed using silicone to protect against water and moisture
