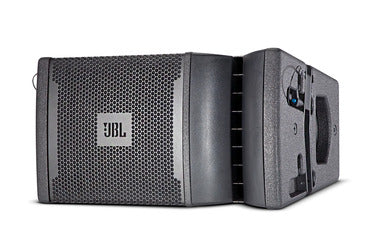

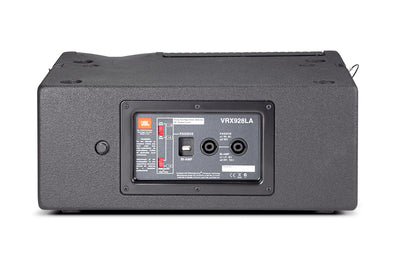

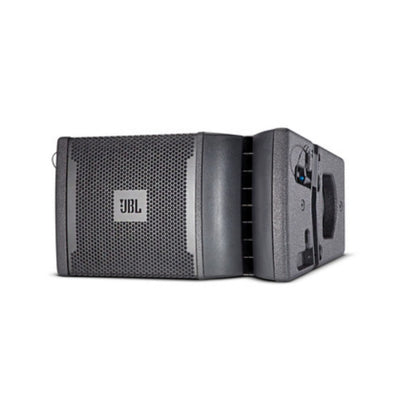

JBL VRX928LA

JBL VRX928LA

8 in. Two-Way Line Array Loudspeaker System

The VRX928LA is a lightweight (28 lb / 13 kg) compact 8" two-way linearray speaker system designed for use in arrays of up to six units.

More Information

Features

  • Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
  • Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
  • Suspension and Rigging.
  • Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure
    (not on - WH version)
  • Differential Drive® Woofer.

Technical Specification

Tech Specs

  • Powered:No
  • LF Driver Size:8"
  • HF Driver Size:1"
  • Power Rating:800W
  • Total Power:1600W
  • Inputs:2 x Speakon
  • Impedance:8 ohms
  • Frequency Range:70Hz-20khz
  • Crossover Frequency:2kHz
  • Maximum Peak SPL:122dB
  • Horizontal Coverage Angle:100 Degrees
  • Vertical Coverage Angle:15 Degrees
  • Mounting Options:Pole Mount with dual 1.41" socket, Fly Mount (optional hardware required)
  • Enclosure Material:Plywood
  • Height:9"
  • Width:16.5"
  • Depth:10.5"
  • Weight:28 lbs.
