JBL VRX 932 LAP

JBL VRX 932 LAP

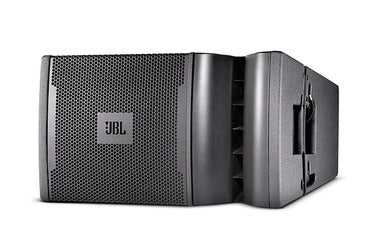

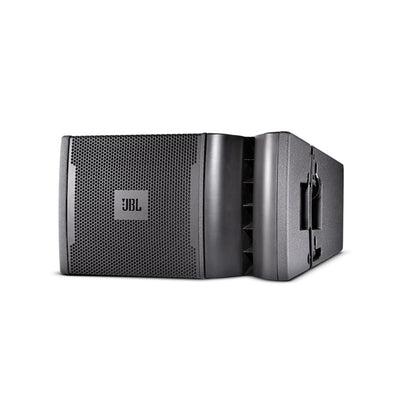

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.


    More Information

    • Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
    • JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
    • VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
    • Constant Curvature waveguide for unprecedented array coherence.
    • Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
    • Array Configuration Selector permits "array shading".

    Technical Specification


    Power Rating 1750 Watts Peak875 Watts Continuous
    Frequency Range (-10dB) 57 Hz - 20 kHz
    Dimensions (H x W x D) 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
    Frequency Response 75 Hz - 20 kHz (+/-3db)
    Maximum SPL (1m) 136 dB SPL
    Coverage Pattern 100 x 15 nominal
    DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) LF: 750 Watts, HF: 125 Watts
    DPC-2 Output Section LF: Dual-Bridged Technology, Class D

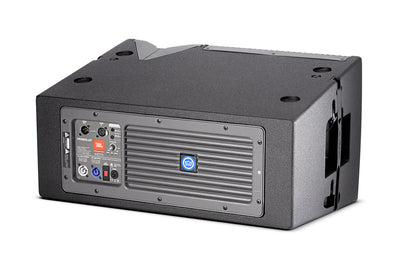

    Inputs XLR with loop through
    LF Driver 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
    HF Driver 3 x JBL 2408J, 38 mm (1.5 in)
    User Controls Input Attenuator (0-16 dB)
    Signal Processings DSP based, resident in Input Module
    AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60 Hz
    AC Input Connector Neutrik PowerCon (NAC 3MPA)
    AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
    AC Current Requirements 6A per system at 120V, 3A per system at 240V
    Enclosure 25/15 mm, 11-ply birch plywood
    Suspension / Mounting Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
    Finish Black DuraFlex finish
    Grille Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
    Net Weight (each) 24 kg (52 lb)
    Optional Accessories VRX-AF: Suspension array frame
    Outputs 1 x XLR
    System Type Constant Curvature 12" Two-Way Powered Line Array System
    Nominal Impedance NA - amplification is integrated
