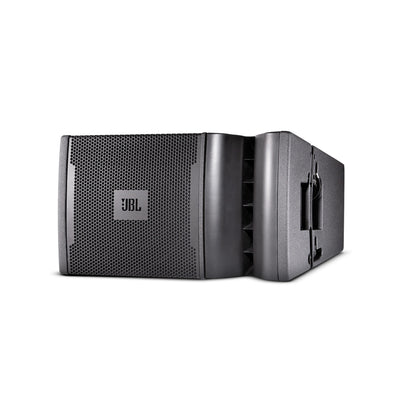

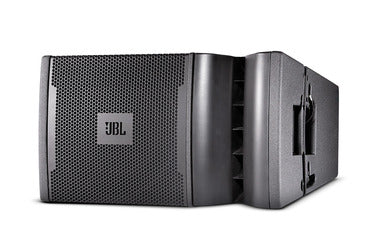

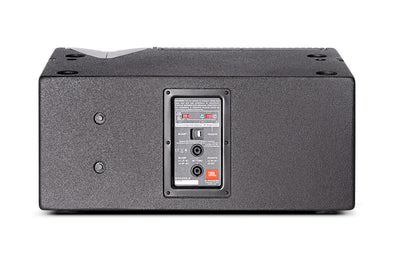

JBL VRX 932 LA 1

JBL VRX 932 LA 1

The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.

More Information

  • JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
  • VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
  • Constant Curvature waveguide for unprecedented array coherence.
  • Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
    tripod stand.
  • Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
  • Array Configuration Selector permits “array shading” in passive mode.

Technical Specification

  • Biampable: Bi-amp / passive, externally switchable
  • Crossover Frequency: 1200 Hz
  • Dimensions (L-W-H): 13.5 x 23.5 x 14.8 Inches
  • Dispersion: 100 x 15 nominal Degrees
  • Enclosure Materials: 18 mm, 11-ply birch plywood with Black DuraFlex" finish
  • Flying Hardware: Optional VRX932LA-AF line array frame kit
  • Frequency Response: 75 Hz - 20 Hz (+/-3db)
  • Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam
  • HF Driver: 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
  • Input Connectors:Neutrik Speakon NL-4 (x2)
  • LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
  • Max SPL: 130 dB
  • Nominal Impedance: 8 Ohms
  • Program Power Rating: Passive: 800 W Program / 1600 W Continuous / 3200 W Peak Watts
  • Sensitivity (1Watt/1m):  95 dB
  • Color: Black, White.
