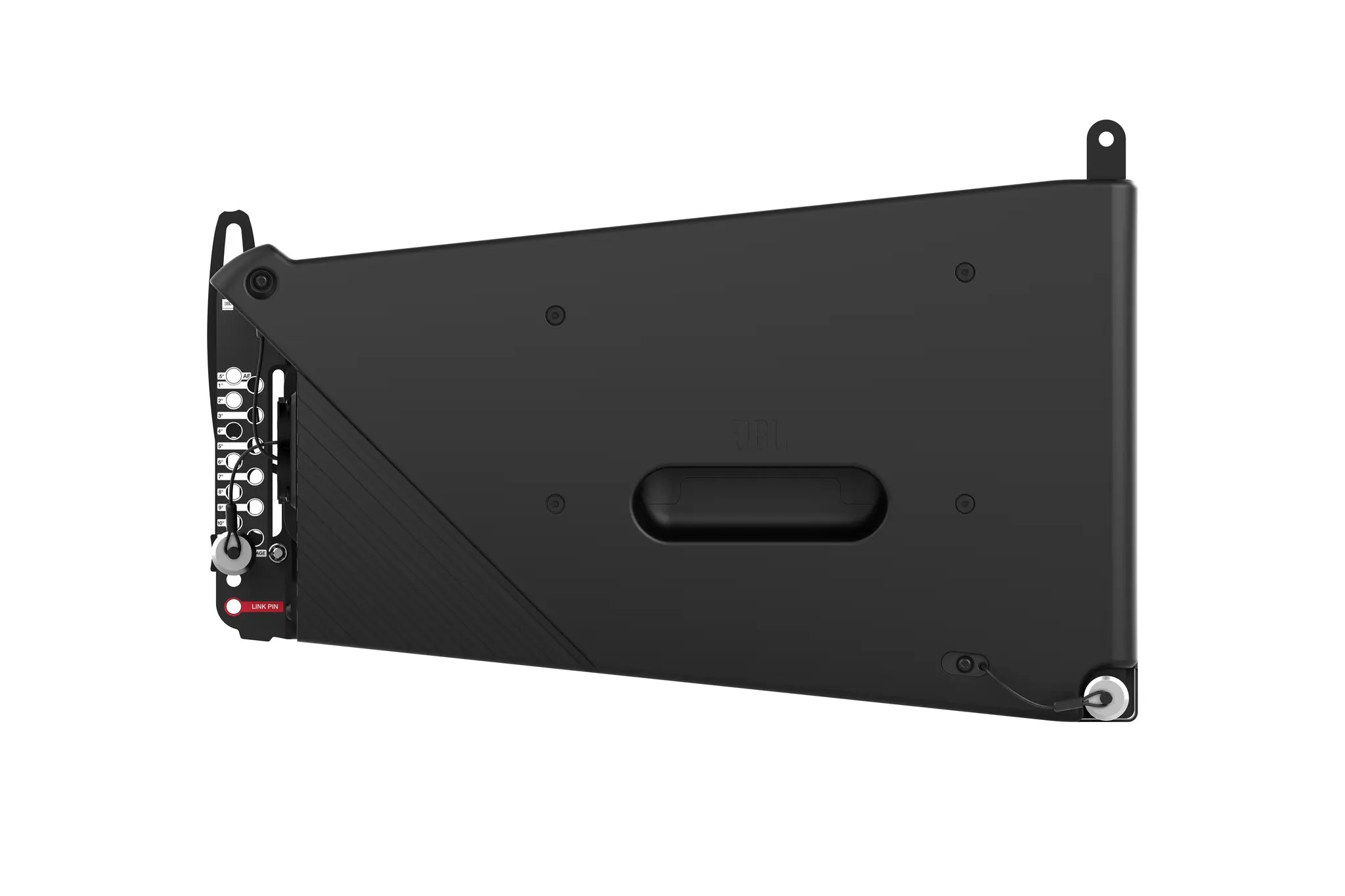

The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

More Information


  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
  • Built-in, passively cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Supports HARMAN HControl Ethernet
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides complete access to control features
  • Reinforced composite loudspeaker enclosures
  • Innovative three-point rigging systems.

Technical Specification

  • Powered:Yes
  • Power Configuration:Bi-amped
  • Channels:2-channels
  • LF Driver Size:2 x 10" woofer
  • HF Driver Size:1.5" exit neodymium compression driver, 3" voice coil
  • Total Power:600W, 880W Peak
  • Inputs:1 x XLR
  • Outputs:1 x XLR
  • Data I/O:2 x EtherCon
  • Frequency Range:53Hz-19khz (-10 dB)
  • Maximum Peak SPL:135dB SPL
  • Horizontal Coverage Angle:105 Degrees
  • Vertical Coverage Angle:Varies with configuration
  • Enclosure Material:Polypropylene
  • Mounting Options:Three-point, captive suspension plates
  • Power Source:1 x powerCON TRUE1 (in), 1 x powerCON TRUE1 (out/loop)
  • Height:28.2"
  • Width:20.5"
  • Depth:12"
  • Weight:59 lbs.
