JBL SRX 835
JBL SRX 835
JBL SRX 835
JBL SRX 835

JBL SRX 835

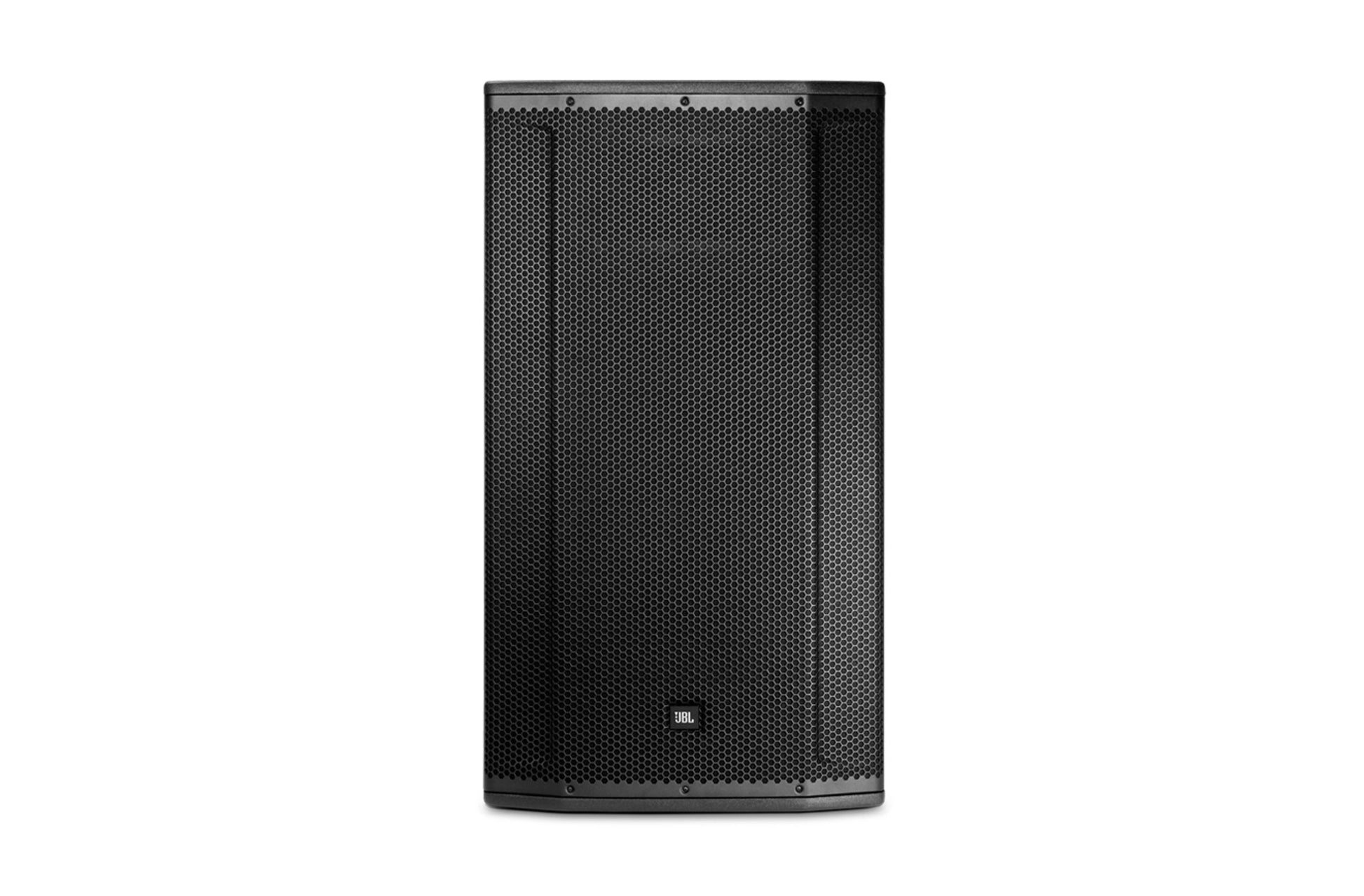

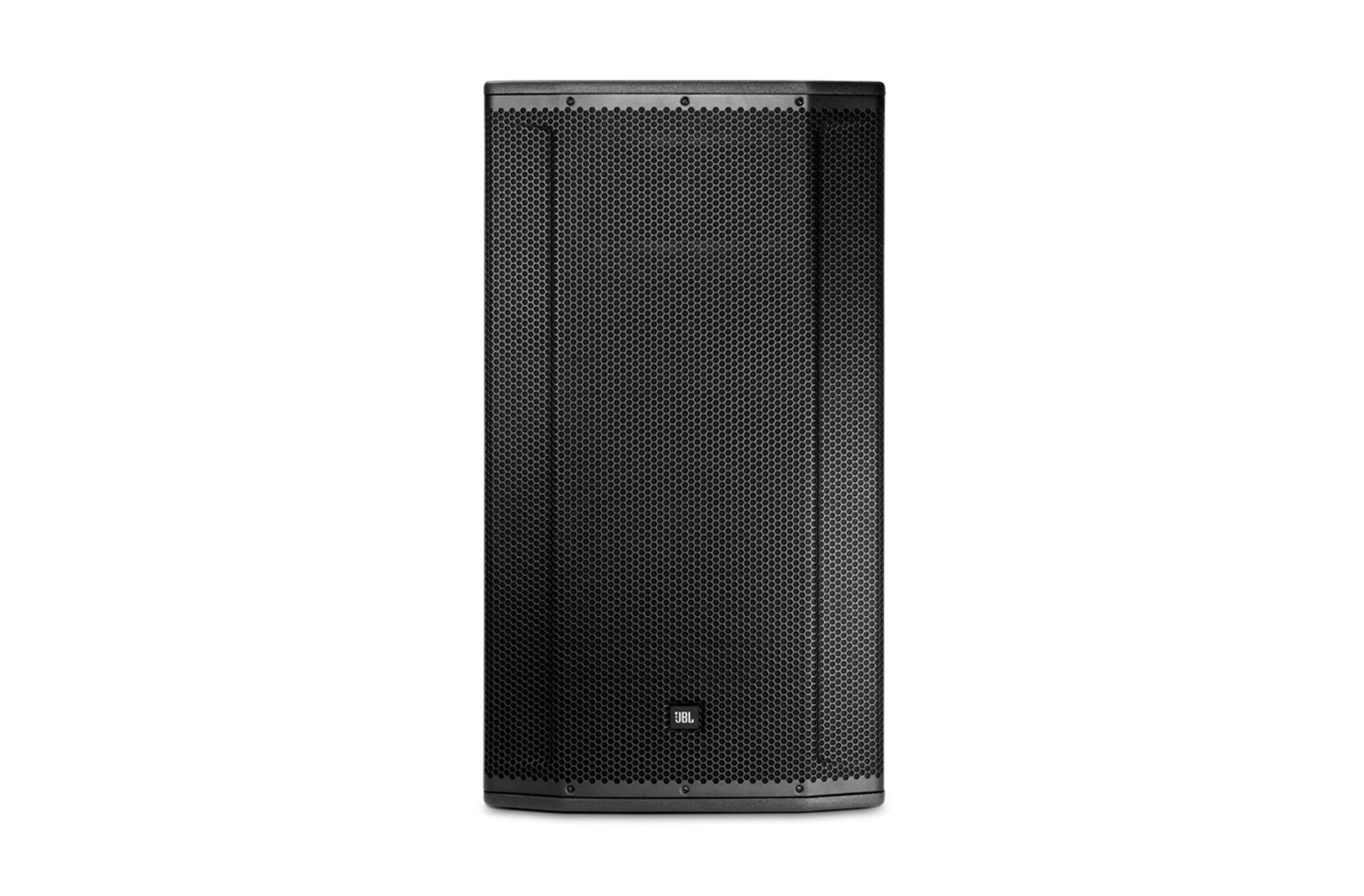

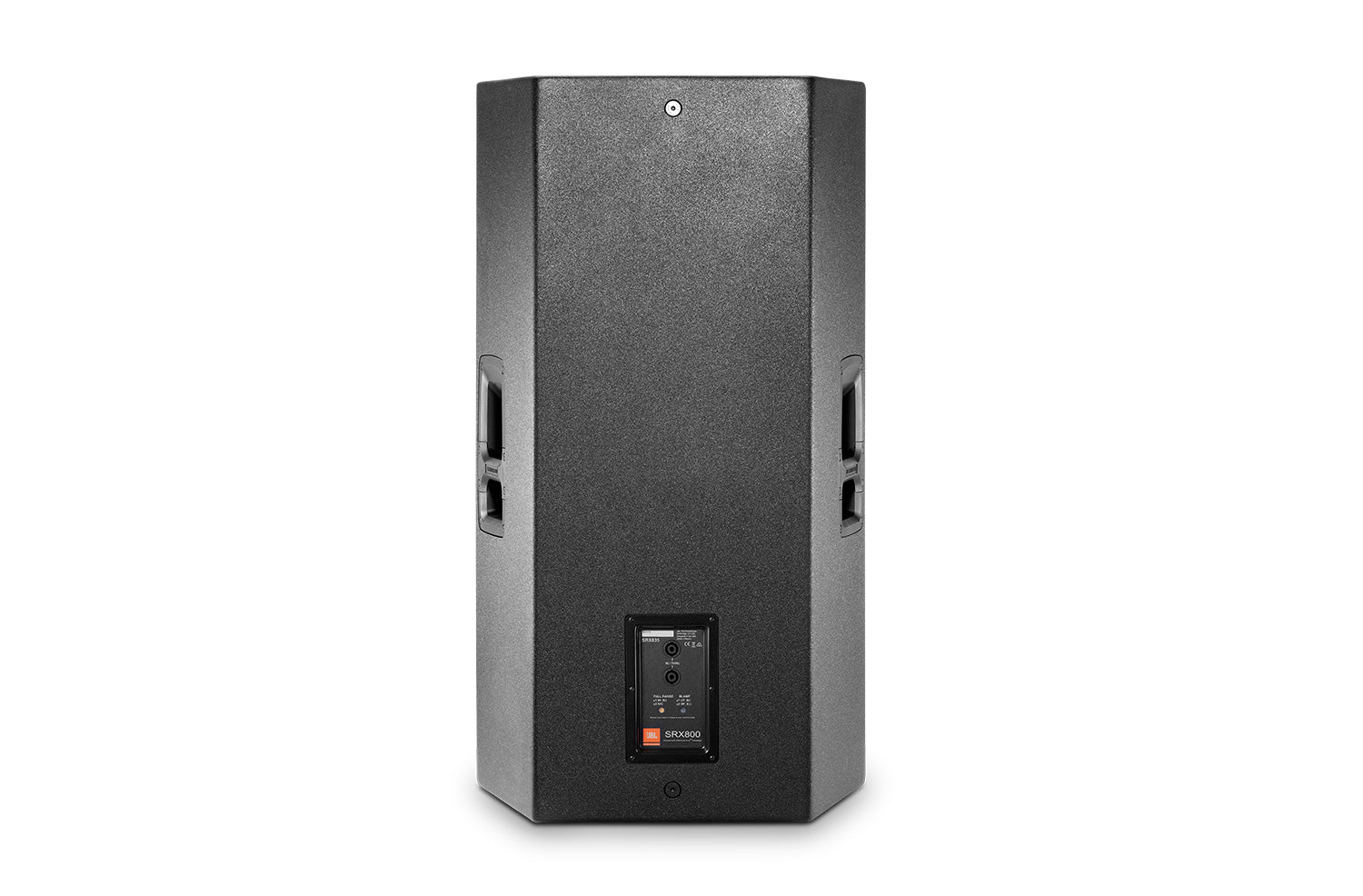

SRX835 is a three-way full range speaker with a 15” woofer made for use as a medium duty main PA, or rear or side fill. Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Enquire Now

Product details

More Information
  • Premium JBL Transducers

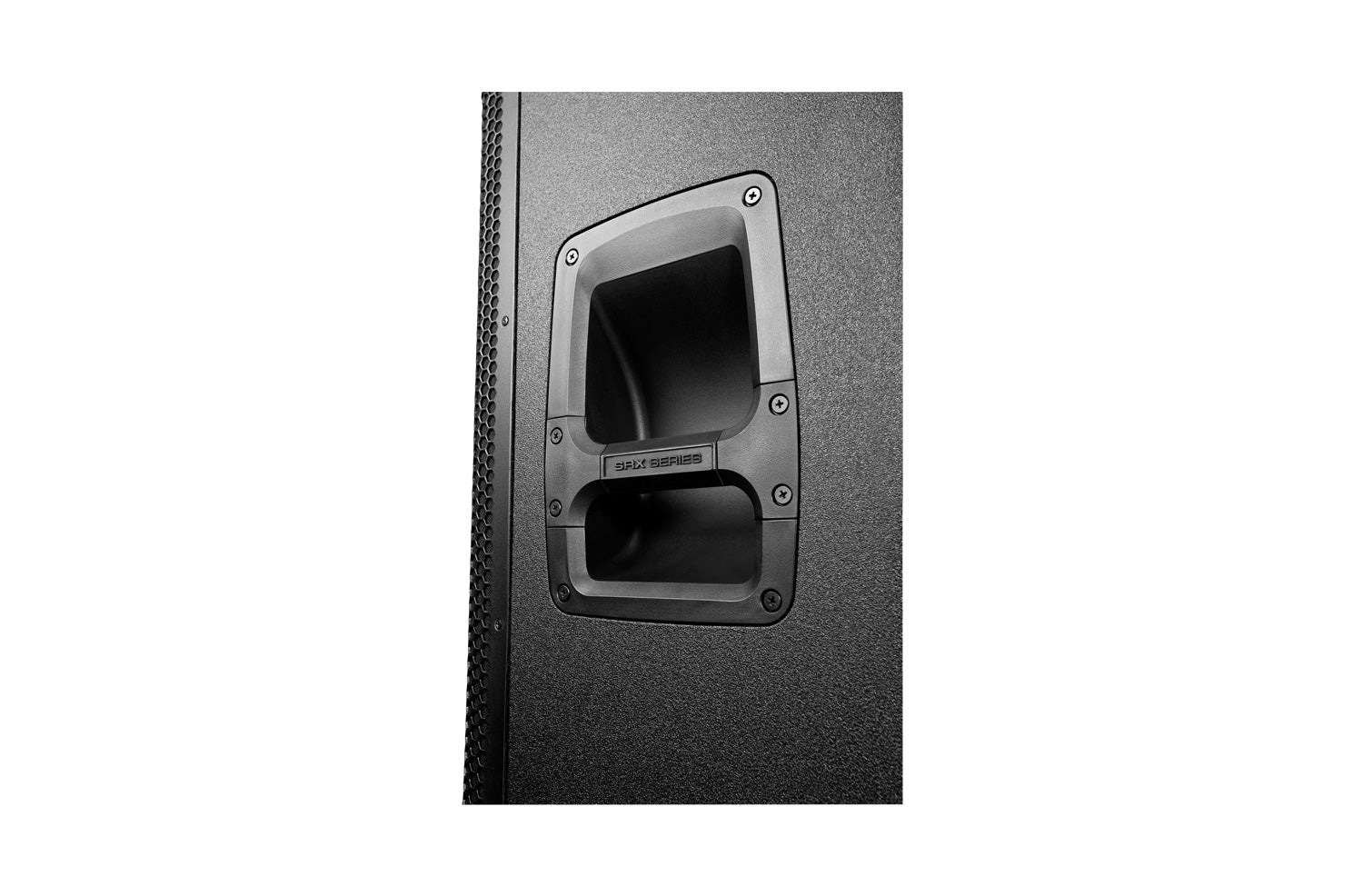

  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 32Hz-20kHz
  • Frequency Response: 43Hz-20kHz
  • Max SPL: 130dB (Peak)
  • Coverage Pattern: 60x40
  • Amplification options: Passive/Bi-Amp
Technical Specifications

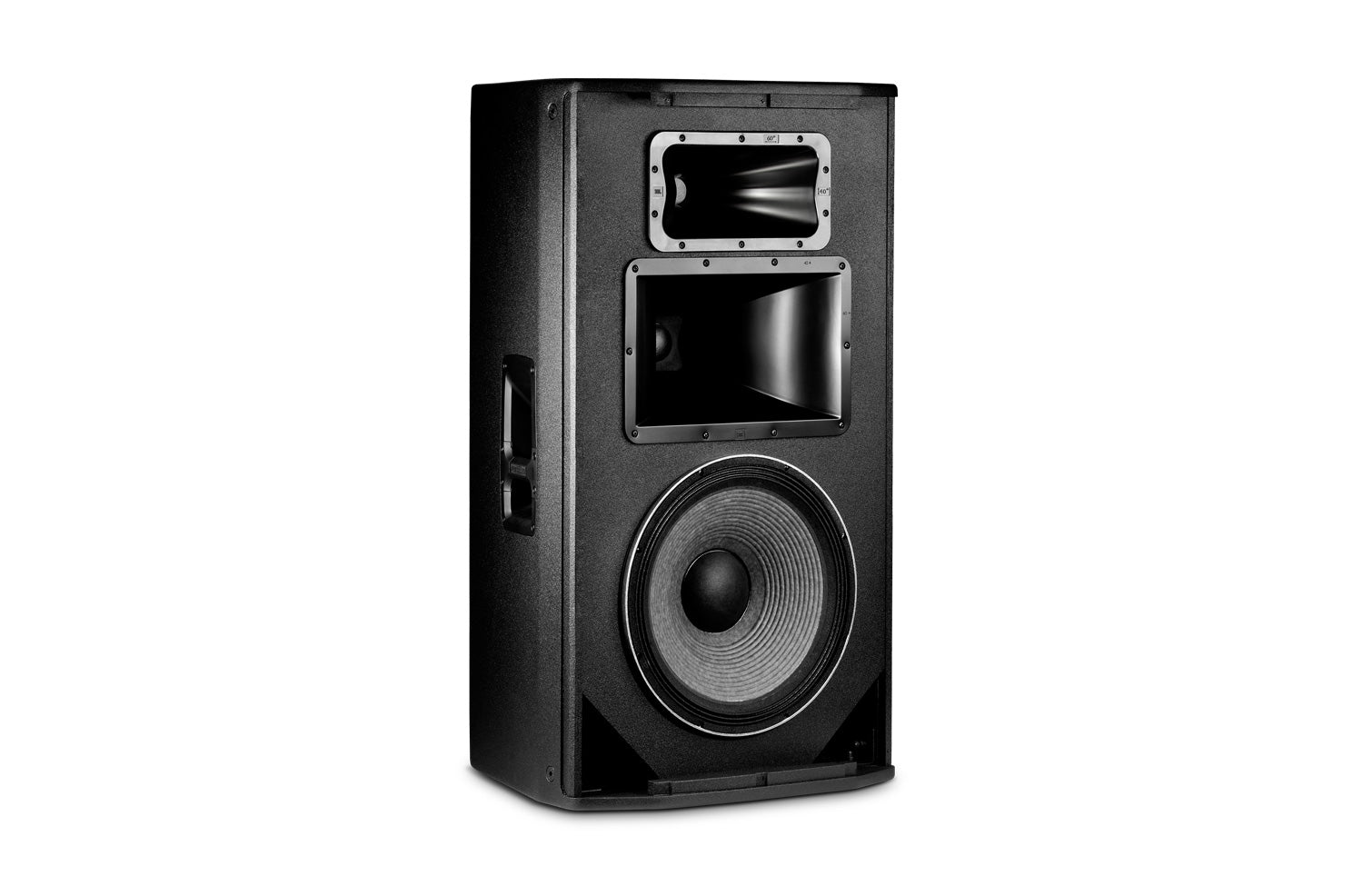

Speaker configuration

  • Active/passive: Passive
  • Type: Full-range
  • LF driver: 15" 2275F
  • MF driver: 6.5" 2107H
  • HF driver: 1.5" 2432H


Power capacity

  • 8 Ohms program/peak: 1600W/32000W
  • 4 Ohms program/peak:


Audio

  • Frequency response: 43Hz - 17kHz
  • Coverage pattern: 60° x 40°
  • Max SPL: 137dB


Inputs

  • TS: Not applicable
  • RCA: Not applicable
  • SPEAKON: 1
  • Output/thru
  • TS: Not applicable
  • RCA: Not applicable
  • SPEAKON: 1


Enclosure

  • Cabinet material: 18mm plywood
  • Width: 21.4"
  • Height: 38.75"
  • Depth: 18.75"
  • Weight: 95 lb.
