JBL SRX 818
JBL SRX 818
More Information
More Information
Technical Specification
Technical Specification
System Type | Passive 18”, subwoofer system |
Maximum SPL Output | 123dB (Continuous), 129dB (Peak) |
Frequency Range (-10dB) | 28hz - 150hz |
Frequency Response (-3 dB) | 45hz - 150hz |
Sensitivity | 95dB |
System Power Rating | 2400W Peak , 1200W Program, 600W Continuous |
Nominal Impedance | 8 Ohm |
Inputs | NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable) |
Operational Modes | Passive |
LF Driver | 2279H |
Crossover Frequency | 80hz |
Enclosure | 18mm Duraflex coated plywood |
Suspension/Mounting | M20 Threaded Pole Mount |
Casters | Accepts JBL WK-4S Kit |
Handles | 4 |
Finish | Obsidian Duraflex™ finish |
Grille | Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing |
Dimensions (H x W x D) | 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in) |
Weight | 78.0 lbs (35.4kg) |
Shipping Weight | 88 lbs (40.2kg) |

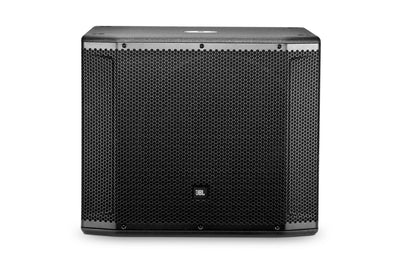

![JBL SRX 818](http://develectronics.com/cdn/shop/products/srx818sp_front_z_vert_medium_8ffa5b01-4956-425e-98c7-f58405e7b4be.jpg?v=1679935617&width=1445)

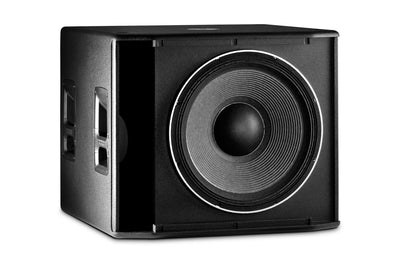

![JBL SRX 818](http://develectronics.com/cdn/shop/products/srx818sp_angle_no_grill_z_original_4d4b14f4-f015-4f02-8c5e-38f3dbcc78d3.jpg?v=1679935629&width=1445)
![JBL SRX 818](http://develectronics.com/cdn/shop/products/srx818s_passive_back_z_original.jpg?v=1679935640&width=1445)
