JBL SRX 815
JBL SRX 815

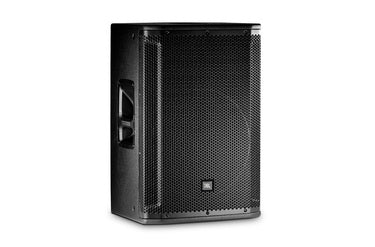

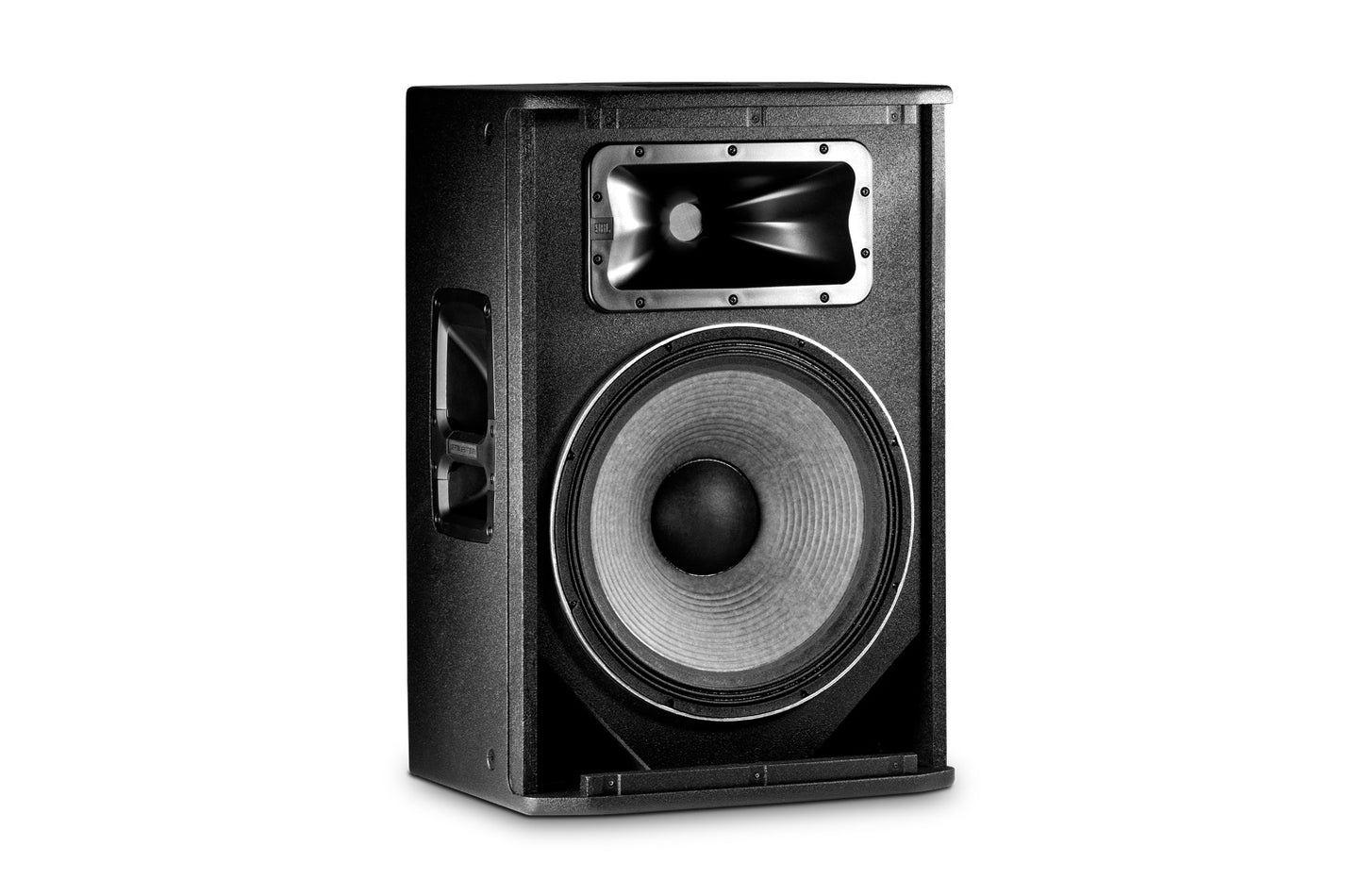

SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD.
More Information
More Information
Technical Specification
Technical Specification
| System Type | Passive 12”, two-way, bass-reflex |
| Maximum SPL Output | 123dB (Continuous), 129dB (Peak) |
| Frequency Range (-10dB) | 41hz - 20khz |
| Frequency Response (-3 dB) | 57hz - 20khz |
| Sensitivity | 94dB |
| System Power Rating | 3200W Peak, 1600W Program, 800W Continuous |
| Nominal Impedance | 8 Ohm |
| Inputs | NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable) |
| Operational Modes | Passive/Bi-Amp |
| LF Driver | 2272H |
| HF Driver | 2432H |
| Coverage Pattern | 90 x 50 |
| Crossover Frequency | 1.9khz |
| Enclosure | 18mm Duraflex coated plywood |
| Monitor Angle | 50° |
| Suspension/Mounting | Dual 36mm pole socket, 12 x M10 Suspension points |
| Handles | 3 |
| Finish | Obsidian Duraflex™ finish |
| Grille | Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing |
| Dimensions (H x W x D) | 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in) |
| Weight | 55.0 lbs (24.9kg) |
| Shipping Weight | 65 lbs (29.3kg) |
