JBL CONTROL 52
JBL CONTROL 52

JBL CONTROL 52

Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System

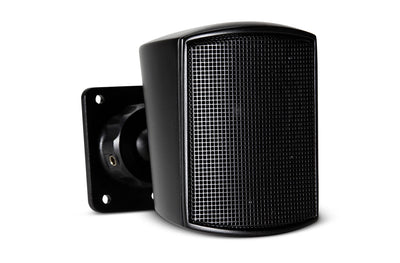

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

Enquire Now

Product details

More Information
  • Stylish, unobtrusive design fits into a wide variety of decors
  • Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
  • 16 ohms impedance
  • Wall-mount brackets included
Technical Specifications

Frequency Range (-10dB) – 140 Hz – 20 kHz

Frequency Response (±3 dB) – 180 Hz – 17 kHz

Power Rating – 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs) 15 Watts Continuous Pink Noise (100 hrs)

Sensitivity – 85 dB (4.0V/1m = 1W), 82 dB (2.83V, 1m)

Coverage Angle – Omnidirectional

Maximum SPL (1m) – 94 dB average, 100 dB peak

Impedance – 16 ohms

Drivers – 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.

Input Connectors – Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)

Enclosure – High impact polystyrene, painted zinc-plated metal grille.

Dimensions (H x W x D) – Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in) Wall bracket: 51 mm (2.0 in)

Net Weight (each) – 0.7 kg (1.5 lbs)

Shipping Weight – 0.8 kg (1.8 lbs)

Included Accessories – Wall bracket (both speaker and wall parts), 2-pin locking connector.

Grille – Zinc-plated steel

Mounting Hardware – Included wall swivel ball bracket

Optional Accessories – Wall-mount ball-type bracket
