JBL CONTROL 5 M

• Sensitivity: 89 dB SPL, 1 W, 1 m (3.3 ft)
• High power handling (175 W pink noise) with integral protection circuit network.
• Molded enclosure with shielded magnet structure.
• Components: •165 mm (6.5 in) low frequency loudspeaker. •25 mm (1 in) pure titanium dome tweeter.

Frequency Response (±3 dB) – 75 Hz to 20 kHz

Power Capacity – 175 W

Sensitivity – 89 dB SPL, 1 W, 1 m (3.3 ft)

Directivity Factor (Q) – 2.8

Directivity Index (DI) – 4.5

Impedance – 4 ohms

Crossover Frequency – 3 kHz

Polarity – Positive Voltage to + terminal causes outward low frequency cone motion

Enclosure – Polypropylene structural foam

Colors – Black or white

Dimensions (H x W x D) – 387 mm x 251 mm x 229 mm (15.25 in x 9.875 in x 9 in)

Net Weight (each) – 4.5 kg (10 lbs.)

Shipping Weight (pair) – 11 kg (24 lbs.)

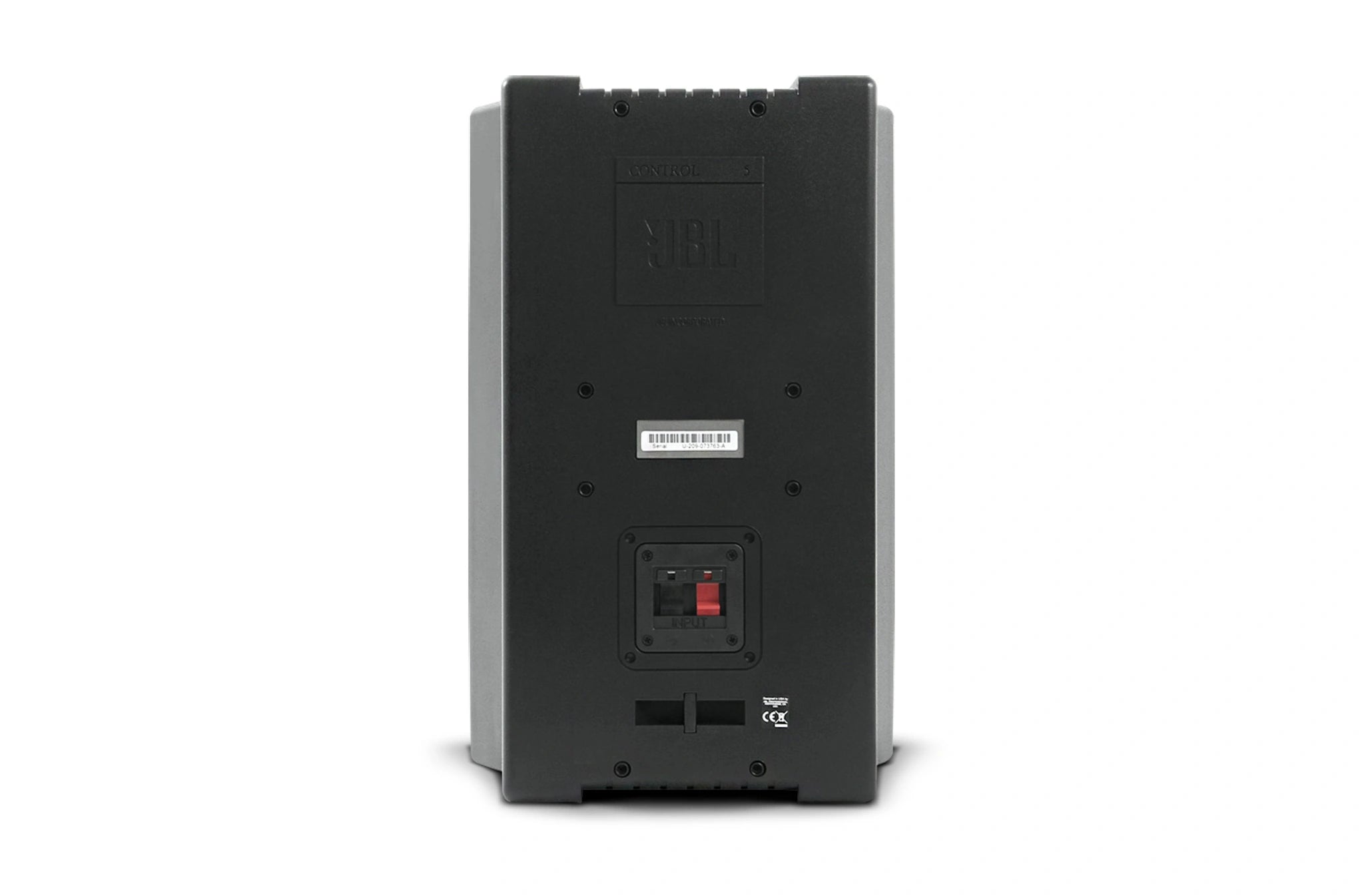

Note – Molded of dense polypropylene. Accessory attachment points on rear of enclosure are 1/4 x 20 threaded brass bushings

Maximum SPL (1m) – 111 dB continuous, 117 dB peak

Drivers – LF Driver: 165 mm (6.5 in)

Drivers – HF Driver: 25 mm (1 in)

Input Connectors – Spring-loaded terminals

Grille – Zinc-plated steel

Mounting Hardware – Mounting points (no bracket included)

LF Driver – 6.5 in (165 mm)

Amplifier Power Rating – 175 W
