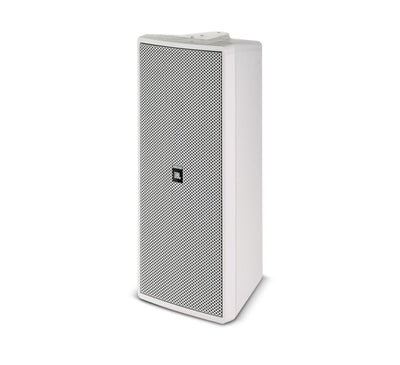

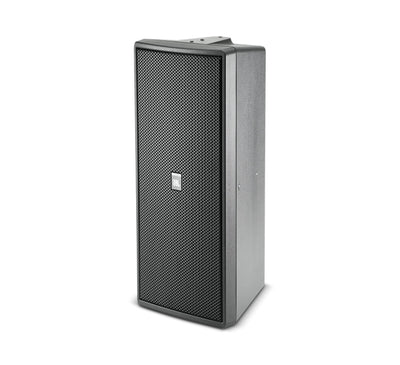

JBL Control 29AV-1

JBL Control 29AV-1

Premium JBL Sound - Indoors or Outdoors!

The JBL Control 29AV offers up an excellent mid-sized loudspeaker solution - perfect for when you need a decent-sized full range speaker, but something that's not quite as large as many installed-speaker solutions. The 2-way Control 29AV is designed for indoor/outdoor use and features an 8" woofer with a weather-resistant kevlar cone and a 1-inch compression driver. A rotatable high-frequency horn lets you use the Control 29AV in both horizontal and vertical positions. InvisiBall mounting hardware is included with each JBL Control 29AV.

More Information

JBL Control 29AV Indoor/Outdoor Loudspeaker Features:

  • Extended bandwidth, extremely smooth frequency response.
  • 110-degree x 85-degree HF coverage, rotatable horn.
  • 110-watt transformer for 70V or 100V lines, with 8 ohm thru.
  • SonicGuard overload protection.
  • 200 mm (8") Kevlar cone woofer, 25 mm (1") titanium diaphragm compression driver.
  • Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
  • Sealed input panel cover and screw-down input terminals.
  • Frequency Range (-10 dB): 40Hz to 19kHz
  • Frequency Response (+/-3 dB): 45Hz to 18kHz
  • 100 Hr Power Capacity: 300 Watts Continuous Program Power
  • 150 Watts Continuous Pink Noise
  • Maximum SPL @ 1m: Short-Term: 120 dB; Long-Term: 114 dB
  • Nominal Sensitivity: 91 dB, 1W @ 1 m (3.3 ft)
  • Nominal Coverage Angle: 110-degree H x 85-degree V, rotatable
  • Directivity Factor (Q): 7.2, averaged 500Hz to 16kHz
  • Directivity Index (DI): 8.6dB, averaged 500Hz to 16kHz
  • Nominal Impedance: 8 ohms
  • Minimum Impedance: 6.3 ohms @ 230Hz
  • Crossover Type: 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
  • Transformer Taps: 70V: 110W, 55W, 28W & 14W; 100V: 110W, 55W, & 28W, Thru Position: 8 ohm nominal

The JBL Control 29AV is the perfect loudspeaker for mid-sized indoor/outdoor use!

Technical Specification

Tech Specs

  • Powered:No
  • Quantity:Single
  • LF Driver Size:1 x 8"
  • HF Driver Size:1 x 1"
  • Power Rating:300W
  • Impedance:8 ohms
  • Frequency Range:40Hz-19kHz (-10dB)
  • Crossover Frequency:2.5kHz
  • Maximum Peak SPL:118dB
  • Horizontal Coverage Angle:110 Degrees
  • Vertical Coverage Angle:85 Degrees
  • Enclosure Material:High Impact Polystyrene
  • Mounting Options:Wall Mount (hardware included), Suspended (optional U-bracket)
  • Height:20.5"
  • Width:12"
  • Depth:10.9"
  • Weight:26.8 lbs.
