JBL AWC82

JBL AWC82

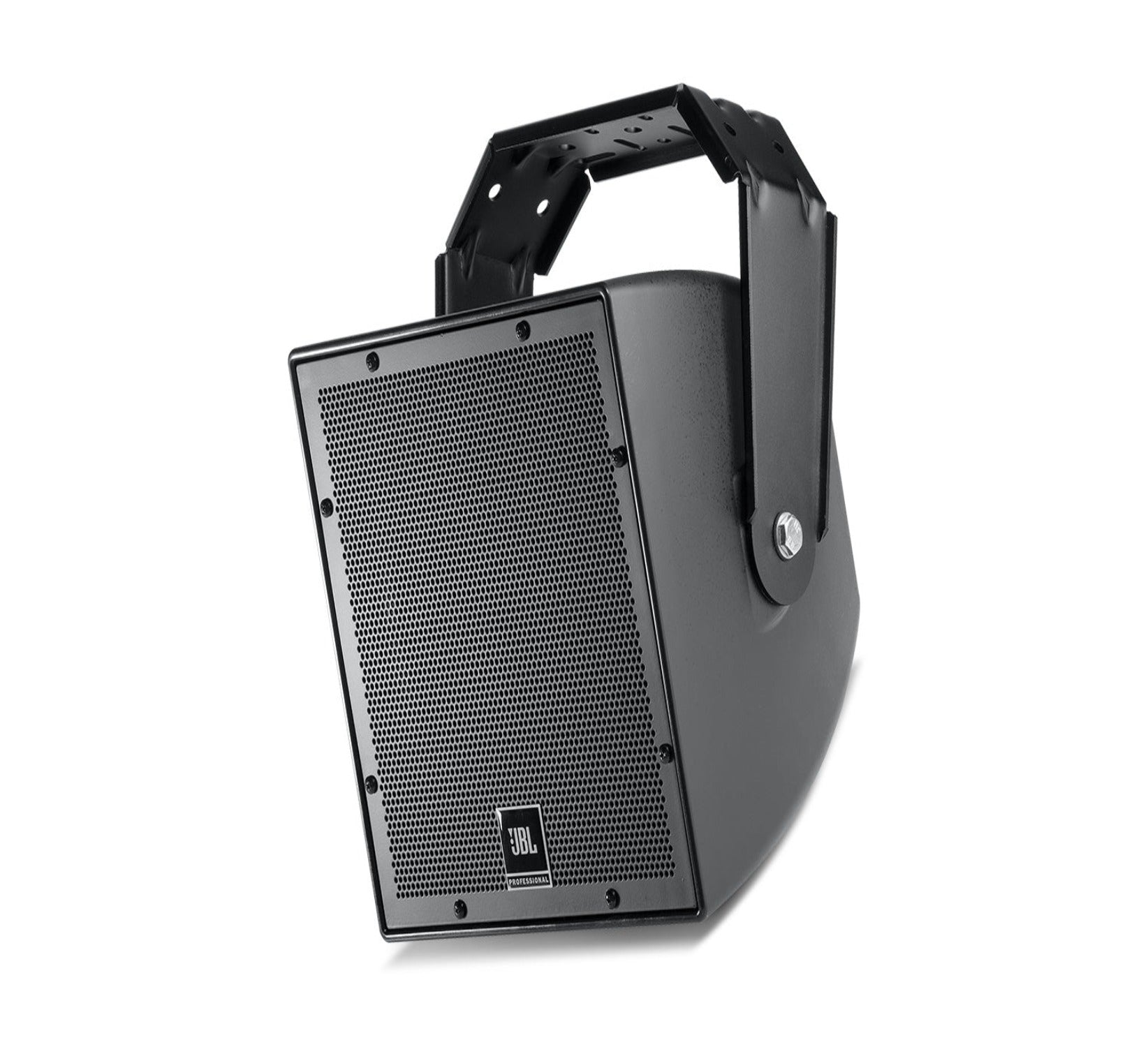

The black JBL AWC82 is a single all-weather passive coaxial loudspeaker designed for high-output, full-range sound reinforcement in various indoor and outdoor applications such as sports facilities, stadiums, fairgrounds, cruise ships, and background music/paging systems.

More Information

Features

  • Highly weather-resistant IP56 rating
  • Consistent 120° x 120° broadband pattern control

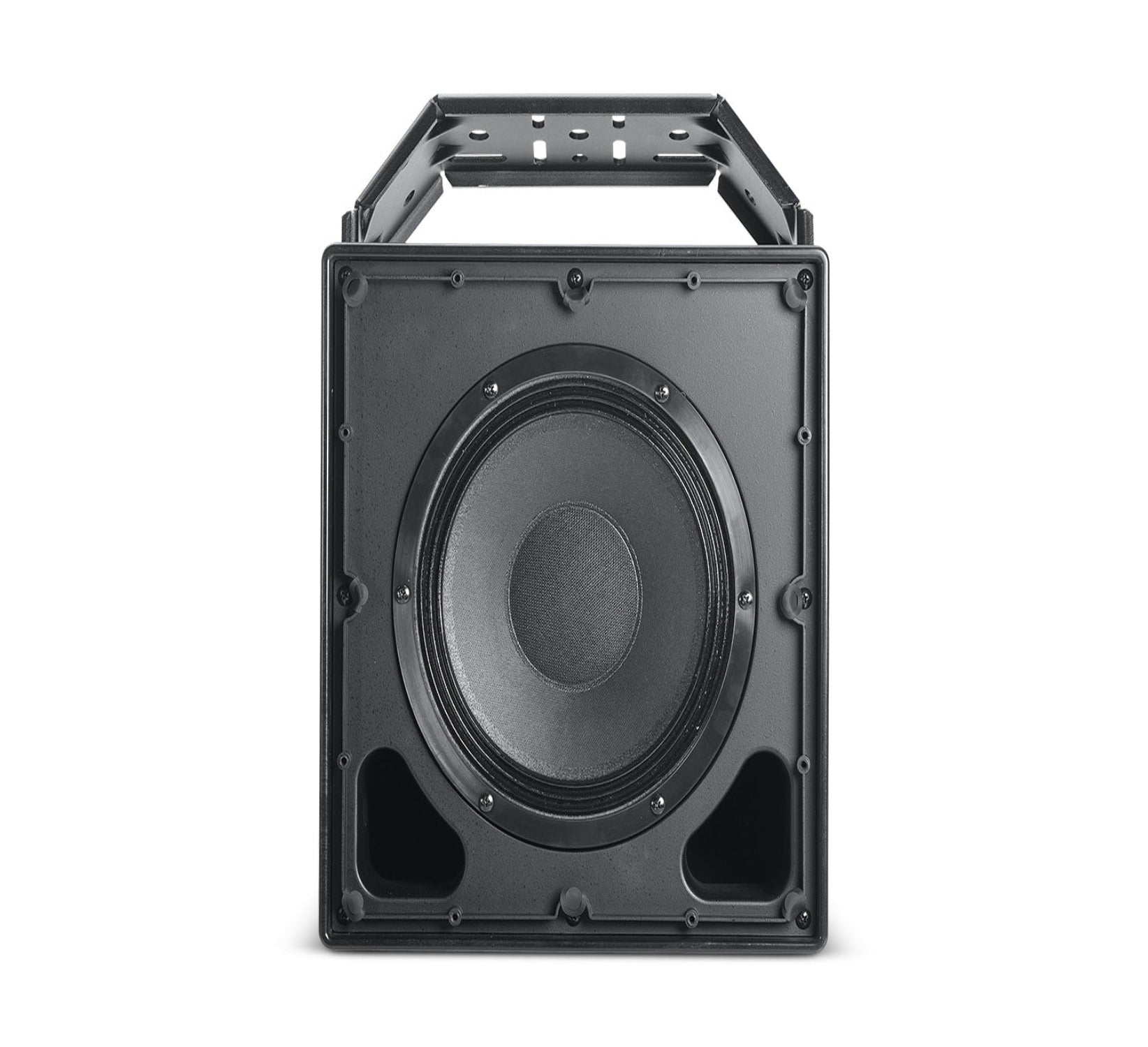

  • Components: • 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil. • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
  • Extraordinary clarity for speech, with extended frequency response for music.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
  • High-power passive crossover network.
  • Overload protection
  • 80 Hz – 20 kHz frequency response.

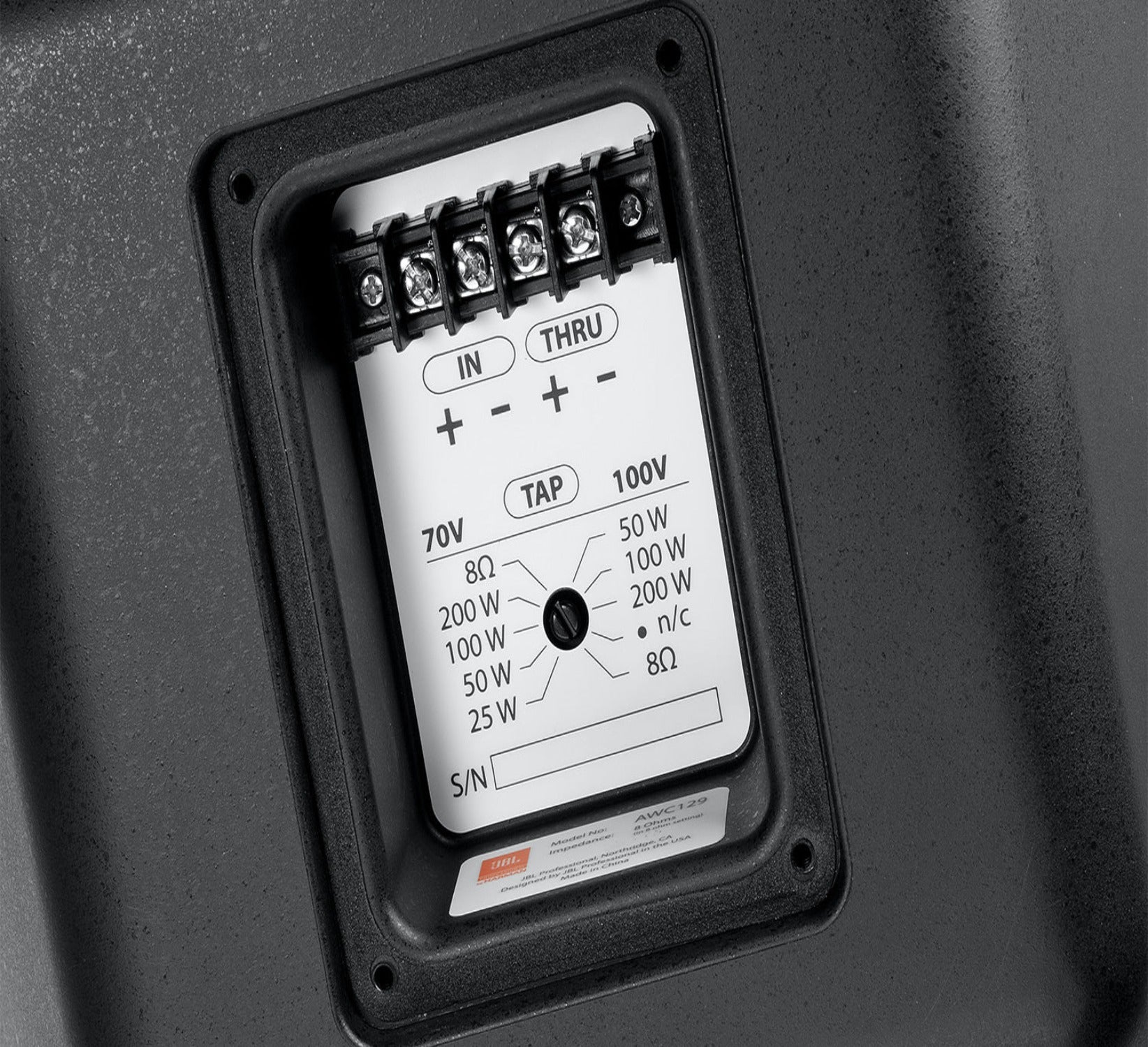

  • 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.

Technical Specification

Tech Specs

  • Powered:No
  • Power Configuration:2-way
  • Quantity:Single
  • LF Driver Size:8" Kevlar-reinforced cone
  • HF Driver Size:1" HF diaphragm and voice coil diameter
  • Total Power:250W
  • Impedance:8 ohms
  • Inputs:1 x Barrier strip
  • Frequency Range:80Hz-20kHz (-10dB)
  • Maximum Peak SPL:124dB SPL
  • Horizontal Coverage Angle:120 Degrees
  • Vertical Coverage Angle:120 Degrees
  • Enclosure Material:ABS with Glass enclosure
  • Mounting Options:Surface mount
  • Height:12"
  • Width:11.8"
  • Depth:11.8"
  • Weight:25.5 lbs.
