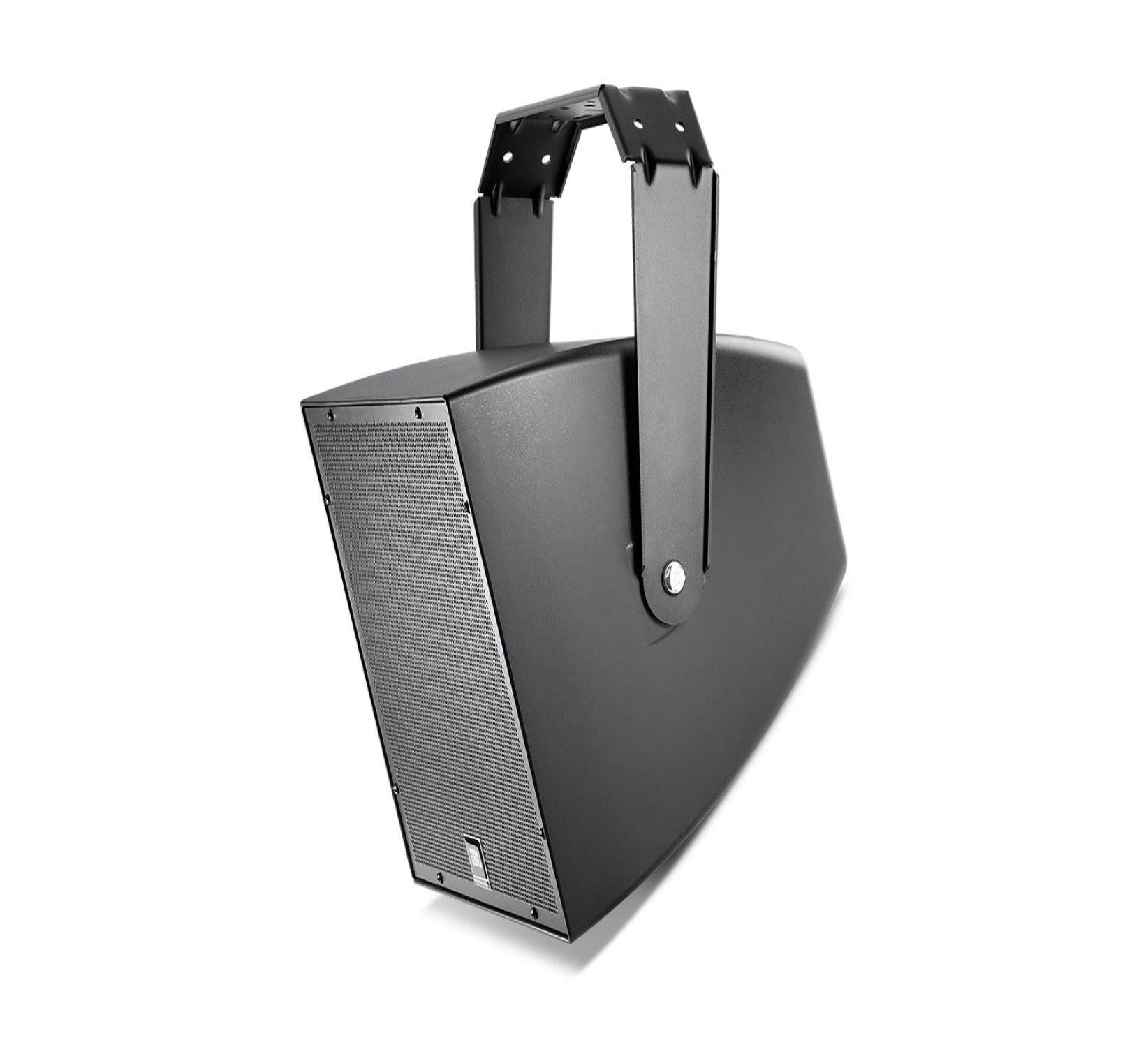

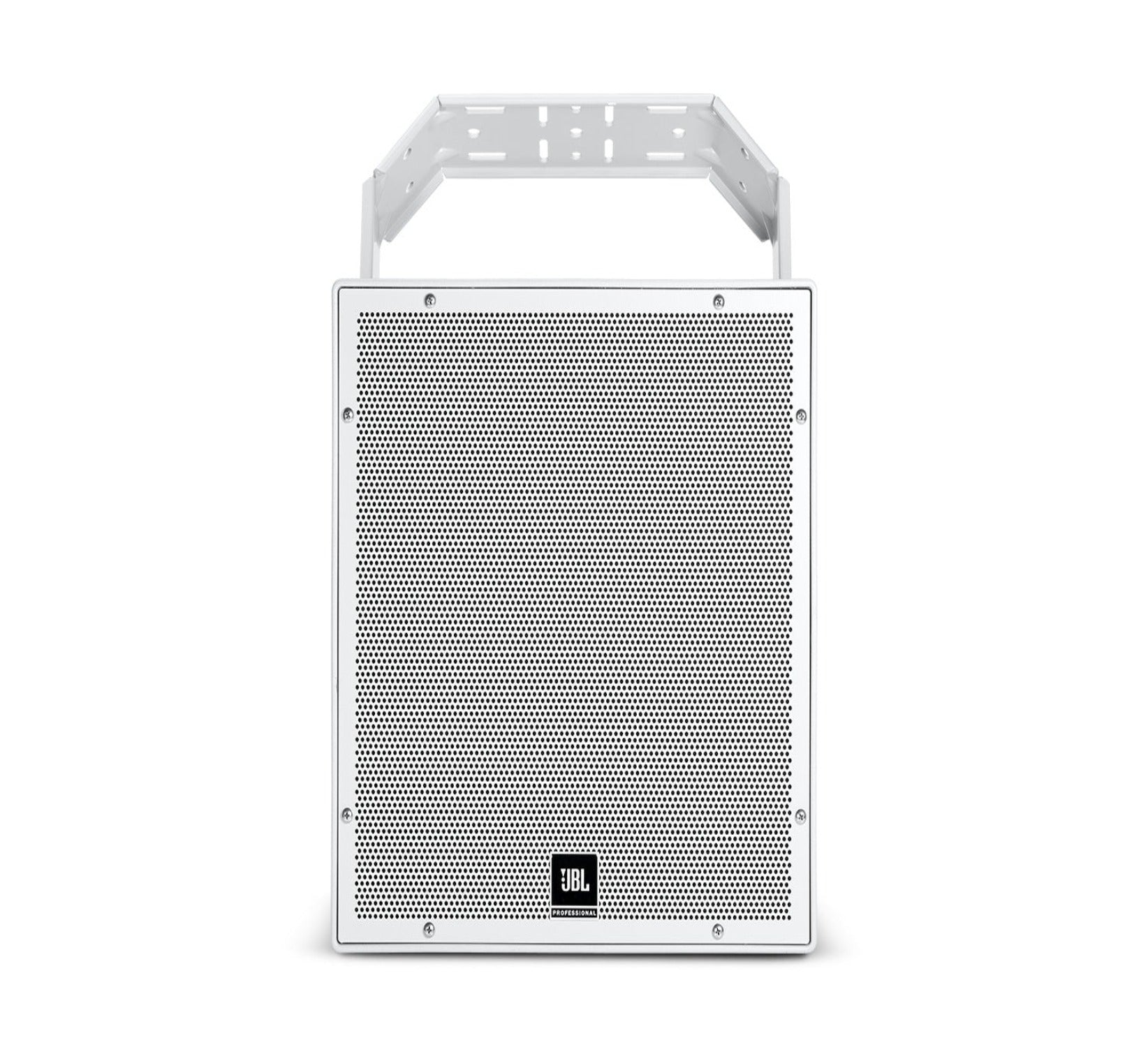

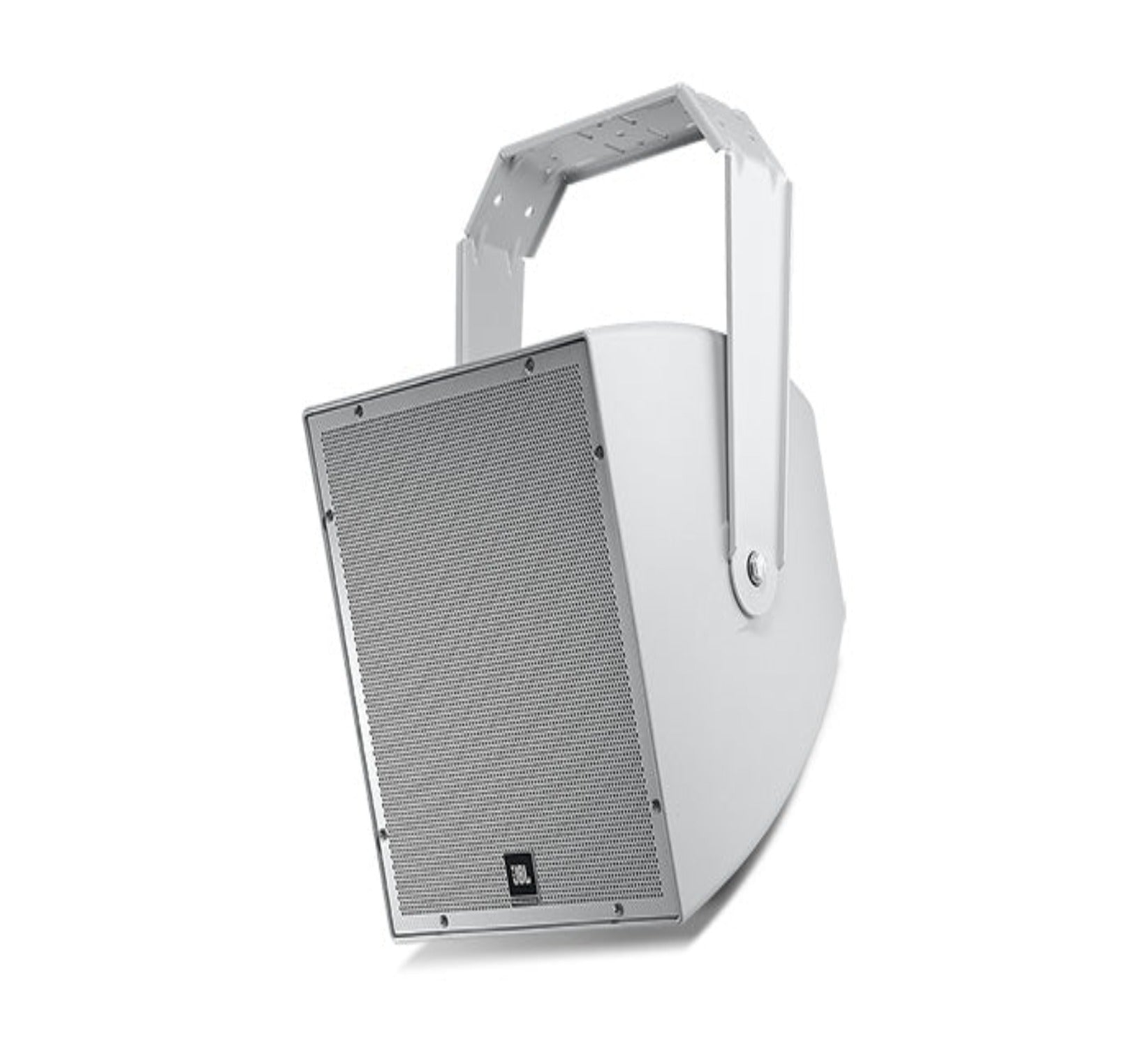

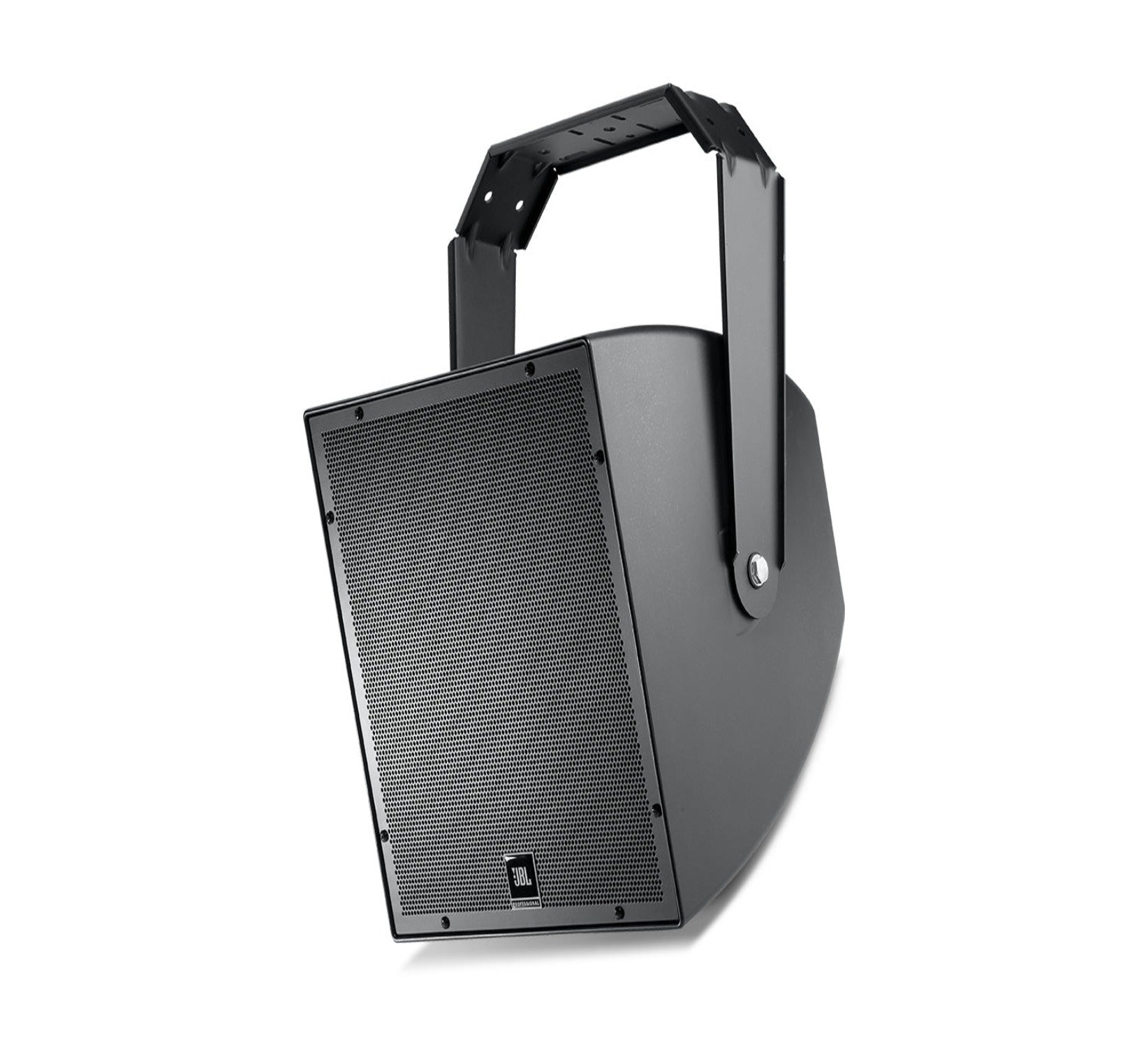

JBL AWC129
JBL AWC129
JBL AWC129
JBL AWC129
JBL AWC129

JBL AWC129

All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Enquire Now

Product details

More Information

Features

  • Highly weather-resistant IP56 rating
  • Consistent 90° x 90° broadband pattern control
  • Components:
    • 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
    • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
  • Extraordinary clarity for speech, with extended frequency response for music.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
  • High-power passive crossover network.
  • Overload protection
  • 55 Hz – 20 kHz frequency response.
  • 200 Watt 70V/100V multi-tap (built-in transformer)
    direct 8Ω low-impedance.
Technical Specifications

Tech Specs

  • Powered:No
  • Power Configuration:2-way
  • LF Driver Size:12" Woofer with Weather Treatment
  • HF Driver Size:Coaixial 1" HF Compression Driver
  • Power Rating:250W (100 hours), 400W (2 hours)
  • Total Power:1000W Peak (100 hours), 1600W Peak (2 hours)
  • Impedance:8 ohms
  • Inputs:Barrier Strip Terminal (bare wire / spade lugs)
  • Frequency Range:55Hz-20kHz (-10 dB)
  • Crossover Frequency:18 dB/octave @ 1.5kHz
  • Maximum Peak SPL:122 dB SPL @ 8 ohms, 119dB SPL @ 70V/100V
  • Horizontal Coverage Angle:90 Degrees
  • Vertical Coverage Angle:90 Degrees
  • Enclosure Material:IP56 Weather Resistant, ABS with Glass Enclosure, Corrosion Resistant Zinc Coated Steel Grille
  • Mounting Options:2 x M10 (fine thread) Points, U-bracket, M6 Secondary Safety Point
  • Height:17.5"
  • Width:15.8"
  • Depth:15.8" (cabinet), 18.5" (with gland nut)
  • Weight:35 lbs. (cabinet), 41.5 lbs. (with bracket)
