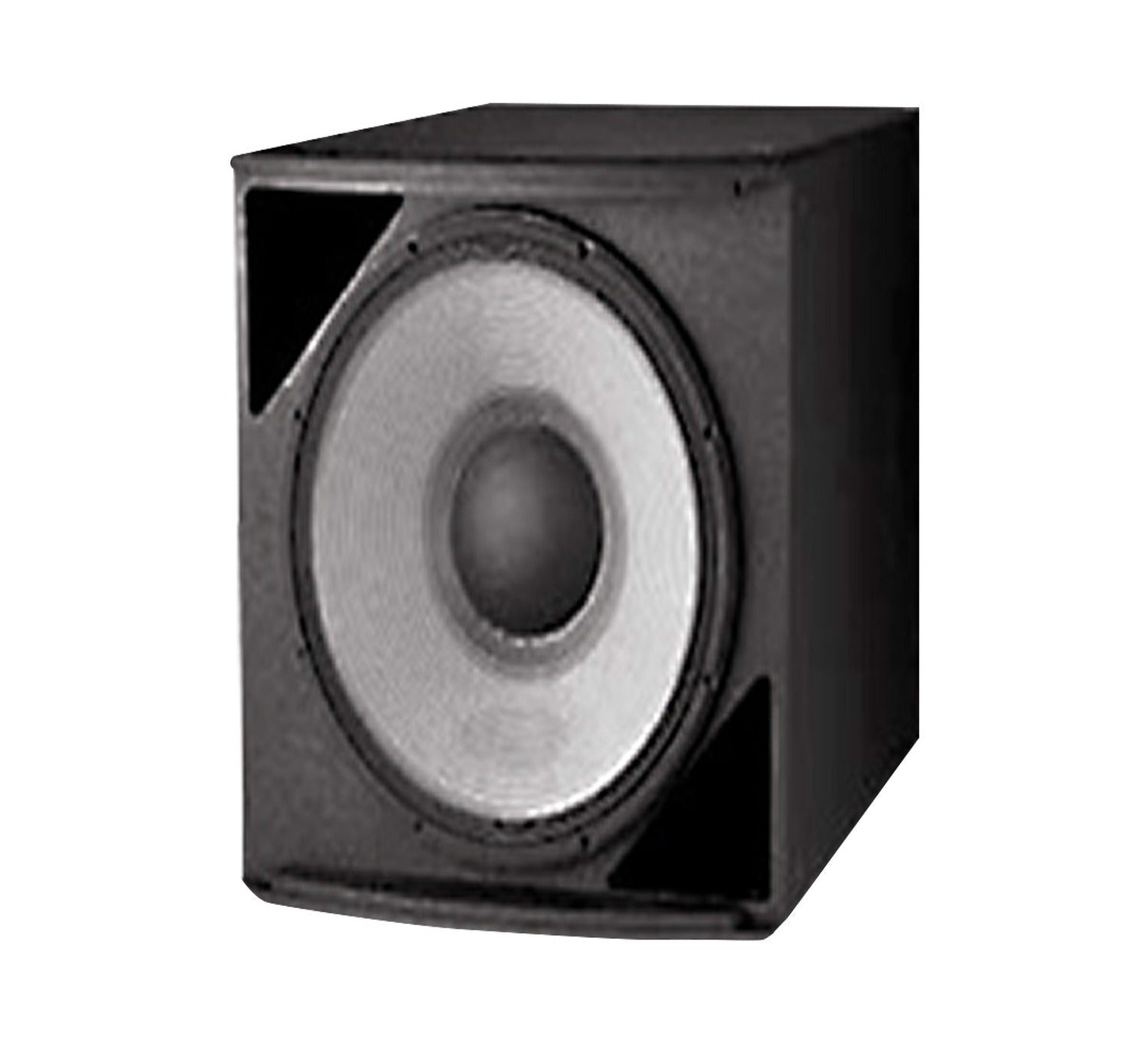

JBL ASB6118

JBL ASB6118

High Power Subwoofer 1 x 18" 2242H SVG™ Driver

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.

More Information

Features

  • Large vent area for high output.
  • FIR Tuning Set Matches Phase Profile to Full-Range Models
  • For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Technical Specification



Specifications
Frequency Range (-10dB) 28 Hz – 1 kHz
Frequency Response (±3 dB) 35 Hz – 1 kHz
Transducer Power Rating (AES) 1200 W (4800 W peak), 2 hrs
System Power Rating 800 W (3200 W peak), 100 hrs
Maximum SPL (1m) 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak)100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity (1w @ 1m) 30 Hz – 100 Hz: 98 dB100 Hz – 500 Hz: 98 dB
Nominal Impedance 8 ohms
LF Driver 1 x JBL 2242H 460 mm (18 in) SVG™ driver with 100 mm (4 in) voice coil
Nominal LF Driver Impedance 8 ohms
Enclosure Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529.
Net Weight (each) 98 lbs. (44.5 kgs)
