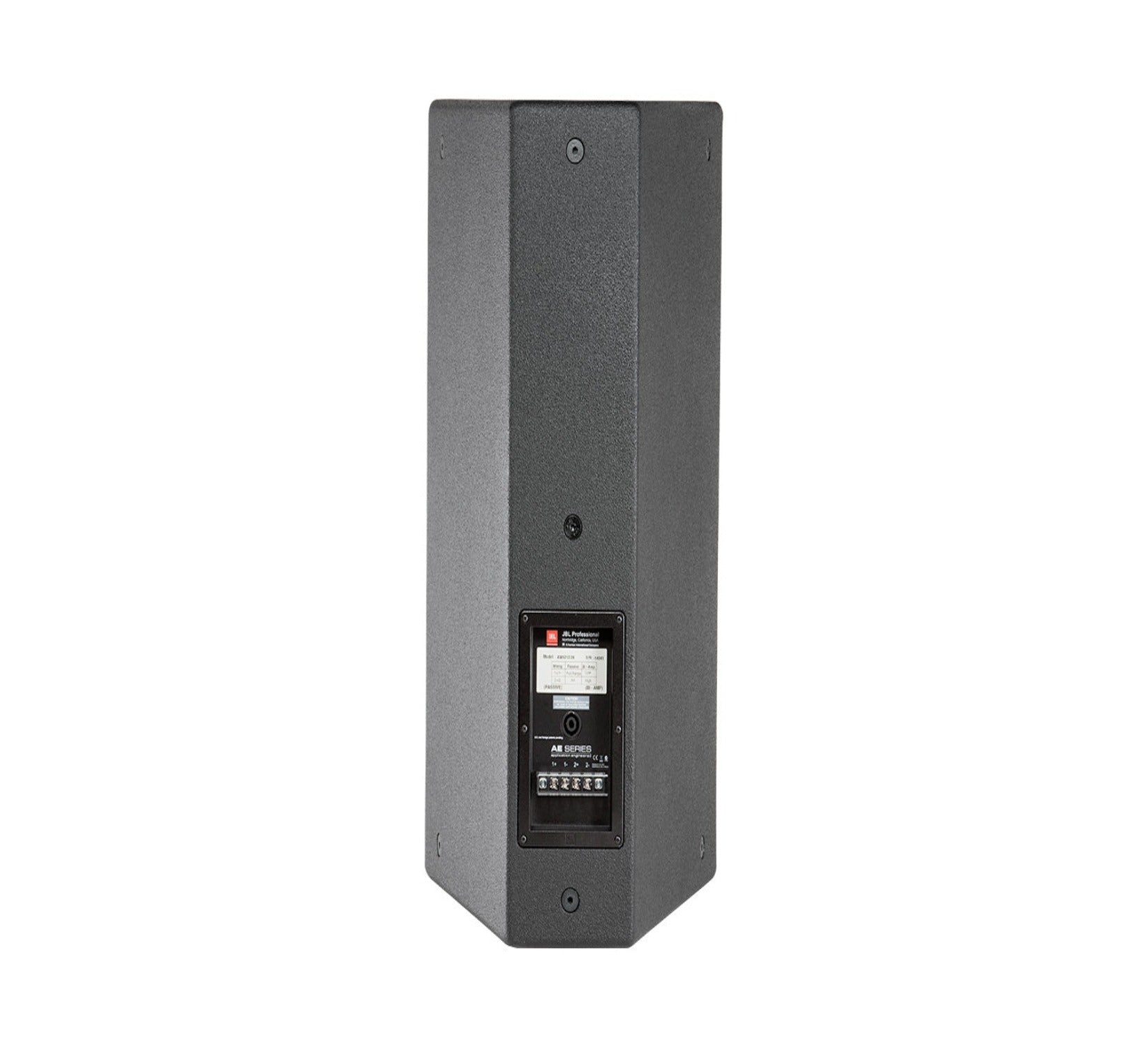

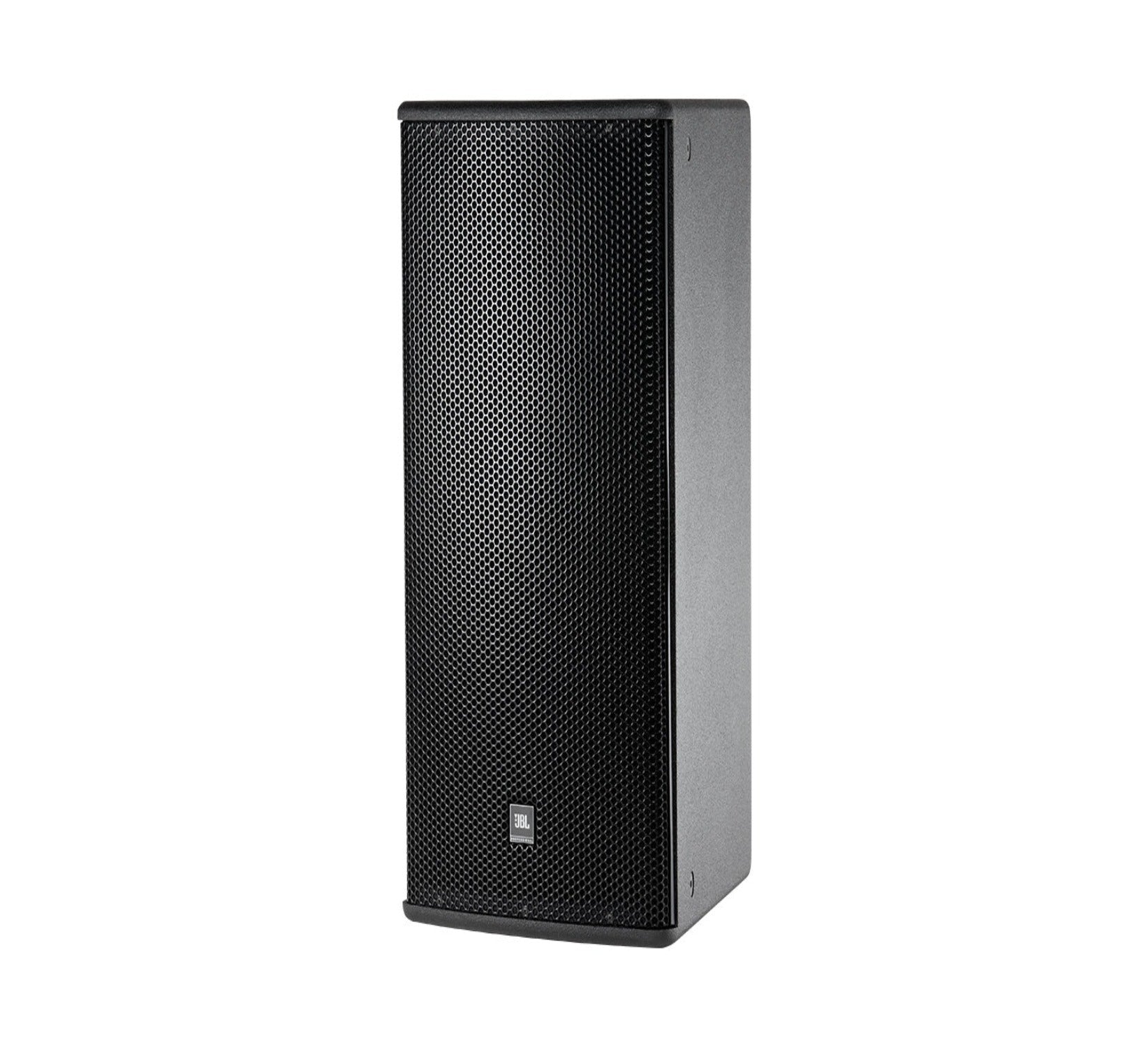

JBL AM7212/64

JBL AM7212/64

High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn

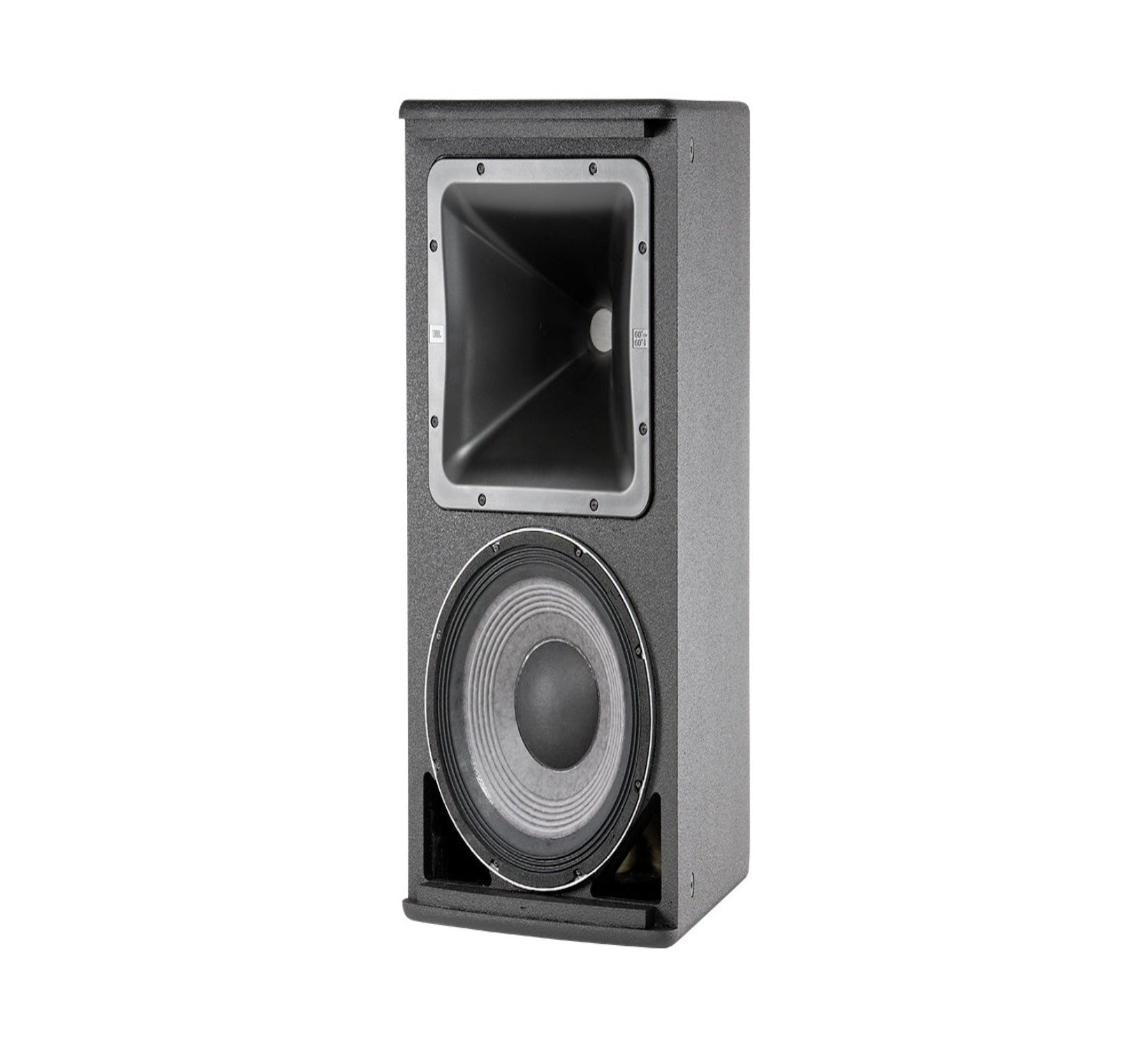

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

More Information


  • 60° x 40° Coverage
  • 2262H Differential Drive® Low- Frequency Driver
  • 2432H High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Available in Black, White and WRC/WRX finishes

Technical Specification

Tech Specs

  • Powered:No
  • Power Configuration:Bi-amped
  • LF Driver Size:12" Woofer
  • HF Driver Size:3" Tweeter
  • Impedance:8 ohms
  • Inputs:1 x SpeakON, Bare Wire Terminal
  • Frequency Range:36Hz-20kHz (-10dB)
  • Crossover Frequency:1800 Hz
  • Maximum Peak SPL:129dB SPL
  • Horizontal Coverage Angle:60°
  • Vertical Coverage Angle:40°
  • Enclosure Material:11-ply Finnish Birch
  • Height:28"
  • Width:14.5"
  • Depth:18"
  • Weight:51 lbs.
