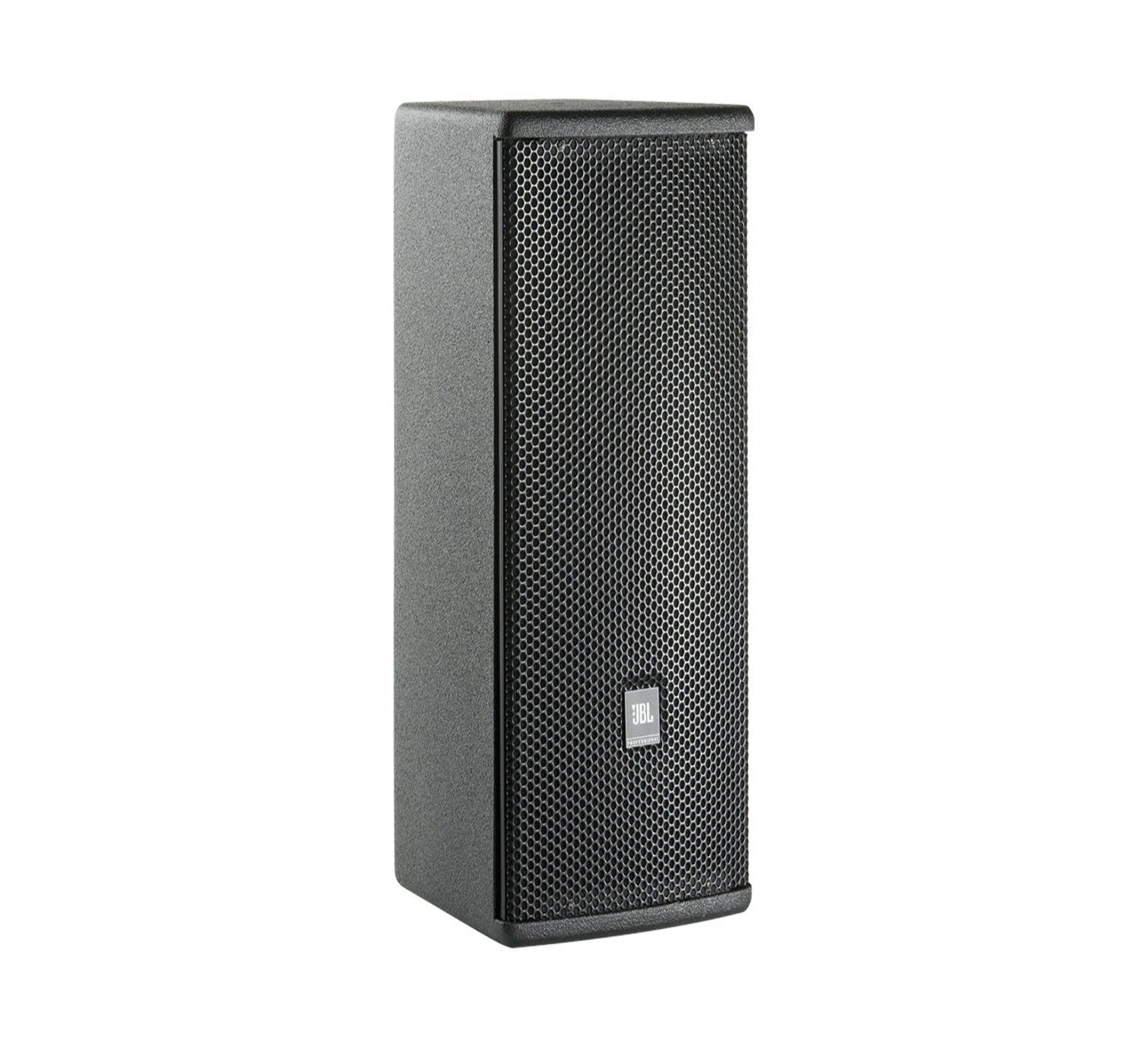

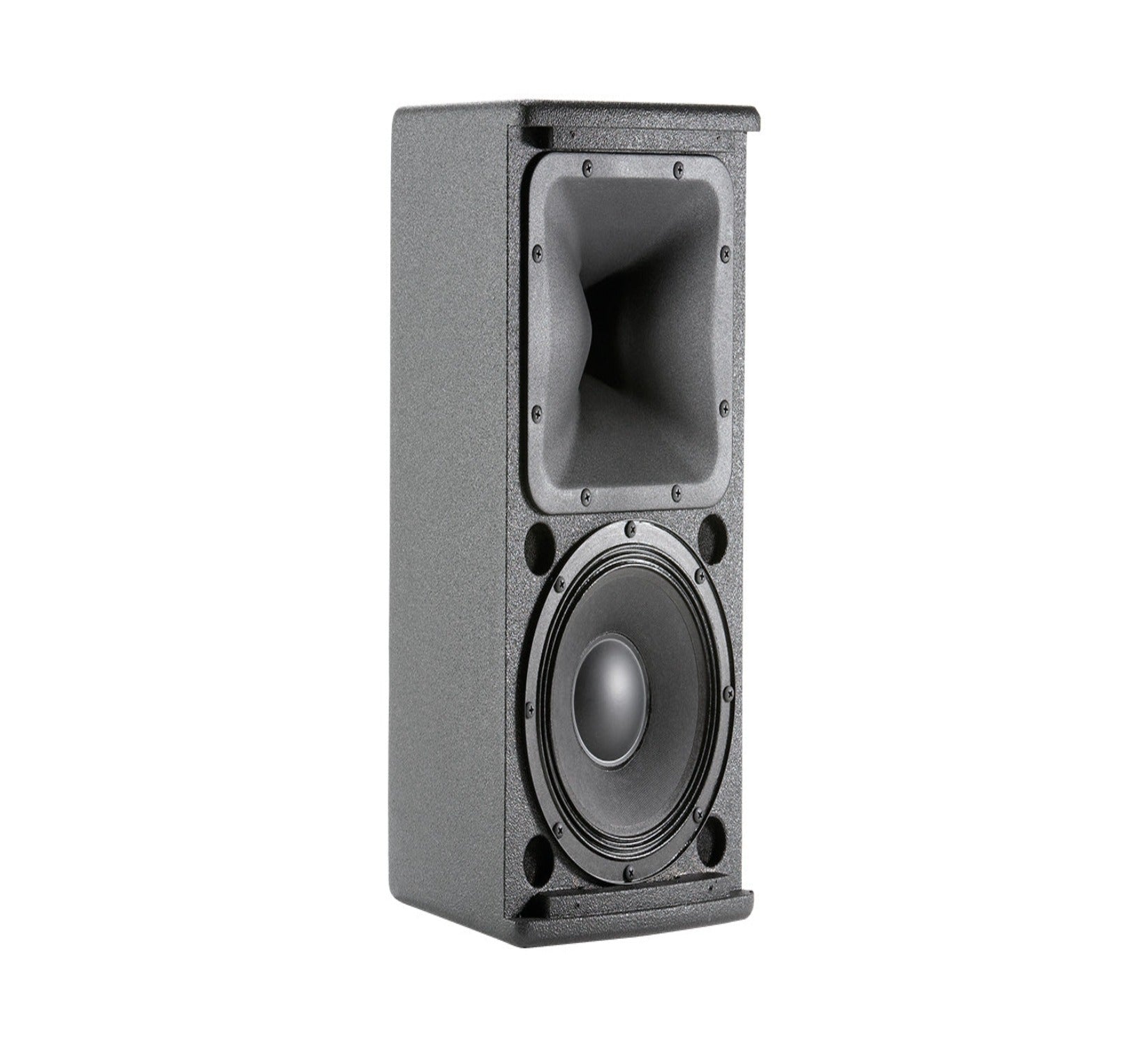

JBL AC18/26

JBL AC18/26

Compact 2-way Loudspeaker with 1 x 8” LF

High output, 2-way loudspeaker systems combining flexibility with high fidelity

More Information


  • 1” Exit Compression Driver Coverage PT™ Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 500W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory

Technical Specification

Tech Specs

  • Powered:No
  • LF Driver Size:1 x 8"
  • HF Driver Size:1 x 1"
  • Power Rating:500W
  • Total Power:1000W
  • Impedance:8 ohms
  • Inputs:2 x speakON, Barrier Strip
  • Frequency Range:52 Hz-20 kHz (-10dB)
  • Crossover Frequency:1.6kHz
  • Maximum Peak SPL:116dB
  • Horizontal Coverage Angle:120 Degrees
  • Vertical Coverage Angle:60 Degrees
  • Enclosure Material:Plywood
  • Mounting Options:6 x M8 Fly Points, Stand Mount, Wall Mount (4 x M6 points for optional U-bracket/OmniMount/Multimount)
  • Height:18.5"
  • Width:9.4"
  • Depth:10"
  • Weight:28.2 lbs.
