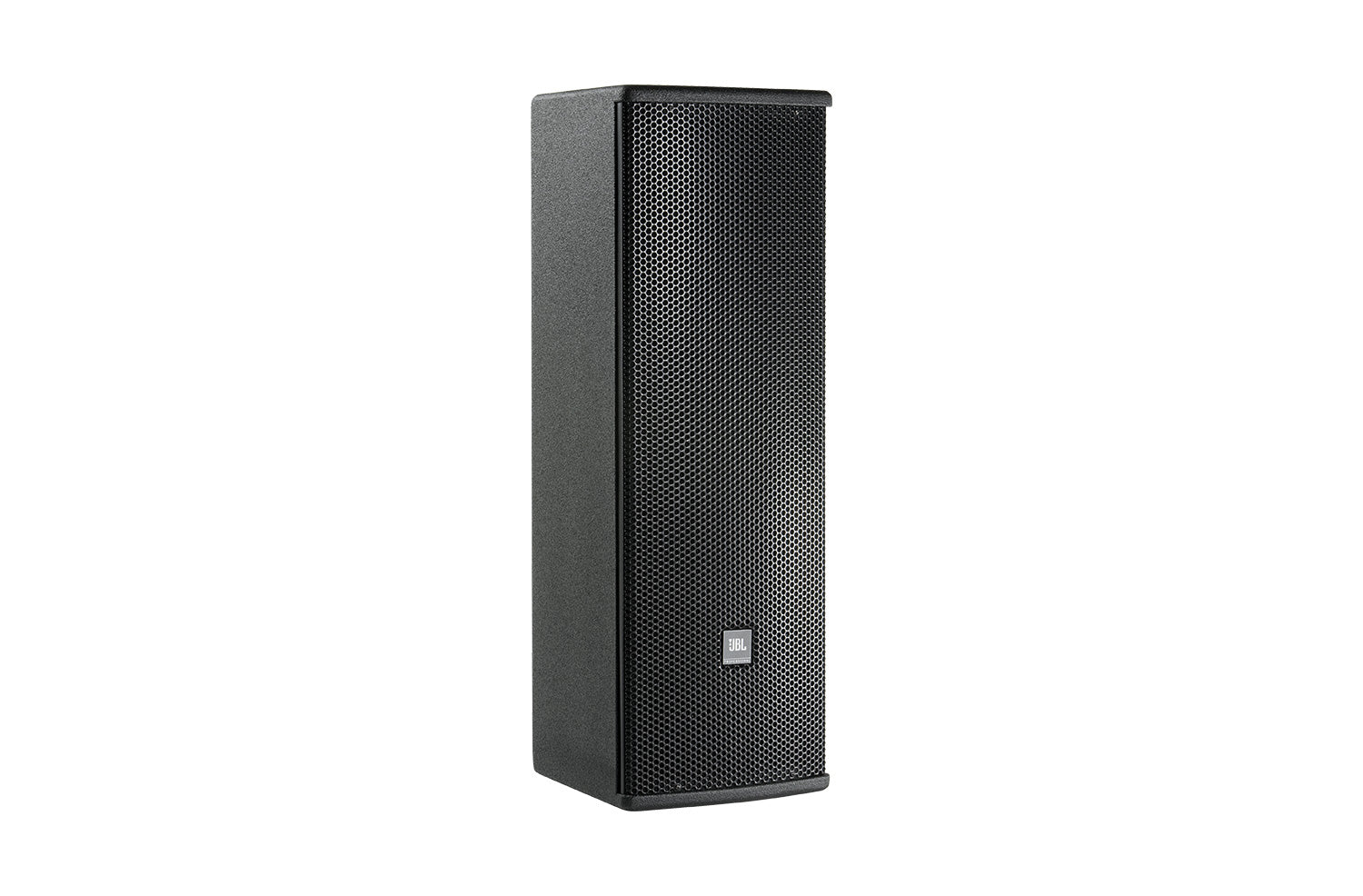

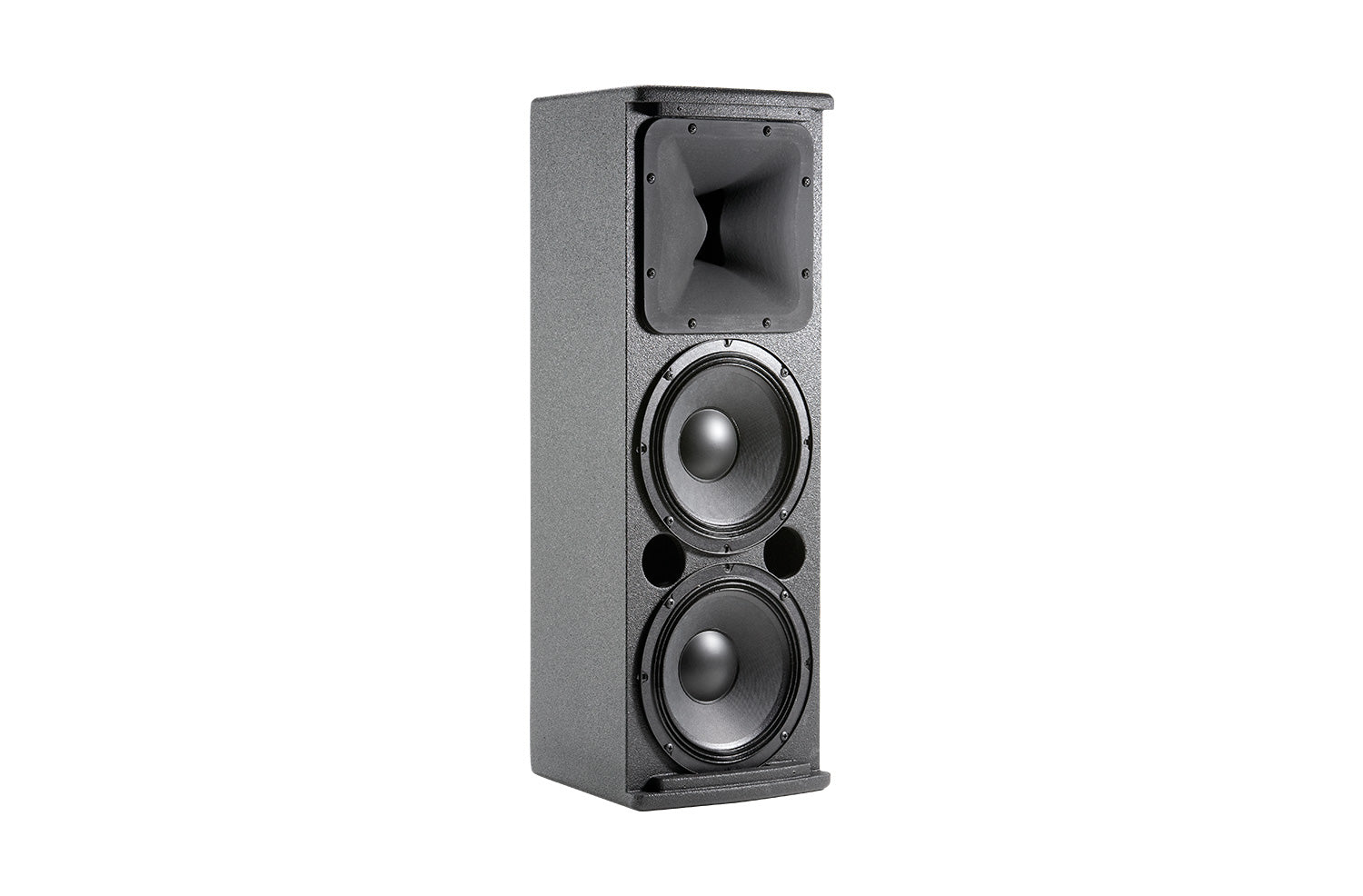

JBL AC 28/26

JBL AC 28/26

Compact 2-way Loudspeaker with 2 x 8” LF

High output, 2-way loudspeaker systems combining flexibility with high fidelity


More Information


  • 1” Exit Compression Driver with PT™ Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 750W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory

Technical Specification

Tech Specs

  • Powered:No
  • Power Configuration:2-way
  • LF Driver Size:2 x 8" Woofer
  • HF Driver Size:1 x 1" Compression Driver
  • Power Rating:375W Continuous, 750W Program
  • Total Power:700W AES Standard, 1500W Peak
  • Impedance:8 ohms
  • Inputs:2 x SpeakON, Barrier Strip
  • Frequency Range:53Hz-20kHz (-10dB)
  • Crossover Frequency:2.1kHz
  • Maximum Peak SPL:120dB SPL
  • Horizontal Coverage Angle:120 Degrees
  • Vertical Coverage Angle:60 Degrees
  • Enclosure Material:IPX3 Water Resistant, DuraFlex Coated Plywood, Powder Coated Steel Grille
  • Mounting Options:Pole, U-Bracket, OmniMount Bracket
  • Height:26.8"
  • Width:9.4"
  • Depth:10.0"
  • Weight:40.9 lbs.
