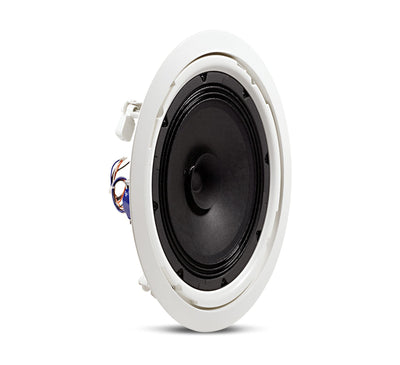

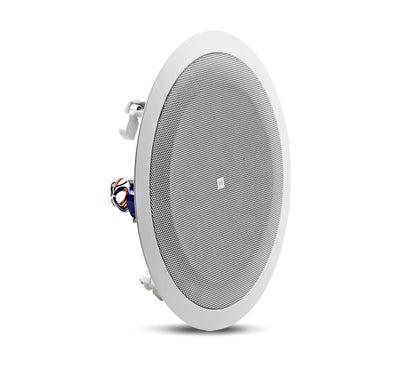

JBL 8128

JBL 8128

8-inch, Full-range, In-Ceiling Loudspeaker

The 8128 is a 8-inch, full-range, cost-effective loudspeaker for commercial applications. The 8128 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a back can for installation.

More Information

Features

  • Clear, High-Fidelity Performance
  • Dog-ears for easy Blind Mount Installations
  • High Sensitivity (97 db, 1W, 1m) for Maximum Power Efficiency
  • 6W Transformer for use of 70V / 100V Distributed Lines

Technical Specification



Specifications
Drivers 8 in (200 mm), Full-range Driver
Frequency Range 50 Hz – 16 kHz
Sensitivity 97 dB (1 kHz – 8 kHz)
Coverage Angle 90° conical
Transformer Taps 6W, 3W, 1.5W (0.75W at 70V only)
Input Connectors Bare wires
Dimensions (Diameter x Depth) 11.3 in (287mm) x 4.1in (105mm)
Weight 3lb (1.4kg)
Included Accessories Sculpted Grille
Optional Accessories MTC-8124C C-ring, MTC-Rail tile rails
Power Rating See transformer taps
Maximum SPL (1m) 105 dB (top 70V/100V tap)
Color White
Backcan No
Baffle/Rim Plastic
Ceiling Cutout Size 260 mm diameter (10.1 in)
Plenum Usage Not intended for use in return air plenums
