JBL 308P MK II

The next-generation JBL 308P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 308P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 308P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

More Information

Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers for optimized transient response and improved linearity
Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
New Boundary EQ settings compensate for low frequency variants introduced by the environment
HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

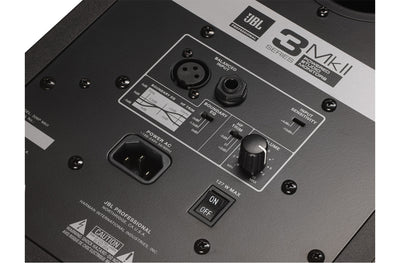

Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test ensures years of reliability
Sleek, modern design provides a visual upgrade to any studio

Technical Specification

LF Driver	203mm (8")
HF DRIVER SIZE	25mm (1")
HF DRIVER TYPE	Soft dome
Crossover	1800Hz 4th order acoustic Linkwitz-Riley
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT
INPUT SENSITIVITY (-10dBV INPUT)	92dB / 1m
Power Configuration	Bi-amplified
HF DRIVER POWER AMP	56W, Class-D
LF Driver Power Handling	56W, Class-D
Frequency Response (±3 dB)	45Hz – 20kHz
Frequency Range (-10dB)	37Hz – 24kHz
LOW FREQUENCY EXTENSION (-10dB)	37Hz
Maximum Continuous SPL	102dB
Maximum Peak SPL	112dB
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu)	+6dBV / +20.3dBu
SYSTEM DISTORTION CRITERIA	<10% THD at maximum output with full compressor / limiter engagement
ELECTRICAL DISTORTION CRITERIA	0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
Signal to Noise Ratio	75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
Coverage Angle	120° x 90°
Input Connectors	1 x XLR female, 1 x TRS female, balanced
HF TRIM CONTROL	-2dB, 0dB, +2dB
BOUNDARY EQ	LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
AC INPUT VOLTAGE	100 – 240VAC (±10%), 50 / 60Hz
ENCLOSURE TYPE	Ported
Enclosure	15mm MDF
ENCLOSURE FINISH	Matte black PVC
BAFFLE CONSTRUCTION	Injection-molded structural ABS
CABINET DIMENSIONS (H x W x D)	419 x 254 x 308mm (16.5" x 10" x 12.1")
DISPLAY CARTON (H x W x D)	473 x 312 x 358mm (18.6" x 12.3" x 14")
SHIPPING CARTON (H x W x D)	491 x 326 x 372mm (19.3" x 12.8" x 14.6")
Net Weight (each)	8.1 kg (17.87 lbs)
SHIPPING GROSS WEIGHT	9.4 kg (20.73 lbs)
