Product details

More Information
  • Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
  • Next-generation JBL transducers for optimized transient response and improved linearity
  • Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
  • Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
  • New Boundary EQ settings compensate for low frequency variants introduced by the environment
  • HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

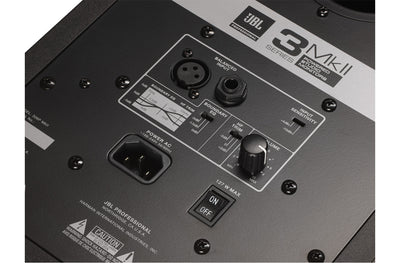

  • Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
  • Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
  • Strenuous JBL 100-hour full-power test ensures years of reliability
  • Sleek, modern design provides a visual upgrade to any studio
Technical Specifications
  • Powered:Yes
  • Power Configuration:Bi-amped
  • Quantity:Single
  • LF Driver Size:6.5" woofer
  • LF Driver Type:Cone
  • HF Driver Size:1" tweeter
  • HF Driver Type:Soft dome
  • LF Driver Power Amp:56W
  • HF Driver Power Amp:56W
  • Total Power:112W Class D
  • Frequency Range:39Hz-24kHz (-10dB)
  • Frequency Response:47Hz-20kHz (±3dB)
  • Crossover Frequency:1425Hz
  • Maximum Peak SPL:110dB
  • Input Types:1 x XLR, 1 x 1/4"
  • Enclosure Type:Rear Ported
  • Enclosure Material:15mm Medium-Density Fiberboard
  • Height:14.2"
  • Width:8.8"
  • Depth:11.1"
  • Weight:15.95 lbs.
