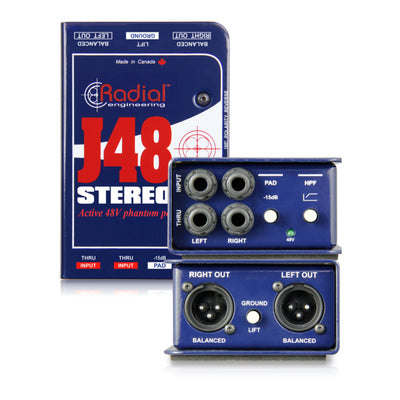

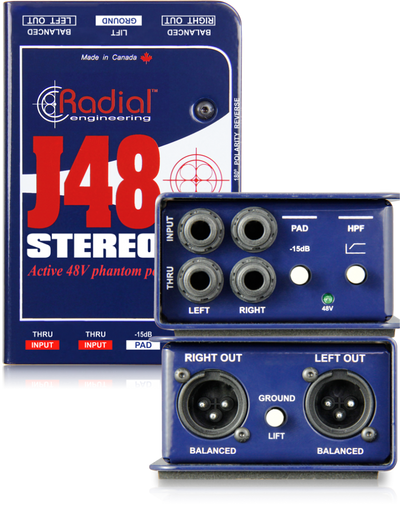

Radial J48 Stereo 2-channel Active Instrument Direct Box

Radial J48 Stereo 2-channel Active Instrument Direct Box

The J48 stereo is a high performance 2-channel active direct box for live concert touring and professional recording studio applications, with the ability to handle extreme transients without distortion while delivering the natural sound of your instrument.


More Information

  • 14-gauge steel construction bookend design protects switches and connectors for years of use
  • I-beam construction resists twisting to preserve internal components
  • Glass-filled nylon connectors feature extra large tarnish-free nickel-silver contacts
  • Onboard sound-shaping controls include -15dB pad, highpass filter, and polarity reversal
  • Unique switching power supply converts the 48 volt phantom to AC for increased headroom
  • Phantom power provides consistent power supply
  • Audio ground lifts at the power supply so phantom power isn't compromised

Technical Specification

  • Type:Active
  • Channels:2
  • Pads:-15dB
  • Polarity Switch:Yes
  • Ground Lift:Yes
  • Inputs:2 x XLR, 2 x 1/4"
  • Outputs:2 x XLR, 2 x 1/4" (Thru)
  • Power Source:48V phantom power
  • Height:2"
  • Depth:5"
  • Width:3.3"
  • Weight:1.55 lbs.
