Key Features
  • Eight ultra-low-noise mic/line preamps
  • Two front-panel mic/line and instrument preamps
  • Two Air preamp modes for classic console sound
  • Clip Safe and Auto Gain modes
  • 10 line outputs inc. alt speaker switching
  • Up to 16 channels of ADAT I/O
  • S/PDIF, MIDI, and Word Clock
  • Includes Hitmaker Expansion and DAW software bundle
Technical Specifications

Specifications

Overview

  • Number of Microphone Preamps8
  • Phantom PowerYes (Independent)
  • Instrument Inputs2
  • Line Inputs8
  • Air ModeYes
  • Auto GainYes
  • Clip SafeYes
  • Line Outputs10
  • Headphone Outputs2
  • ADAT Inputs2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz)
  • ADAT Outputs2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz)
  • SPDIF Inputs1
  • SPDIF Outputs1
  • MIDI Inputs1
  • MIDI Outputs1
  • TalkbackYes
  • LoopbackYes
  • ConnectivityUSB Type-C
  • ProtocolUSB 2.0

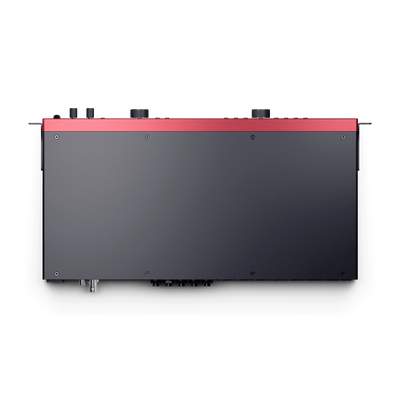

  • Form FactorDesktop / Rack Mountable (1U)
  • Simultaneous I/O26 x 26
  • A/D Resolution24-bit/192 kHz
  • Bus PoweredNo

Dimensions

  • Height46.55mm
  • Width442mm
  • Depth259.73mm
  • Weight3.304kg

Supported sample rates

  • 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs

  • Frequency Response20-20kHz ± 0.06dB
  • Dynamic Range116dB (A-Weighted)
  • THD+N-100dB @ 8dB gain
  • Noise EIN-127dBu (A-Weighted)
  • Maximum Input Level16dBu
  • Gain Range69dB
  • Impedance3kΩ

Variable Line inputs

  • Frequency Response20-20kHz ± 0.05dB
  • Dynamic Range115.5dB (A-Weighted)
  • THD+N-100dB @ 8dB gain
  • Maximum Input Level22dBu
  • Gain Range69dB
  • Impedance24kΩ
