Product details

More Information

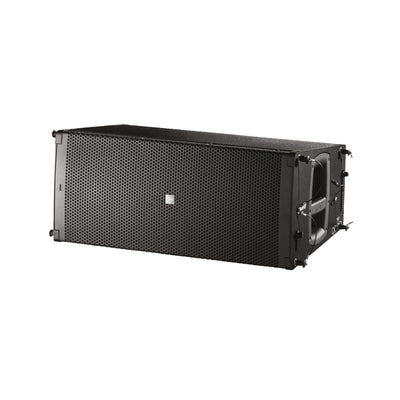

  • Compact 2-way line array system in bass-reflex
  • 2x 10" woofers with 2.5" voice coil.
  • 2x B&C custom drivers with 21" throat
  • Frequency response from 55Hz to 20kHz
  • 800W class D amplifier for LF and 400W for HF with switching power supply unit
  • TCP/IP OCA70 compatible network interface
  • EtherCon RJ45 input and output for daisy-chain
  • OLED DISPLAY and ENCODER for control
  • Robust birch plywood cabinet with integrated suspension mechanism and adjustable angle of between 0° and 10° in steps of 1°
  • 2 aluminium handles
  • Wide range of accessories for both hanging and resting configurations, preparation for amplifier control unit rain cover
Technical Specifications
  • Frequency Response: 55Hz – 20kHz
  • Low Frequency Woofer: 2 x 10" / 2.5" VC
  • High Frequency Driver: 2 x 1" / 1.7" VC
  • Maximum SPL Cont/Peak: 129 / 136dB
  • Dispersion: 90° x 10° (Depending on Number of Elements)
  • Input Impedance: 22 kOhm
  • Crossover Frequency: 1.1kHz
  • Net Dimension (WxHxD): 652 x 296 x 515 mm
  • Net Weight: 38 kg
  • Transport Weight: 41.5 kg
  • AC Power Requirements: 600VA
  • Built-in Amplifier LF/HF: 800W / 400W
  • Built-in Amplifier Peak LF/HF: 1600W / 800W
  • Power Cord: 16.4ft / 5m
  • Input Connectors: XLR IN / OUT
