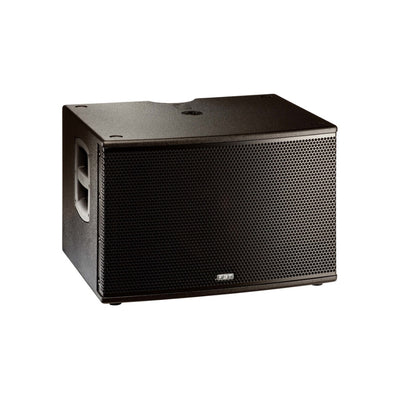

FBT VERTUS CS 1000
FBT VERTUS CS 1000

FBT VERTUS CS 1000

The CS 1000 is a complete system combination of a sub with all the amplification and a passive satellite speaker powered from the sub. The built in to the sub 600W + 400W RMS amplifiers deliver 129 dB SPL. The satellite speaker, its pole and cable pack away into the sub for easy transportation. Black Finish

Enquire Now

Product details

More Information
  • 2-way speaker system
  • Subwoofer with a custom 12" (320mm) long excursion speaker with a 2.5" (64mm) voice coil
  • 6 x full-range, 3" (70mm) neodymium high efficiency custom woofers with 0.75" (20mm) voice coils
  • Frequency response of 40Hz to 20KHz
  • Onboard Class-D, switch-mode amplifier delivering 600Wrms + 400Wrms for LF and HF respectively
  • Built-in DSP with eight presets to suit every application
  • Variable volume between -4.5 / + 5 dB in 8 steps
  • Control Panel with master volume, presets, satellite volume, HPF, and LED status
  • Input and link via XLR and Neutrik SPEAKON for satellite connection
  • Dispersion 110 ° (H) x 30 ° (V)
  • Modular design allowing two systems to be configured as one single solution via optional accessories
  • Bass reflex stackable subwoofer in a birch plywood enclosure with die-cast aluminium handle and rubber inserts, plus M20 support and a custom pole-mount solution
  • facilitating adjustable height and vertical aiming
  • The satellite and pole are fully integrated into the subwoofer cabinet, where a push button system locks the satellite in place for transportation
  • The satellite is equipped with a coupling system for accessories which allow the extension of the length of the line array, positioning one atop the other. Alternatively, the same system allows the satellite to be permanently wall-mounted.
  • Ideal for both live applications and fixed installations
  • Easily expandable to a total power of 8.000W peak (via a stereo system consisting of 4 x VERTUS CS1000, positioned two per side)
Technical Specifications
  • Configuration: 2 Way
  • Frequency Response: 40Hz – 20kHz
  • Low Frequency Woofer: 12"
  • High Frequency Driver: 6 x 3"
  • Maximum SPL Cont/Peak: 129dB
  • Dispersion: 110° x 30°
  • Input Impedance: 22 kOhm
  • Crossover Frequency: 180Hz
  • Input Connector: XLR
  • Net Dimension (WxHxD): Satellite - 105 x 530 x 120 mm, Subwoofer - 565 x 373 x 450 mm
  • Net Weight: 30 kg
  • Transport Dimension (WxHxD): 695 x 473 x 580 mm
  • Transport Weight: 34 kg
  • AC Power Requirements: 640VA
  • Built-in Amplifier LF/HF: 1000W (600W LF + 400W HF)
  • Built-in Amplifier Peak LF/HF: 2000W (1200W LF + 800W HF)
  • Power Cord: 5m IEC
