EV PXM-12MP

EV PXM-12MP

On the one hand, the PXM-12MP is a rock-solid wedge for traditional monitoring purposes. Its 12" coaxial driver and 55° firing angle supply a crisp full-range response in a wide arc, which means whether you're footing-up for a solo or heading downstage for a drink, you'll still be able to hear yourself clearly. But let's stay you're playing out and just want something easy you can throw up on a speaker stand. The PXM-12MP's pole mount lets you use this speaker as a short-throw mains speaker, with a robust 700-watt Class D power amp and powerful onboard DSP to deliver rich sound to all listeners in the first few rows. A rugged steel grille and integrated cable management round out the package.

More Information

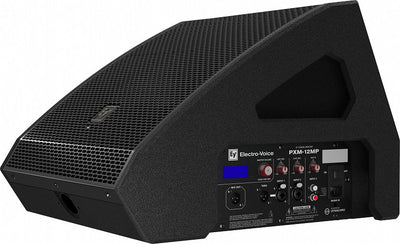

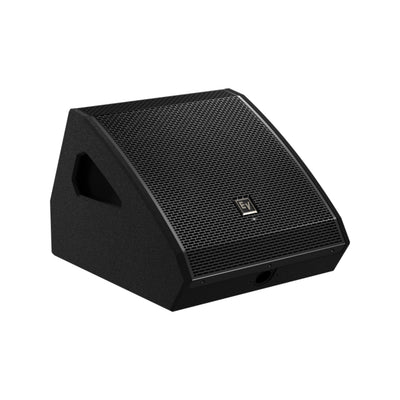

The PXM-12MP is a dedicated portable loudspeaker system designed to provide musicians, DJs, and audio engineers convenient and powerful monitoring and playback functionality. By providing a symmetrical 90° x 90° coverage pattern facilitated by a 12” / 1.75” coaxial driver, users can experience solid, consistent coverage, which ensures that their mix can be heard clearly without constraining them to a limited part of the stage. The 55° monitoring angle enables users to stand as close or as far away from the system as necessary without sacrificing audio intelligibility. An integrated pole mount at the front allows for additional applications such fills, delays, or a main PA. With a dedicated subwoofer and the adjustable subwoofer matching LPFs of the PXM-12MP, a full 3-way system can be configured to create an extremely compact main PA.

The integrated mixing section provides 3 input channels: 2x XLR / ¼” combination connectors and a stereo RCA input. The DSP offers 4 EQ presets, high and low shelving, parametric midrange EQs, adjustable low-cut filters, a tunable feedback notch filter, and recallable user settings. The Class-D 700W amplifier provides enough power to satisfy the most demanding monitoring requirements, and system protection and limitation designed by Electro-Voice ensures that the PXM-12MP will play loudly and consistently even at the edge of its specifications.

Technical Specification

  • Small footprint — perfect for players who pack their own PA gear
  • Clean, robust 700-watt Class D internal power amp
  • 12" coaxial speaker with coincident HF driver saves space and supplies flat, full-range (64Hz–20kHz, ±3dB) performance feedback
  • Guitar Cab mode mimics the response of a traditional guitar cab — perfect for modelers
  • 55° monitor angle delivers intelligibility up close or at a distance
  • Rugged steel grille can take a boot without denting
  • Doubles as a short-throw mains speaker
  • Integrated pole mount for stand use
  • 2 Mic/Line combo XLR-1/4" inputs, Stereo RCA
  • Onboard DSP gives you five user presets and 3-band EQ
