EV ELX 200-15

EV ELX 200-15

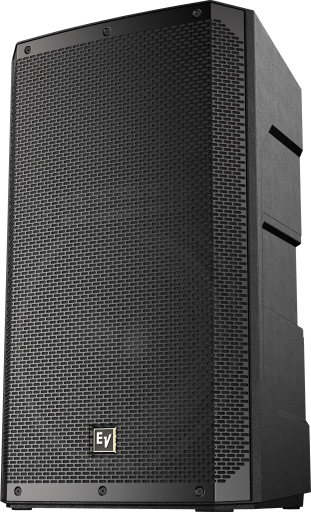

The Electro Voice ELX200-15 is a 15 Inch 2 Way Passive Loudspeaker.

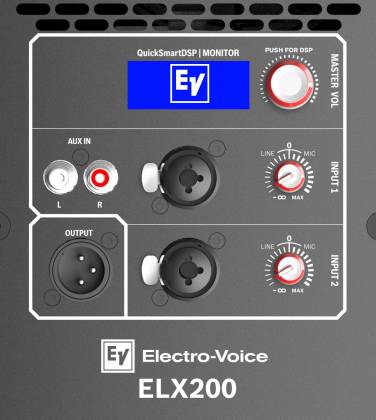

QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

More Information

  • 15" woofer and high-performance tweeter for excellent low-end punch and high-end clarity
  • Lightweight, easy-to-carry passive speaker engineered for optimal performance
  • Works great as a stage monitor in tight performance spaces
  • 3-handle design makes load-in and -out easier and helps prevent injuries

Technical Specification

  • Powered:No
  • LF Driver Size:1 x 15" EVS-15M woofer
  • HF Driver Size:1.4" DH-1C titanium compression driver
  • Impedance:8 ohms
  • Power Rating:300W Continuous
  • Total Power:1200W Peak
  • Inputs:2 x speakON (NL4)
  • Frequency Range:52Hz-19kHz (-10 dB)
  • Frequency Response:77Hz-16kHz (-3 dB)
  • Crossover Frequency:1600Hz
  • Horizontal Coverage Angle:90 Degrees
  • Maximum Peak SPL:130 dB SPL @ 1m
  • Vertical Coverage Angle:60 Degrees
  • Enclosure Material:Polypropylene Composite
  • Mounting Options:Pole Mount, Floor Wedge, 3 x M10 Fly Points
  • Height:27.95"
  • Width:16.65"
  • Depth:15.12"
  • Weight:41.2 lbs.
