EV ELX 200-12

EV ELX 200-12

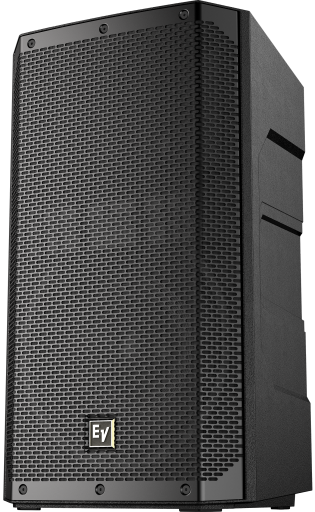

Electro-Voice ELX200 series powered speakers are engineered to deliver greater functionality than their predecessors in lighter-weight, ultra-portable form factors with superb build quality and elegant design. This ELX200 12-inch 2-way powered speaker consists of a strong, internally reinforced composite cabinet with an ergonomically sound 3-handle design and M10 suspension points, an anteriorly placed Signal Synchronized Transducer (SST) waveguide that time aligns the woofer and the tweeter, and app-controllable QuickSmartDSP for best-in-class processing.

More Information

  • 12-inch woofer and high-performance tweeter for balanced low-end punch and high-end clarity
  • Lightweight, easy-carry loudspeaker with next-level features for optimal performance
  • Class D amplification is extra-efficient and reduces distortion for cleaner audio
  • QuickSmartDSP offers best-in-class signal processing power with single-knob control
  • Efficient LCD menu access to four factory presets (Music, Live, Speech, and Club)
  • 5 user-programmable presets let you dial in perfect sound for every venue or room
  • QuickSmartMobile app for simultaneous out-front configuration of up to 6 ELX200 speakers
  • SST optimizes transducer time alignment for enhanced acoustic quality
  • Integrated M10 suspension points for flying your speaker

Technical Specification

  • Powered:Yes
  • LF Driver Size:12" EVS-12M
  • HF Driver Size:1" DH-1C Titanium Compression Driver
  • Total Power:1200W Class D
  • Inputs:2 x XLR-1/4 combo, 1 x Dual RCA Stereo
  • Outputs:1 x XLR (thru)
  • Bluetooth:Yes (control/configure only)
  • Frequency Range:51Hz-20kHz (-10dB)
  • Frequency Response:57Hz-16kHz (-3dB)
  • Crossover Frequency:1700Hz
  • Maximum Peak SPL:130 dB SPL
  • Horizontal Coverage Angle:90 Degrees
  • Vertical Coverage Angle:60 Degrees
  • Signal Processing:QuickSmart DSP
  • Software:QuickSmart Mobile app
  • Enclosure Material:Polypropylene Composite
  • Mounting Options:Pole Mount, Floor Wedge, 3 x M10 Fly Points
  • Power Source:Standard IEC AC cable
  • Height:24.76"
  • Width:14.29"
  • Depth:13.54"
  • Weight:34.39 lbs.
