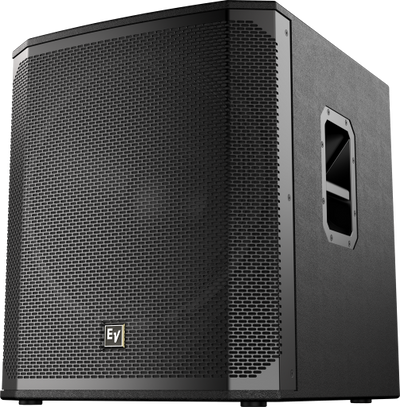

EV ELX 200- 18S

EV ELX 200- 18S

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

More Information

  • 1600 W (peak), 133 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
  • High-output EVS-18L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • System reliability verified with over 500 hours of abuse testing and endurance testing.
  • Ideal for portable and installed applications.
  • Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
  • Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.

Technical Specification

  • Powered/Unpowered:Unpowered
  • LF Driver Size:1 x 18" EVS-18L woofer
  • Impedance:8 ohms
  • Power Rating:400W Continuous

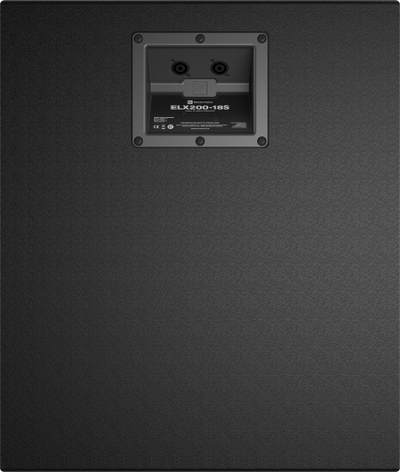

  • Inputs:2 x SpeakON (NL4)
  • Total Power:1600W
  • Frequency Range:28Hz-300hz (-10 dB)
  • Frequency Response:45Hz-200Hz (-3 dB)
  • Maximum Peak SPL:133 dB SPL @ 1m
  • Mounting Options:M20 Pole Mount Plate
  • Enclosure Material:15mm Plywood with durable polyurea top-coat finish
  • Height:23.7"
  • Width:20"
  • Depth:22.6"
  • Weight:58.7 lbs.
