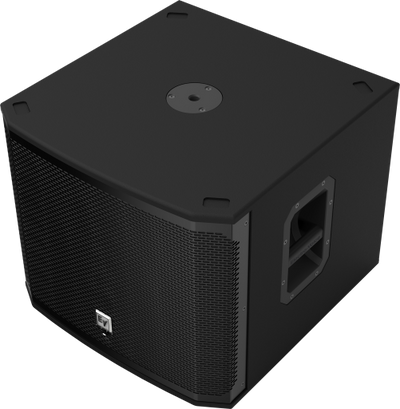

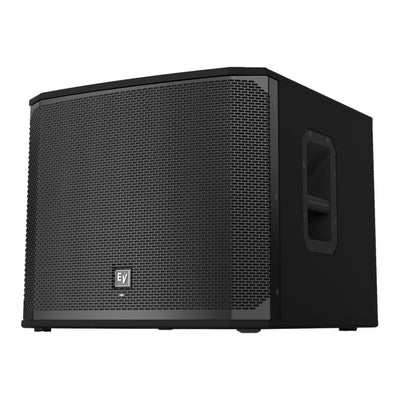

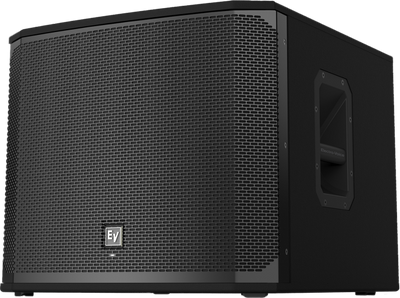

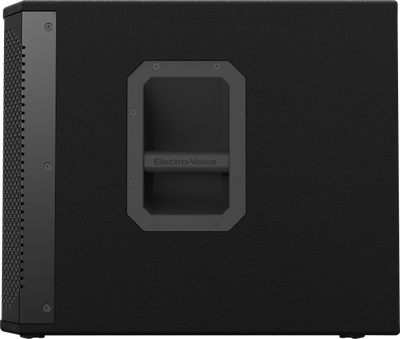

EV EKX 15 S

The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology ÑÏ all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

More Information

1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Large slot ports for low distortion and excellent bass extension.
Metal grille reinforcement bar (two bars on the EKX-18S).
M20 threaded pole mount plate.

Technical Specification

Powered/Unpowered:Unpowered
LF Driver Size:15" subwoofer
Impedance:8 ohms
Power Rating:400W Continuous
Total Power:1600W Peak
Inputs:2 x speakON
Frequency Range:40Hz-300hz (-10 dB)
Frequency Response:60Hz-100Hz (±3 dB)
Maximum Peak SPL:133dB SPL @ 1m
Mounting Options:M20 threaded pole mount plate
Enclosure Material:15mm Plywood with EV Coat
Height:18"
Width:21"
Depth:22"
Weight:55 lbs.
