ELECTRO VOICE TX 1152 FM

ELECTRO VOICE TX 1152 FM

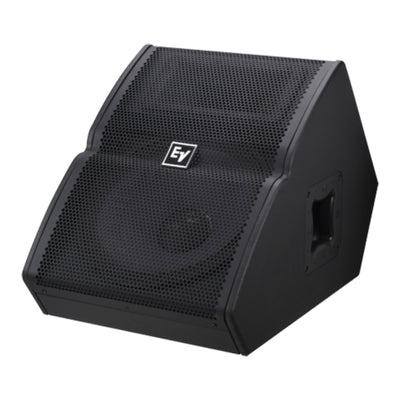

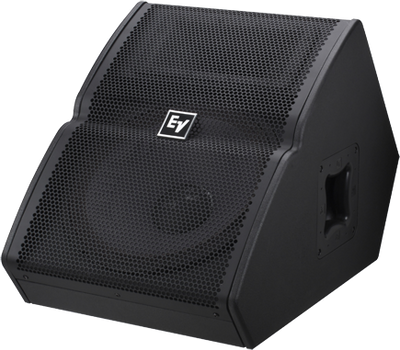

Seeking a tough but lightweight monitor that’ll deliver the sonic goods? Electro-Voice has you covered with the TX1152FM 2000W 15-inch Passive Floor Monitor. This compact, high-output floor monitor provides fantastic response given its Signal Synchronized Transducers that'll take your sound quality to the next level. Utilizing a 1.25-inch titanium driver and a Constant Directivity horn, your audience will benefit from enhanced vocal projection and instrumental output with less feedback. The TX1152FM complements all full-range cabinets in the Tour-X family for optimum sound quality and compatibility for small to medium stages and venues.

More Information

  • Durable, low-distortion speaker for small and medium sized stages

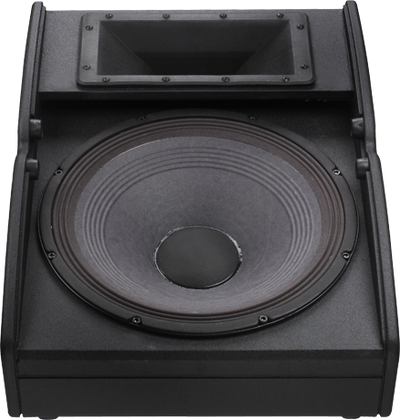

  • High-excursion SMX and EVS woofers
  • Constant Directivity 90° x 50° horns

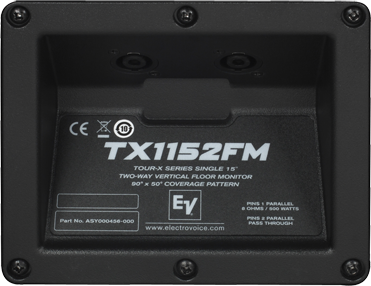

  • Dual NL4 input connectors
  • 1.25-inch titanium HF compression driver
  • 500W continuous, 2000W peak
  • Signal Synchronized Transducers offer advantages to flat baffle construction

Technical Specification

  • Powered:No
  • LF Driver Size:1 x 15"
  • HF Driver Size:1.25" HF titanium compression driver
  • Impedance:8 ohms
  • Total Power:2000W
  • Frequency Response:65Hz-20kHz (-3 dB)
  • Crossover Frequency:1750Hz
  • Maximum Peak SPL:133 dB SPL @ 1m
  • Horizontal Coverage Angle:90°
  • Vertical Coverage Angle:50°
  • Enclosure Material:Black Plywood/MDF with EVCOAT
  • Mounting Options:Floor Wedge
  • Height:18.7"
  • Width:17.28"
  • Depth:25.79"
  • Weight:51.81 lbs.
