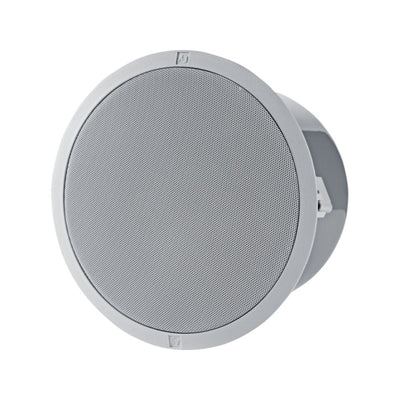

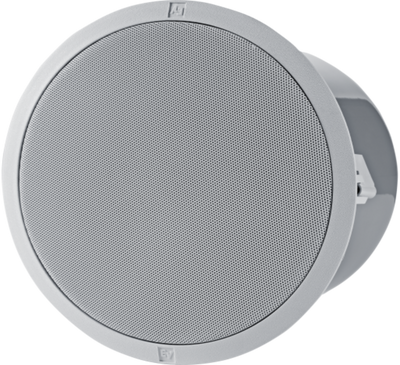

Ceiling speaker 6.5" white
Full bandwidth overload protection
Front baffle wattage tap adjustment
Includes tile bridge and mounting ring for easy installation
UL1480A and CSA 22.2 205 certified

More Information

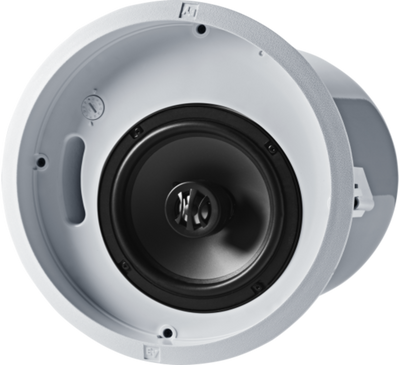

The Electro-Voice EVID-C6.2 loudspeaker system is a complete two-way ceiling loudspeaker. The package consists of a bezel assembly, grille, rear enclosure, 6.5-inch coax two-way loudspeaker and internal linematching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID-C6.2 loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-C6.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15W or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS.

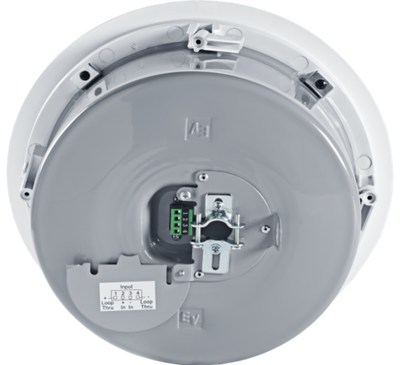

The rear enclosure is constructed from zinc-plated, heavy gauge steel. The low profile enclosure makes it easy to mount in very tight spaces. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the EVID-C6.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, highefficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Technical Specification


Frequency response 50 Hz - 20 kHz
Sensitivity (SPL 1 W/1 m) 90 dB
Coverage pattern 120° conical
Power handling (@ 8Ω) 75 W (with overload protection)
Rated Impedance 8 Ω
Recommended High-Pass frequency 60 Hz
Input configuration 8Ω; 70V/100V
70V/100V power taps 1.8 (70V only)/3.7/7.5/15/30 W
LF transducer 6.5 in (165 mm) high-compliance driver (weatherized cone)
HF transducer 1 in (25 mm) Ti-coated dome
Mounting system Integrated 4-point toggle anchors
Acoustic design Ported cabinet, two-way design, internally damped, w/passive crossover
Cabinet construction Steel enclosure and UL94V-0 rated baffle and bezel
Grille construction Powder-coated steel
Color White (paintable)
Cutout dimensions (diam.) 10.6 in. (269 mm)
Dimensions (depth x diam.) 7.0 in. x 11.8 in. (190 mm x 300 mm)
Net weight 10 lb (4.5 kg)
Included accessories Tile bridge, mounting ring
Safety agency ratings UL 1480
Safe for use in air handling spaces per UL 2043
