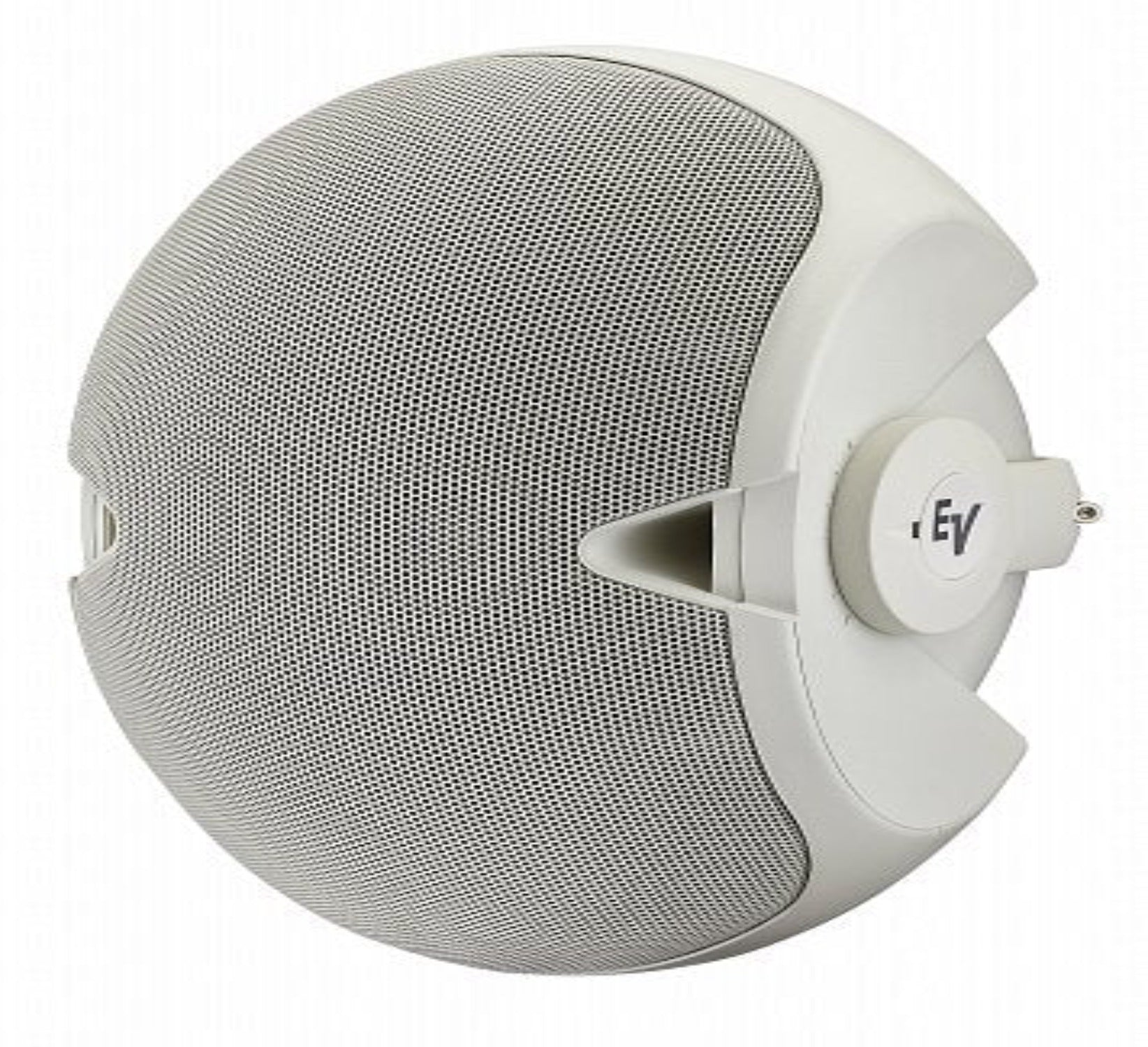

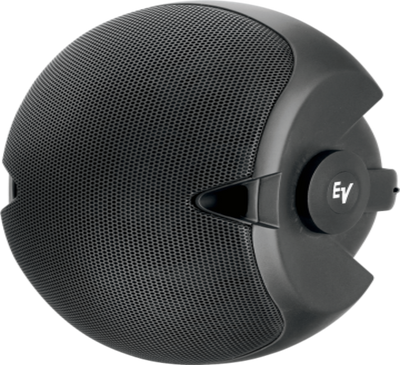

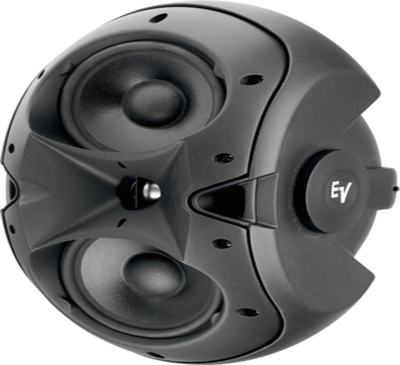

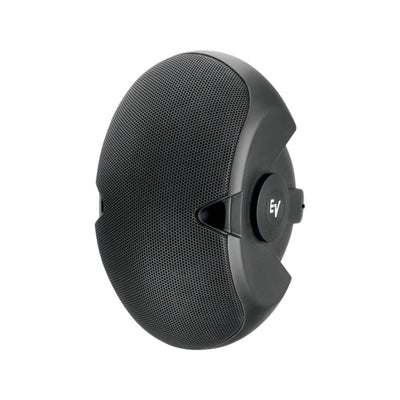

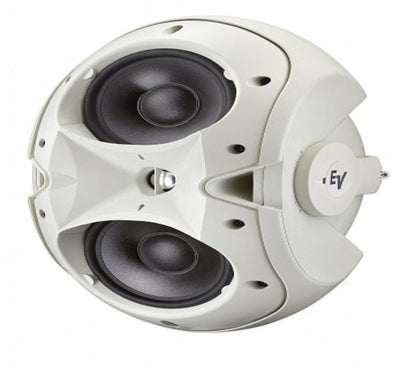

The Electro-Voice EVID 6.2TW is a compact full-range loudspeaker that yields a big sound. Packed inside of this speaker’s paintable weather-resistant enclosure are dual 6-inch woofers and a 1-inch titanium-diaphragm tweeter with a cutting-edge neodymium magnetic structure. Experience outstanding imaging, thanks to E-V’s Coherent Coverage Waveguide, while a vented low-frequency enclosure offers solid-sounding bass. Since the EVID 6.2TW’s full-bandwidth overload protection will safeguard against damage, you can crank the music up as loud as you want. This speaker is ideal for locations like shopping malls, health clubs, and sports bars, and its magnetically shielded design also makes it tailor-made for video applications. The EVID 6.2TW boasts generous 100° x 80° dispersion and super-versatile combined 70V/100V and low-impedance operation.

More Information

Dual 6" 2‑way surface-mount loudspeaker
  • Compact full range
  • Ideal for shopping malls, sports bars, and health clubs
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Coherent Coverage Waveguide
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Paintable black or white finish
  • Magnetically shielded for video applications
  • Strong-Arm Mount for easy, flexible aiming
  • "T" version for 70 or 100 V distributed systems

Technical Specification

Tech Specs

  • Powered:No
  • LF Driver Size:2 x 6" Woofer
  • HF Driver Size:1" HF Titanium-diaphragm
  • Total Power:300W (70V/100V transformer taps)
  • Impedance:8 ohms
  • Inputs:1 x Phoenix
  • Crossover Frequency:1600 Hz
  • Maximum Peak SPL:118dB SPL
  • Horizontal Coverage Angle:100°
  • Vertical Coverage Angle:80°
  • Enclosure Material:ABS
  • Height:16.5"
  • Width:9"
  • Depth:11.75"
  • Weight:12 lbs.
