COMPACT & LIGHTWEIGHT

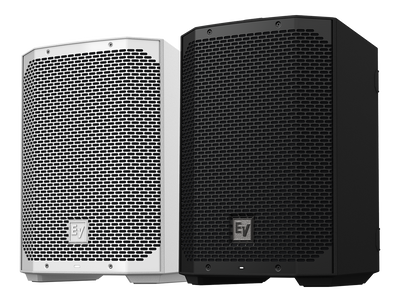

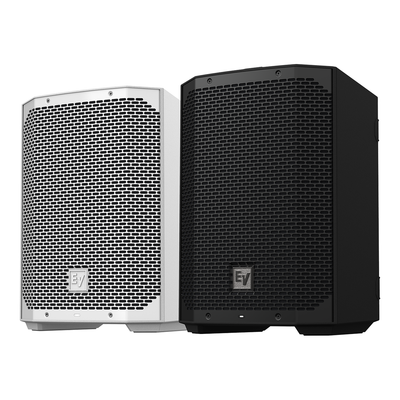

Every detail of EVERSE 12 is designed to maximize easy lifting and transportation – all while reinforcing EV’s reputation for real-world durability. An ergonomically designed soft-touch handle and premium lightweight construction make it a breeze to move and mount EVERSE 12. Pack it into the optional duffel bag and head out to the gig. It’s the all-in-one pro-audio system you can grab to go.

WIRELESS CONTROL & MONITORING

Use the free EV QuickSmart Mobile app to adjust all audio, effects and mix functions via your phone or tablet. An intuitive user interface makes it simple to shape your sound to the space, so you can focus on the show.



EXPANDABLE FUNCTIONALITY

The integrated 12 V DC port provides convenient power from the EVERSE battery, perfect for powering a wireless microphone system. Attach the accessory tray to the top of your EVERSE 12 to secure receiver hardware in place. A charging port is included for mobile devices if you need a top-up when streaming. Place on a tripod for a longer throw, set long-side-down as a stage monitor, or use upright with the kick-back angle to project up off the performance area. For stereo setups, EVERSE 12 is equipped for Bluetooth® true wireless stereo streaming. Flexible features for a truly self-contained setup, input to output.

POWERED BY DYNACORD

EVERSE 12 is driven by a high-efficiency Class-D amplifier and DSP module developed in collaboration with the world-class audio electronics engineering team at EV’s sibling brand Dynacord. Pro features include a built in four-channel digital mixer with studio-quality effects and processing, 48 V phantom power, feedback suppression and audio ducking. Between the EV and the D badges, you get the best of both worlds.

Technical Specifications

  • Application - Pole-mounted / Monitor / Kick-back

  • Transducers - 12" woofer with ferrite magnet, 1" compression driver with neodymium magnet, ferrofluid cooled

  • Power Rating (Peak) - 400 W

  • Max SPL - 126 dB

  • Coverage (H x V) - 100° x 60°

  • Frequency Range (-10 dB) / Response (-3 dB) - 45 Hz – 20 kHz / 55 Hz – 20 kHz

  • Enclosure Material - Polypropylene

  • Grille Material - Steel with powder coat

  • Digital Signal Processing - QuickSmartDSP with 7-band GEQ, user-programmable presets, limiter monitoring, input level control, digital effects control, master volume control via LCD or QuickSmart Mobile app

  • Remote Control & Monitoring - EV QuickSmart Mobile app for wireless configuration, control & monitoring of up to 6 EVERSE 12 systems

  • Bluetooth Audio Streaming & True Wireless Stereo - Yes

  • Crossover Frequency - 2000 Hz

  • Connectors - 2 x XLR/TRS combo jack, 1 x charge port, 1 x XLR output, 1 x 12 V DC power output, 1 x 3.5 mm stereo, 1 x TRS footswitch

  • USB Charging - 1.5 A max. (device-dependent)

  • Power Consumption - 100 - 240 V~, 50 - 60 Hz, 1.2 - 0.6 A

  • Battery Capacity - 86.4 Wh

  • Battery Runtime (Max Output) - 6+ Hours

  • Battery Runtime (Moderate Output) - 12+ Hours

  • Weight - 14.16 kg / 31.22 lbs

  • Dimensions (W x H x D) - 345 x 597 x 347 mm / 13.58" x 23.5" x 13.66"

  • Kick-back / Monitor Angles - 25° / 55°

  • Colors - Black & White

  • Accessories - EVERSE12-TRAY-B mic receiver tray black, EVERSE12-TRAY-W mic receiver tray white, EVERSE-BAT-B battery pack black, EVERSE-BAT-W battery pack white, EVERSE-DUFFEL padded duffel bag, EVERSE12-RAINCVR rain cover
