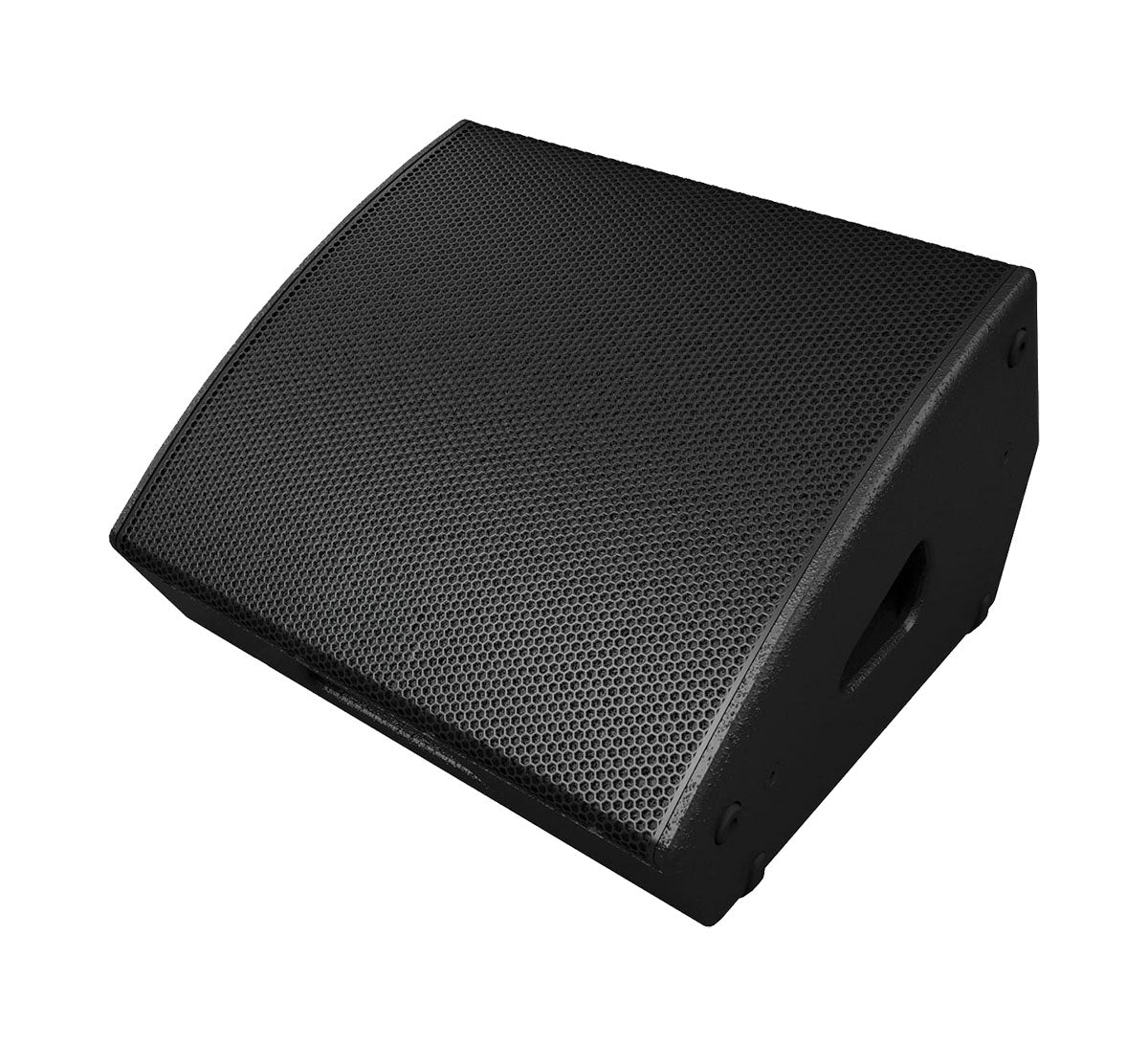

DYNATECH Y 15

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The Y-15 deliver extraordinary performance at unmatched value.

More Information

Compact, two-way stage monitor
Available in passive or active mode
Low-profile plywood enclosure
4 M8 rigging inserts

Technical Specification

Rated Power		600W AES, 2400W Peak
Sensitivity		97dB
Drivers		15”(375mm)/3”(75mm) voice coil, long excursion 1”(25mm) exit/1.7”(44mm) voice coil, polyimide dome compression driver
Recommended Amp		V4000, V5000
Crossover		1.6 kHz passive
Frequency Response		58Hz - 20kHz +-3dB
Maximum SPL		131 dB Peak
Nominal Impedance		8Ω
Dispersion (-6dB)		90° horizontal, 60° vertical
Connector		2 X NL4 type
Dimensions (WXHXD)		700mm X 31mm X 430mm
Weight		23 kgs
