Architects’ and Engineers’ Specifications:

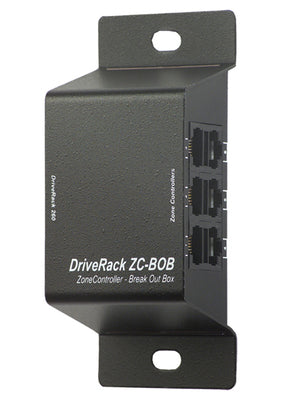

The remote device shall provide up to 6 RJ-45 input jacks for “Home Run” or parallel wiring configurations of the dbx ZC wall panel controllers, and one output RJ-45 jack for connection to the dbx DriveRack or ZonePRO device. The device shall be a dbx ZC-BOB remote controller.

Technical Specifications

Connectors- (2) RJ-45

Series Wiring- Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.

Parallel Wiring using ZC-BOB- Up to Six Zone Controllers: 1000 ft.

Parallel Wiring Cable- CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.

Safety Agency Certifications- UL 60065, IEC 60065, EN 55013, E60065
