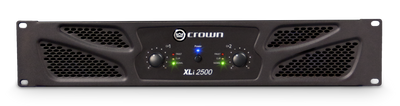

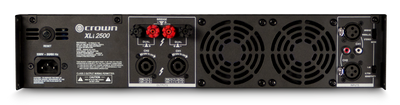

CROWN XLI 2500
CROWN XLI 2500
CROWN XLI 2500

CROWN XLI 2500

The XLI Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable. They are suited for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs.

    Enquire Now

    Product details

    More Information

    - Stereo/parallel/bridge-mono mode

    - User selectable input sensitivity - 0.775V and 1.4V

    - Electronically balanced RCA & XLR inputs; binding post and Speakon outputs

    - Efficient forced-air cooling prevents excessive thermal buildup

    - Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel

    - Protection against shorts, no-load, on/off thumps and radio-frequency interference

    Technical Specifications

    Frequency Response: 20 Hz - 20 kHz, +0/-1 dB (at 1 watt)

    THD: <0.5%, 20 Hz - 20 kHz

    Intermodulation Distortion: =/ <0.35% (60 Hz and 7 kHz at 4:1 from full rated ouput to -30 dB)

    Slew Rate: >10V/us

    Voltage Gain: 33 dB

    Damping Factor: (8 ohms, 10 Hz to 400 Hz) >200

    Signal To Noise Ratio (A-weighted): >100 dB

    Crosstalk (below rated power) 20 Hz to 1 kHz: -75 dB, -59 dB

    Input Sensitivity: (for full rated power at 8 ohms) 0.775V or 1.4V

    Input Impedance (nominal balanced, unbalanced): 20kΩ, 10kΩ

    AC Line Voltage and Frequency Configurations Available: (+10%) 120V~60 Hz; 220V~50/60 Hz; 230-240V~50/60 Hz

    Dimensions: 19" x 3.5" x 12.4" (48.3cm x 8.9cm x 31.5cm)

    Weight: 29.7lbs (13.5kg)

    IEC Power Connector: 15A
