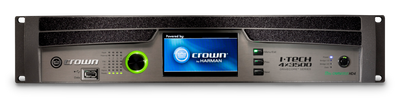

CROWN I-Tech 4x3500HD
CROWN I-Tech 4x3500HD

CROWN I-Tech 4x3500HD

The I-Tech 4x3500HD amplifier is the industry's first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs.  Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings.  Combine that with Crown's patented Class-I technology delivering uncompromising power output across all four channels, and it's easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.

Enquire Now

Product details

More Information

More Flexibility

• True Ethernet backbone – fast, reliable and scalable

• Color LCD provides users with diagnostics and presets for easy setup

• Includes SLM (Sweep Load Monitoring) with system-level diagnostics

• Front panel USB connector transfers presets to/from a USB drive to the amp’s DSP

• New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard

• The only product available with analog, AES, CobraNet®, HiQnet™ and Ethernet connectivity

No Compromise

• BSS OMNIDRIVEHD™ DSP processing with industry leading IIR filters and linear phase FIR filters

• High common-mode rejection eliminates hum and RFI on input cables

• Professional-grade connectors for all inputs and outputs

• Full power-supply voltage is always available, allowing instantaneous power on demand

• Quality-graded components let you safely drive the amplifier harder

• More total capacitance provides tremendous energy reserves for power bursts

No Comparison

• The only tour sound amplifier that provides four routable inputs to any output (analog, AES, VDrive, or CobraNet)

• LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound

• Sixth generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw

• Global Power Supply; universal AC input accepts 100-240VAC, 50/60 Hz (±15%)

Technical Specifications
  • Number of Channels:4
  • Watts/Side @ 8 ohms:2100W
  • Watts/Side @ 4 ohms:4000W
  • Watts/Side @ 2 ohms:3500W
  • Inputs:4 x XLR, 2 x 3-pin Euroblock, 2 x XLR (AES/EBU)
  • Outputs:4 x Binding Post Sets
  • Data I/O:1 x Ethernet, 1 x USB-A
  • Rack Spaces:2U
  • Height:3.3"
  • Depth:16.95"
  • Width:19"
  • Weight:29 lbs.
