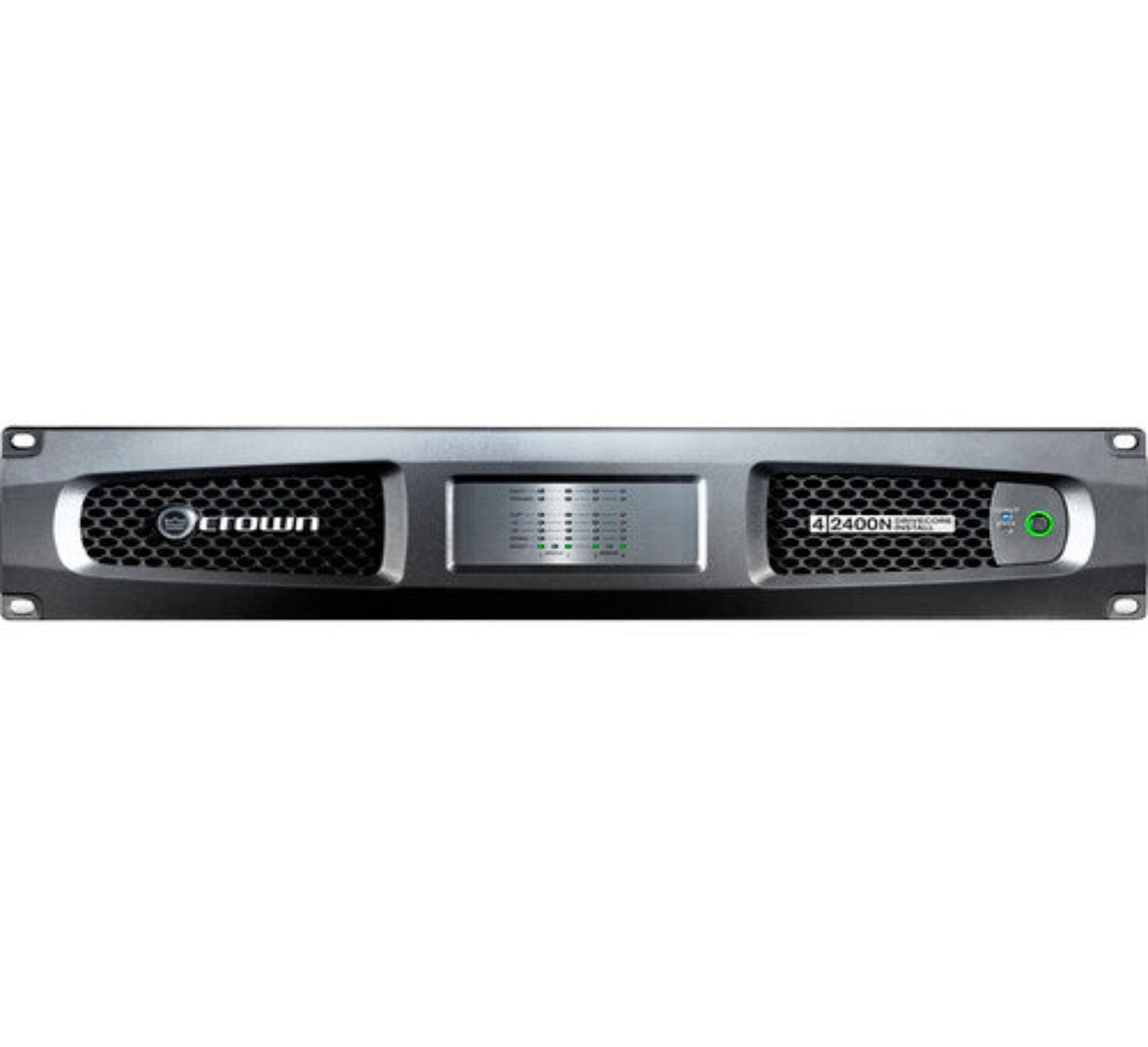

CROWN DCi 4|2400N

CROWN DCi 4|2400N

A High-performance 4-channel Power Amp

Crown’s DCi 4|2400N is a high-performance 4-channel, 2,400-watt power amp that’s packed to the gills with state-of-the-art features. The company's super-efficient DriveCore technology is at the heart of the DCi 4|2400N, maximizing both its reliability and its sound quality. There’s a sizeable cache of I/O on tap, including Harman’s proprietary BLU-Link, with flexible networking support for AVB, CobraNet, and Dante via BSS Audio Soundweb London processors. Control, configure, and monitor via a standard TCP/IQ network using Harman's HiQnet Audio Architect software; customize your system with this amplifier's onboard DSP, which includes LevelMAX limiters, EQ, delay, a matrix mixer, and speaker line monitoring. Beyond that, the DCi 4|2400N can drive speaker loads up to 100Vrms without a transformer and is EN 54-16-compliant for life safety applications. Crown's DCi DriveCore 4|2400N is a great choice for any medium-sized installation such as cinema, houses of worship, bars, lounges, and more.

More Information

Crown DCi 4|2400N Features:
  • Efficient DriveCore technology maximizes sound quality and reliability
  • Powerful onboard DSP supplies plenty of opportunities for customization
  • Harman’s proprietary BLU-Link provides networking support for AVB, CobraNet, and Dante via BSS Audio Soundweb London processors
  • Harman's HiQnet Audio Architect software yields wireless control, configuration, and monitoring
  • Direct Drive 70/100Vrms output accommodates either 70V or 100V for high-impedance applications
  • GPIO/Aux port allows you to recall presets, mute channels, monitor faults, power on/off the amplifier, and more
  • EN 54-16-compliant for life safety applications
  • Great for any medium-sized installation like cinema, houses of worship, bars, lounges, and more

Technical Specification

Tech Specs

  • Number of Channels:2
  • Power Class:Class D
  • Watts/Side @ 8 ohms:1900W
  • Watts/Side @ 4 ohms:2400W
  • Watts/Side @ 2 ohms:2100W
  • Watts Bridged:4200W @ 4 ohms, 4200W @ 140V
  • 70V/100V Output:2100W

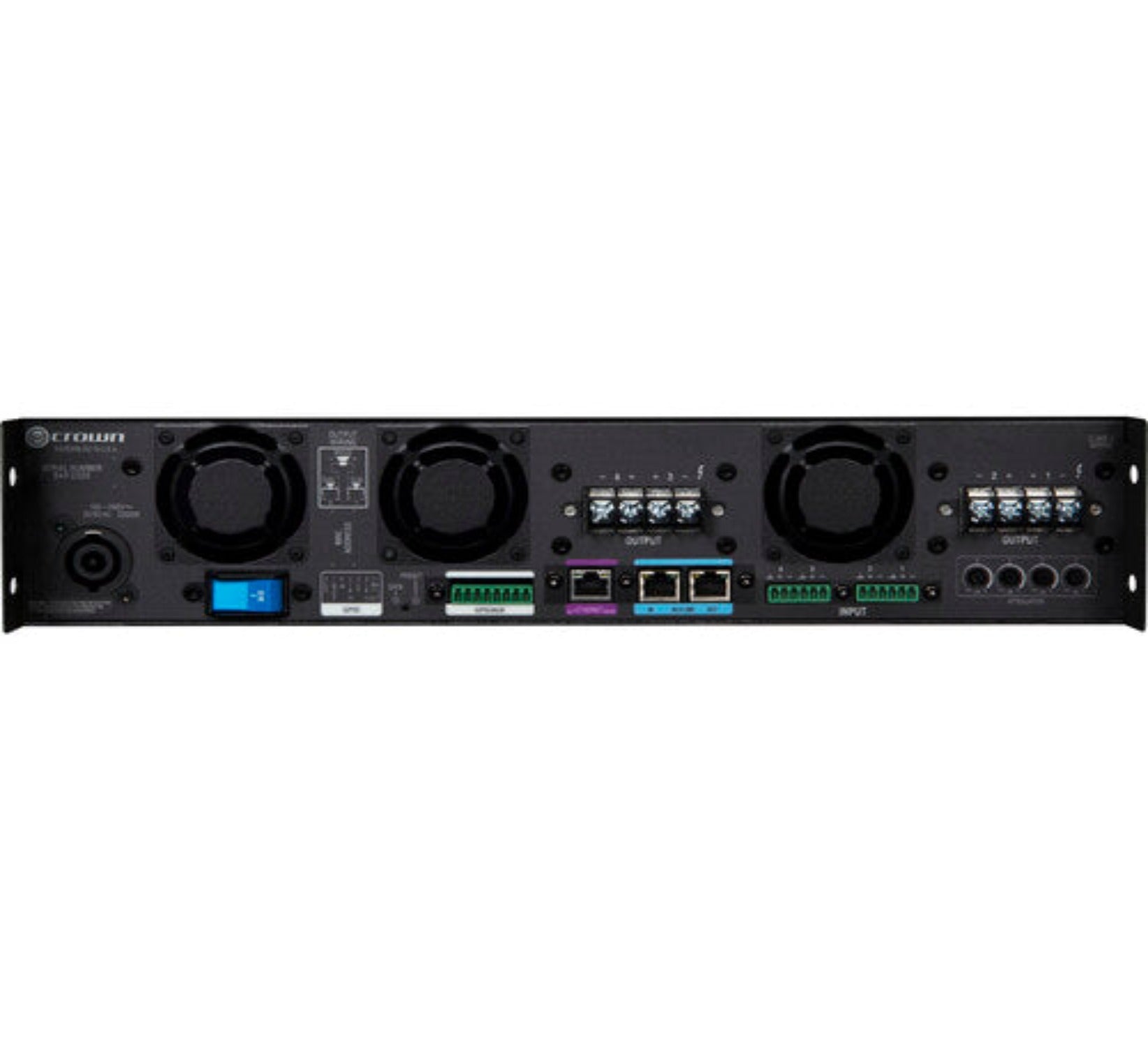

  • Inputs:1 x 6-pin Euroblock
  • Outputs:1 x Barrier Strip
  • Data I/O:1 x Ethernet, 2 x RJ45 (BLU link), 1 x 8-pin Euroblock (aux)
  • Cooling System:Variable Speed Fan
  • DSP:Yes
  • Filters:Yes
  • Frequency Response:20Hz-20kHz
  • THD:0.35%
  • Rack Spaces:2U
  • Power Source:NEMA 6-20 Plug required
  • Height:3.5"
  • Depth:19"
  • Width:19"
  • Weight:24 lbs.
