CROWN DCi 2|2400N

CROWN DCi 2|2400N

he Crown Audio DriveCore Install 2|2400N is a 2400W, 2-channel, BLU Link network amplifier with advanced features and flexibility that's required by system integrators for challenging 21st century installed sound applications.

The 2/2400N can produce up to 2400W of output per channel at 2, 4, 8 or 16 ohms or 70 or 100 volts rms. It is compatible with Harman's BLU Link digital audio transport and accepts digital inputs via its rear-panel RJ-45 connectors. This digital control allows for networked monitoring, recallable presets, and the setup of secondary inputs that engage if the primary inputs fail. The 2|2400N also has built-in DSP capabilities including limiting, input/output EQs, delay, and a matrix mixer.

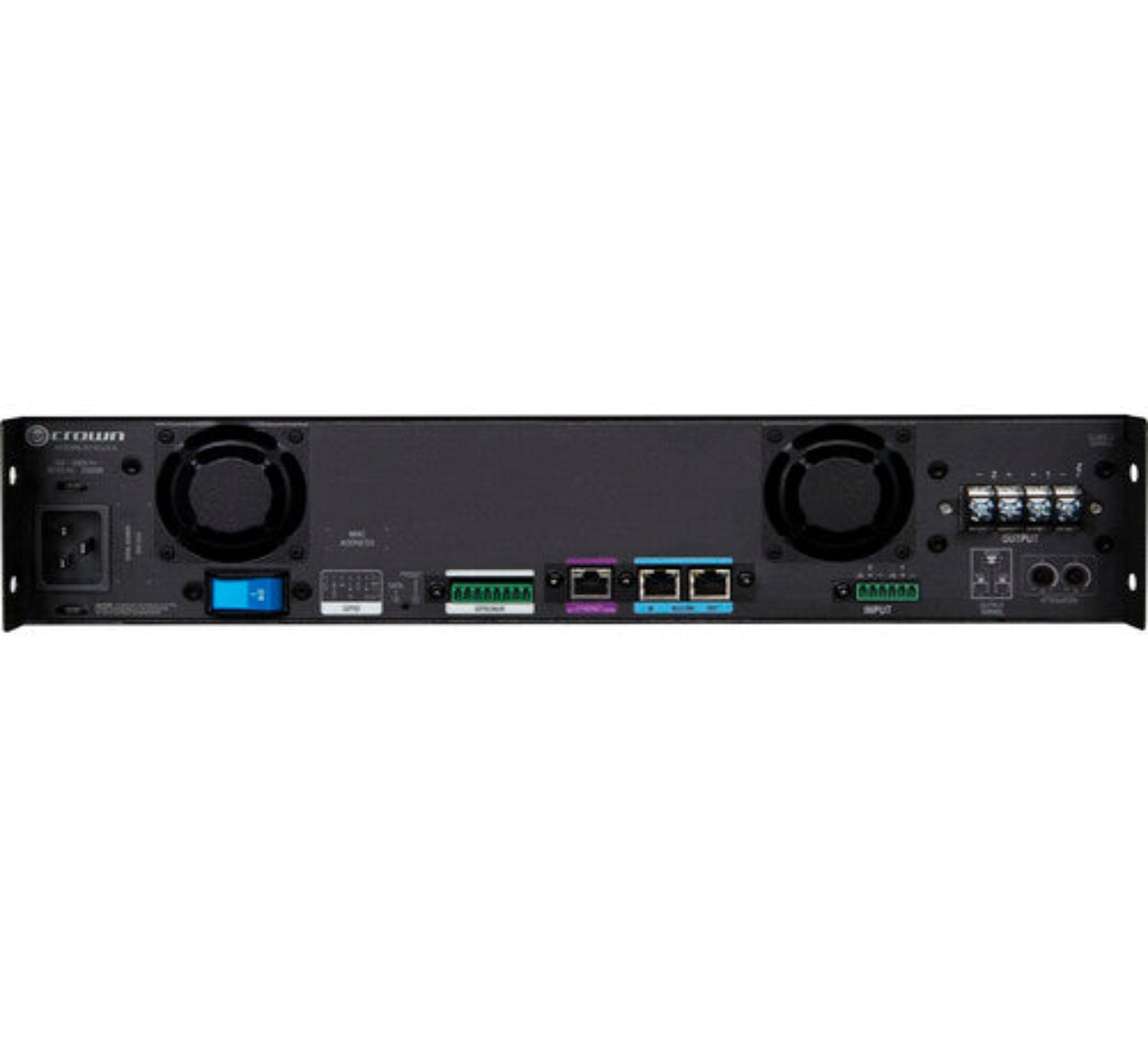

Its two channels can be bridged for powering higher power applications such as a subwoofer. The 2|2400N also has channel-independent high- or low-impedance output that is selectable from the rear-panel DIP switches. This allows you to integrate the amplifier into a variety of different setups. Each of its 2 channels additionally features independent attenuators, ranging from 0 to -80 dB.

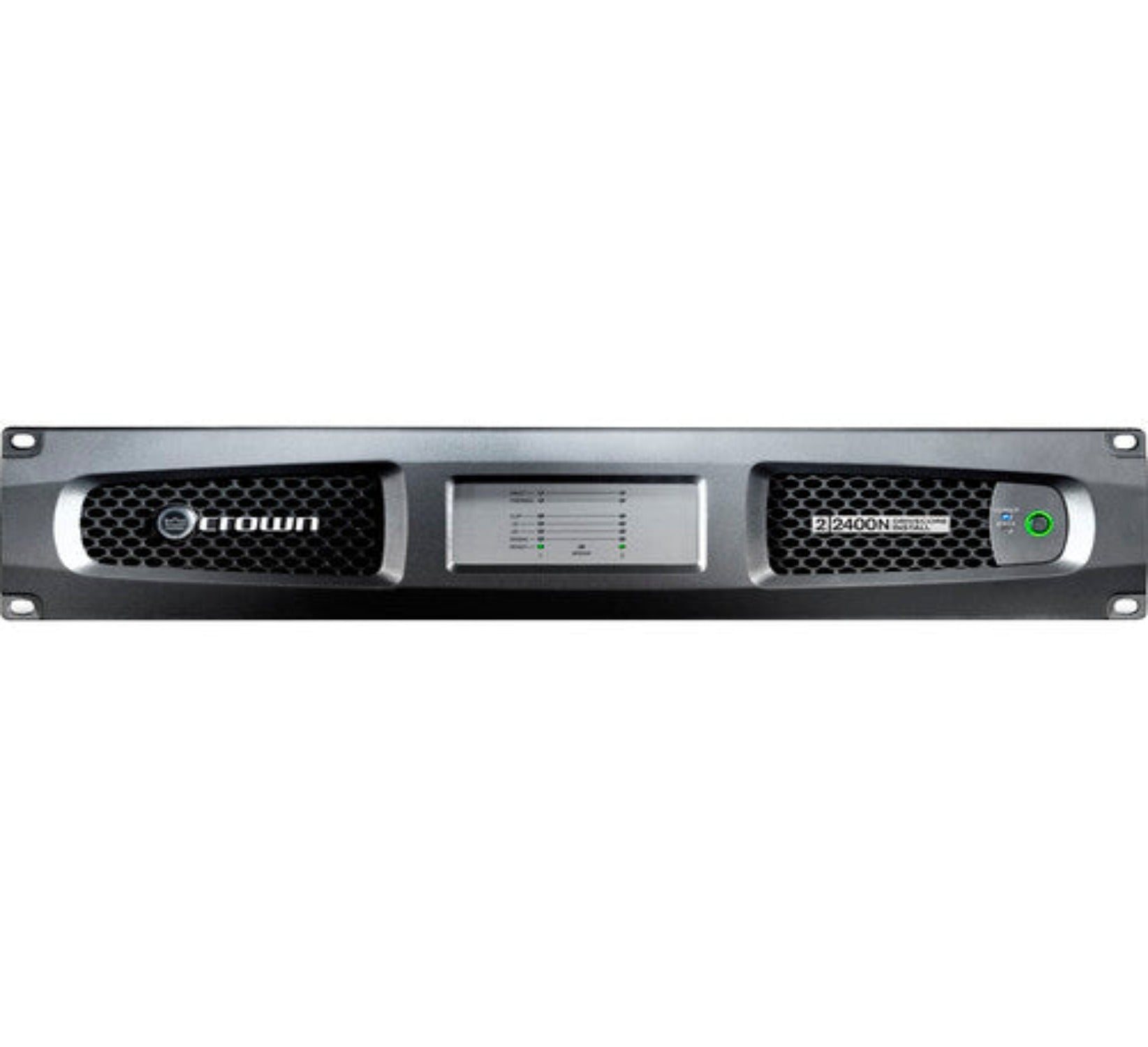

The front panel of the 2|2400N provides a series of system indicators, including level and signal, ready, clip, thermal, and fault alerts for quick visual monitoring of the system. The unit can be integrated into a control system for powering on and off as well as engaging its sleep mode for saving energy when not in use. The 2|2400N is rack-mountable and requires 2 RU of space. A 20A IEC power cord is included.

More Information

Key Features

  • 2400W per Channel
  • Network Monitoring
  • BLU Link Digital Audio & DSP
  • Rack-Mountable
  • Channel-Independent Hi-Z or Low-Z Output
  • Bridgeable Channel Pairs
  • Front-Panel Indicators
  • Channel-Independent Attenuators
  • Sleep Mode
  • Includes 20A IEC Power Cord

Technical Specification

Output Channels 2
Frequency Response (8Ω, 20Hz - 20kHz) ±0.25dB
Total Harmonic Distortion (at full rated power, 20Hz - 20kHz) 0.35%
Damping Factor (20Hz to 100Hz) >5000
Load Impedance (Stereo/Dual Mode) 2Ω - 16Ω; 70Vrms and 100Vrms
Load Impedance Bridge Mono 4Ω - 16Ω; 140Vrms and 200Vrms
Cooling Continuously variable speed forced air, front to back airflow
Required AC Mains (±10%) 100V-240V ~ 50/60Hz
Power Connector 20A IEC
Dimensions (W x H x D) 483 mm x 89 mm x 483 mm
19 in x 3.5 in x 19 in
Weight 10.9 kg (24 lbs)
