ZOOM H1N

ZOOM H1N

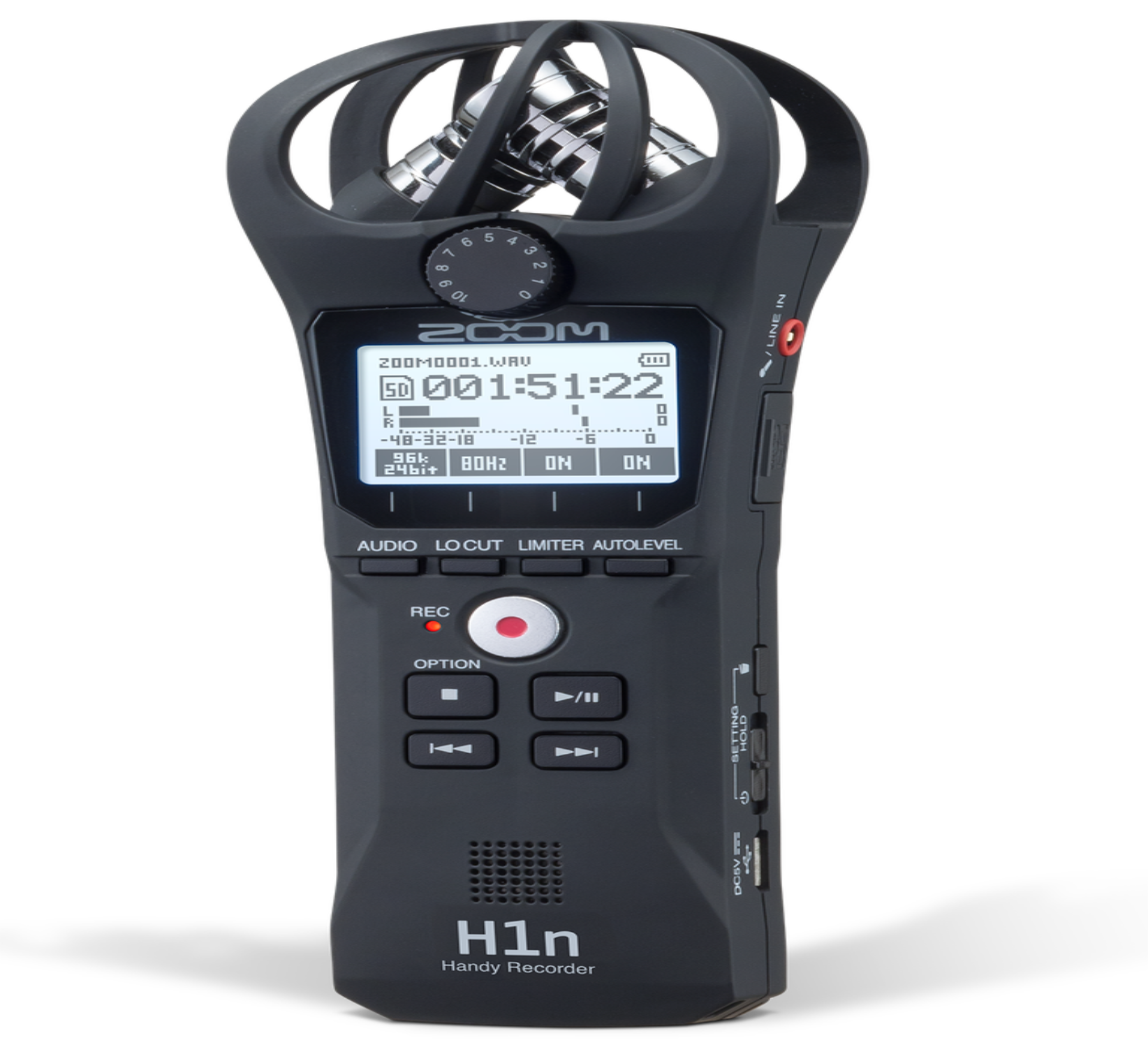

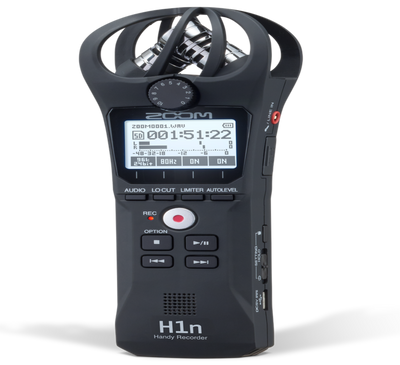

Zoom H1n: Mobile 24/96 Recorder with Onboard XY Mics

The Zoom H1n's dead-simple stereo pickup with unlimited overdubs makes archiving music performances, dialogue, and sound for film easier than ever. The Zoom H1n is the successor to the acclaimed H1. Upgraded features include dedicated one-touch buttons for recording, playback, and audio settings; a new 1.25-inch backlit LCD that reads easily in any lighting condition; slate and test tone generators for simpler A/V sync; auto-record and self-timer functions; a front-facing speaker; and adjustable playback speed for transcription and notation. Whether you use the phase-coherent onboard stereo XY mics or plug in your own sound source via the 1/8-inch stereo mic/line jack, the Zoom H1n captures your world in glorious 24/96 hi-fi. Note: requires an SD card for recording (sold separately).

More Information

Zoom H1n Handy Recorder Features:
  • Mobile 24/96 audio recorder with onboard stereo XY mics
  • Crisper, cleaner backlit 1.25-inch display
  • Captures phase-coherent stereo audio
  • Updated mic shield is sonically transparent
  • Dedicated buttons for audio format and settings
  • One-touch recording and playback
  • Auto-record, self-timer, and pre-record ensure you never miss a moment
  • Slate and test tone generators simplify A/V sync
  • Variable playback speeds for transcription and notation
  • Auto-Level and Limit functions offer 120dB of distortion-free audio
  • USB connectivity for file transfer and interfacing
  • Stereo 1/8-inch mic/line input supports other mics and sound sources
  • Stereo 1/8-inch headphone/line output with volume control
  • Records audio as BWF-compliant 24/96 WAVs or space-saving MP3s
  • Supports microSD/HC cards up to 32GB (sold separately)
  • Up to 10 hours of operation from 2 AAA alkaline batteries (not included)
  • USB-powered for more permanent installs (cables/adapter not included)

Technical Specification

Tech Specs
  • Audio Interface:2 x 2 SD Recorder
  • A/D Resolution:24-bit/96kHz
  • Simultaneous Rec Tracks:2
  • Simultaneous Play Tracks:2
  • Built-in Mic(s):90° XY Stereo Condenser Mics (up to 120dB SPL)
  • Analog Inputs:1 x 1/8" TRS (mic/line)
  • Analog Outputs:1 x 1/8" TRS (headphones/line out)
  • Headphones:Yes (shared out)
  • Built-in Speaker:Yes
  • Memory (removable):microSD/SDHC (up to 32GB)
  • File Format:WAV, MP3
  • Effects:Speed Control (playback), Tone/Filter presets
  • USB:1 x Type Micro-B
  • Power Supply:2 x AAA batteries / USB 5V DC adapter (sold separately)
  • Battery Life:10 hours
  • Stand Mountable:Optional MA-2 mic stand adapter (sold separately)
  • Height:1.25"
  • Width:1.96"
  • Depth:5.41"
  • Weight:0.13 lbs.
