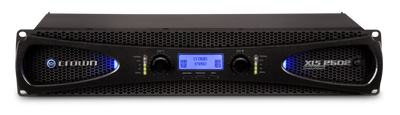

CROWN XLS 2502

CROWN XLS 2502

The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

    More Information

    • - Class D amp with Crown's ultra-efficient Drive
    • - Core technology weighs less than 11 lb(5 kg)
    • - Higher DSP capabilities: More control; has band pass filter per channel
    • - Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
    • - Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
    • - Set sleep mode after specified time without having to press a button
    • - Security setting disables menu buttons; menu locked/unlocked by entering combination
    • - System reset allows factory settings to be restored
    • - Remote power trigger
    • - Peakx Limiters provide maximum output while protecting your speakers
    • - XLR, 1/4", RCA inputs provide flexibility
    • - Integrated PureBand™ Crossover System for better performance and control
    • - Efficient forced-air fans prevent excessive thermal buildup

    Technical Specification



    XLS SERIES XLS 1002 XLS 1502 XLS 2002 XLS 2502
    Product type Two-channel, 350W @ 4Ω Power Amplifier Two-channel, 525W @ 4Ω Power Amplifier Two-channel, 650W @ 4Ω Power Amplifier Two-channel, 775W @ 4Ω Power Amplifier
    Dimensions 19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm) 19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm) 19" (48.3 cm) x 3.5" (8.9 cm) x 10.7" (21.2 cm) 19" (48.3 cm) x 3.5" (8.9 cm) x 10.7" (21.2 cm)
    THD < 0.5% < 0.5% < 0.5% < 0.5%
    Frequency Response +0dB, -1dB +0dB, -1dB +0dB, -1dB +0dB, -1dB
    Sensitivity 1.4Vrms 1.4Vrms 1.4Vrms 1.4Vrms
    Weight 8.6 lbs (3.9 kgs) 8.6 lbs (3.9 kgs) 10.8 lbs (4.9 kgs) 10.8 lbs (4.9 kgs)
    Signal to Noise > 97dB (at .775Vrms sensitivity, 6dB lower) >103dB (at .775Vrms, 6dB lower) >103dB (at .775Vrms, 6dB lower) >103dB (at .775Vrms, 6dB lower)
    Crosstalk At 1kHz: > 85dB, At 20kHz: > 55dB At 1kHz: > 85dB, At 20kHz: > 55dB At 1kHz: > 85dB, At 20kHz: > 55dB At 1kHz: > 85dB, At 20kHz: > 55dB
    Intermodulation Distortion < 0.3% < 0.3% < 0.3% < 0.3%
    Damping Factor > 200 > 200 > 200 > 200
