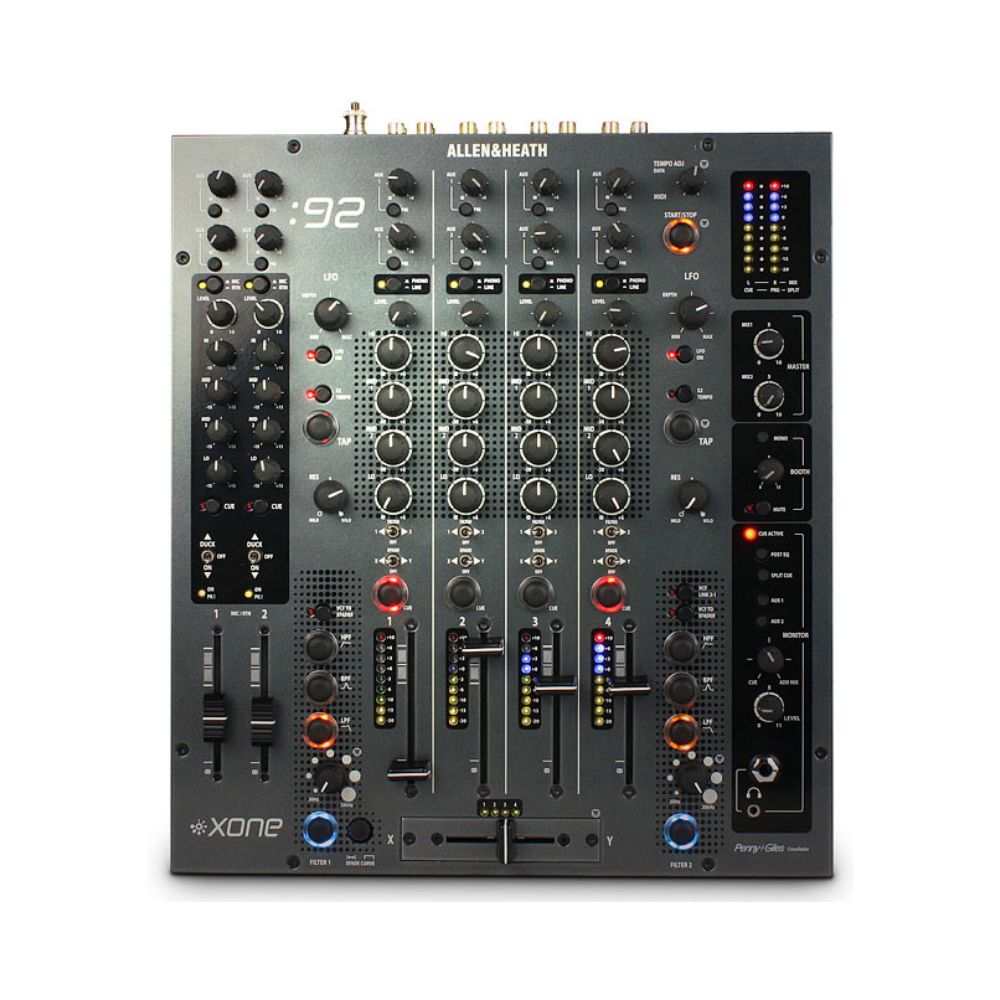

Allen & Heath Xone:92
Allen & Heath Xone:92

Allen & Heath Xone:92

The industry-standard Xone:92 is a versatile six channel analogue mixer, renowned for its expansive, involving sound.

With its solid construction and easy to use interface, the 92 is on the riders of most of the world’s top DJs and is a permanent fixture in the booth at many of the biggest superclubs.

The Xone:92 was one of the first professional DJ mixers to incorporate MIDI for control of DJ software or external devices, and the first to include the innovative dual VCF filters.

With its two stereo FX sends, twin Mic/returns, and one of the best EQ sections around, this mixer is a DJ’s dream tool.

Enquire Now

Product details

More Information
  • 6 dual stereo channels – 4 phono/line, 2 mono/mic or stereo return
  • 2 independent stereo mix outputs
  • 2 aux sends for output to external FX units
  • VCF system – 2 independent stereo filters with frequency and resonance controls
  • 2 independent LFO’s for filter manipulation
  • 4-band EQ – total kill on HF and LF, wide Q for cut, narrow Q for boost
  • Booth output – dedicated output on TRS jack
  • MIDI values can be output from 6 controls (e.g. crossfader, LFO)
  • P&G easy change professional VCA crossfader
  • Illuminated lightpipes showing status of performance controls
  • Intelligent cue for pre or post EQ monitoring
  • Monitor section includes post EQ switch, split cue and mix to cue balance
  • 2 headphone outputs (1/4” and 3.5mm)
  • Ducking control on mono/mic channel
Technical Specifications
  • 6 Dual stereo inputs, 2 with mic inputs, RIAA preamps for up to 4 turntables.
  • 2 auxiliary sends selectable pre/post fader (and crossfader).
  • MIDI output from VCF 1+2, crossfader, LFO (MIDI clock), dedicated data control and start/stop button.
  • New twin-rail VCA channel faders or high quality VCA rotary faders.
  • 2 independent stereo mix outputs.
  • 2 VCF filters – any performance channel can be assigned to either filter and either side of crossfader.
  • 2 x independent Low Frequency Oscillators (LFO) for filter modulation.
  • Active Penny & Giles VCA crossfader allowing contour to be set from smooth to scratch mix.
  • Custom illumination showing status of all performance switches.
  • 4 band EQ – high definition of frequency bands, with ‘infinite kill’ on HF and LF; wide Q for cut, narrow Q for boost.
  • Dedicated booth output.
  • Metering – extensive channel, output and cue metering.
  • Intelligent cue system allowing pre or post EQ monitoring.
  • Monitor section – includes post EQ switch; split cue and Cue/Mix monitor balance control.
  • 2 x headphone outputs 1/4″ and 3.5mm jack.
  • Talkover facility on mono/mic channel attenuates music by 20dB.
  • Dedicated clean feed record output.
  • Input selectors with 2 colour indicators.
  • Smooth action level controls.
  • MIDI output from VCF 1+2, crossfader, LFO 2 (MIDI clock), dedicated data control and start/stop button.
  • Large ‘light-pipe’ illuminated cue switches.
  • 9 led 3 colour channel ‘bulls eye’ LED meters.
  • Either smooth travel 60mm VCA faders or rotary VCA faders (Linear or Rotary versions).
  • 2 Independent mix outputs.
  • 2 Rotary master level controls.
  • Dual stereo analogue VCF effects.
  • 3 Filter modes combine for more effects.
  • Independent frequency sweep controls.
  • Resonance control for subtle or wild effects.
  • Filter LFO Depth and tempo controls.
  • Illuminated Filter switches punch effect in or out.
  • Powerful headphones monitor with auto cue.
  • Headphones split cue and Aux 1 & 2 monitoring.
  • Stereo music only booth monitor output.
  • Booth mono and mute switching.
  • 9 led 3 colour main ‘bulls eye’ LED meters.
  • Balanced 0dBu XLR stereo Mix 1 output.
  • Impedance balanced Line stereo Mix 2 output.
  • Pre-fade recording output.
  • Universal power supply for worldwide performance.
  • Internal installer options for system optimization.
  • Plinth or 19″ rack mount ears included.
  • Spare knobs included.
