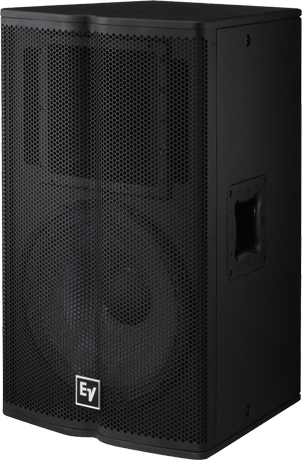

ELECTROVOICE TX 1152

• High-output, high-quality sound
• Excellent pattern control for medium throw use
• Low-distortion SMX2151 woofer with fully symmetric drive
• 1.25-inch DH3/2010A titanium HF compression driver
• Rotatable Constant-directivity 60º x 40º horn
• Advanced 4th-order crossover with HF protection
• 100 dB sensitivity, 133 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak
• Lightweight trapezoidal plywood/MDF enclosure
• Pole mount for use with subwoofer or stand
• Six M10 threaded suspension points
• Black EVCoat finish

Frequency Response (-3 dB)

65 Hz – 20 kHz

Frequency Range (-10 dB)

45 Hz – 20 kHz

Recommended High-Pass Frequency

45 Hz

Axial Sensitivity

100 dB (1W/1m)

Maximum Calculated SPL

133 dB

Coverage

Horizontal Coverage

90°

Vertical Coverage

50°

Power

Power Handling

500W Continuous

2000W Peak

Transducers

LF Transducer

SMX2151 – 15" (381 mm) Driver

HF Transducer

DH3 – 1.25" (32 mm) Diaphragm Compression Driver

Crossover Frequency

1750 Hz

Impedance

Nominal Impedance

8 Ω

Minimum Impedance

6.2 Ω

Connectors

(2) Neutrik Speakon NL4

Construction

Enclosure Material

Plywood & MDF with EVCoat™

Grille

16-Gauge Steel, Black Powder-Coat, Rotatable Logo

Dimensions (H × W × D)

18.7" × 17.3" × 25.8"

(475 mm × 439 mm × 655 mm)

Net Weight

51.9 lbs (23.5 kg)
