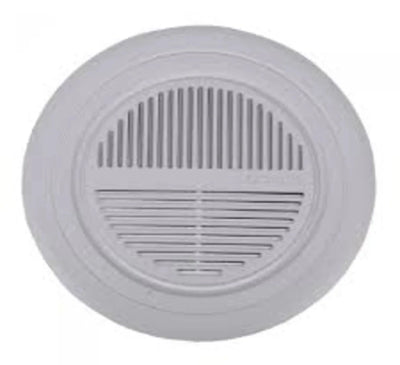

The LBD8353/10 is a general purpose speaker costeffective6 W ceiling loudspeaker, suitable for 100 Vconnection with power tapping of: 6, 3 and 1.5 Watt. Itis a full range loudspeaker for speech and musicreproduction in shops, department stores, schools,offices, sports halls, hotels and restaurants.
|Model Name/Number||6W Ceiling Speaker LBD8353/10,|
|Sound Pressure level at 6 W / 1 W ( 1 KHz at 1m)||98.1 dB / 89.1 dB (SPL)|
|Effective frequency range (-10 dB)||100 Hz - 8 KHz|
|Opening Angle at 1 KHz / 4 KHz (-6 dB)||180 Degree / 45 Degree|
|Rated impedance||1667 ohm|
|Maximum depth||68 mm|
