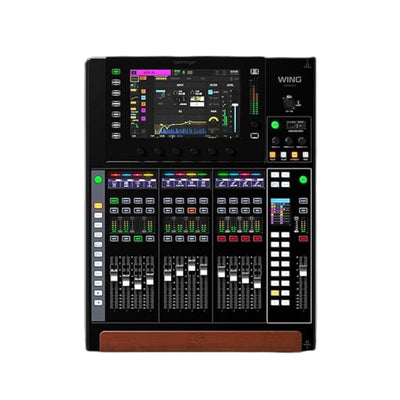

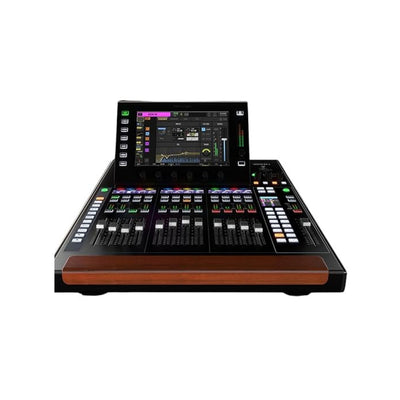

BEHRINGER WING COMPACT
BEHRINGER WING COMPACT
BEHRINGER WING COMPACT

BEHRINGER WING COMPACT

Small, Powerful, and Built Around You The Behringer WING Compact packs the processing power, channel count, effects, expansion slots, and digital I/O of the full-size WING into a lightweight, 13-fader control surface. That said, the WING Compact supplements its near-limitless digital connectivity with 24 award-winning Midas Pro preamps, making it an ideal all-in-one solution, even without a separate stage box. A 10.1-inch capacitive touchscreen and intuitive Sources paradigm provide streamlined navigation, enabling you to focus on your source audio rather than the nuts and bolts of your mix. You’ll also appreciate the enhanced customization afforded by the WING Compact’s eight user-assignable buttons, plus you get a dedicated Bus/Main/DCA section for fader usage and effect and DCA spill. You can record up to 64 channels directly to dual SD cards, use optional expansion cards to attain Dante support, or deploy the WING Compact’s built-in 48-in/48-out USB audio interface to record straight.

Enquire Now

Product details

More Information

WING Compact — made for the way you want to work

Digital mixers are extremely powerful; thus, they can seem intimidating. That’s not the case with the WING Compact. Like its larger sibling, it’s a breeze to navigate. Its interface centers around a 10.1-inch capacitive touchscreen augmented by touch-sensitive rotary controls. Best of all, its three fader sections and eight user-assignable buttons can be tailored to your requirements. It doesn’t get much more intuitive than that! Whether you require a specific bus send fader next to the corresponding channel fader or a meticulously configured custom channel that’s always at the ready, the WING Compact is made for the way you want to work.Sources make navigation simple

The WING Compact takes after its full-size predecessor in that it’s jam-packed with I/O — 374 inputs and outputs, to be exact. And if you include its internal signals, the WING Compact includes 400 inputs and outputs. Faced with this much I/O, Behringer’s engineering team reimagined the flow of a traditional mixer, putting the emphasis on your source audio, using what Behringer calls — quite fittingly — Sources. Within the WING ecosystem, inputs are much more than historical inputs because they contain metadata on what the Source is — tags, input icon, input color, gain, phantom power, and if the Source is mono, stereo, or mid-side. All that information follows the source to any channel. With one button, that information can be copied to the channel, and the tags, icon, color, and other metadata show up on the channel immediately. If you move a Source to another channel, the information goes with it — no need for old-fashioned copying and pasting.

Sources make navigation simple

The WING Compact takes after its full-size predecessor in that it’s jam-packed with I/O — 374 inputs and outputs, to be exact. And if you include its internal signals, the WING Compact includes 400 inputs and outputs. Faced with this much I/O, Behringer’s engineering team reimagined the flow of a traditional mixer, putting the emphasis on your source audio, using what Behringer calls — quite fittingly — Sources. Within the WING ecosystem, inputs are much more than historical inputs because they contain metadata on what the Source is — tags, input icon, input color, gain, phantom power, and if the Source is mono, stereo, or mid-side. All that information follows the source to any channel. With one button, that information can be copied to the channel, and the tags, icon, color, and other metadata show up on the channel immediately. If you move a Source to another channel, the information goes with it — no need for old-fashioned copying and pasting.

Technical Specifications
  • Type:Digital Mixer
  • Channels:48
  • Inputs - Mic Preamps:24 x XLR-1/4" combo (mic/line)
  • Phantom Power:24 Channels
  • Outputs - Main:8 x XLR
  • Inputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
  • Outputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
  • Busses/Groups:8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
  • Inserts:Dual Inserts per Bus, FX Insert Slot
  • MIDI I/O:In/Out
  • Data I/O:2 x Ethernet (control/audio network)
  • USB:1 x Type B, 1 x Type A
  • Computer Connectivity:USB 2.0, 24-bit/48kHz (48 x 48)
  • Remote:1 x 1/4" (GPIO)
  • I/O Expansion Slots:1 x Expansion Slot
  • Faders:13 x 100mm Motorized
  • EQ Bands:6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
  • Effects:8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
  • Signal Processing:Full Dynamics Processing
  • DAW Control:Yes (HUI, Mackie)
  • Screen:10" Capacitive Touchscreen, Adjustable Swivel
  • Storage:2 x SD Card Slot (dual 32 track max)
  • Rackmountable:Yes
  • Power Source:Standard IEC AC cable
  • Height:8.58"
  • Depth:22.61"
  • Width:17.84"
  • Weight:35.1 lbs.
  • Manufacturer Part Number:0603-AEV86-US1
