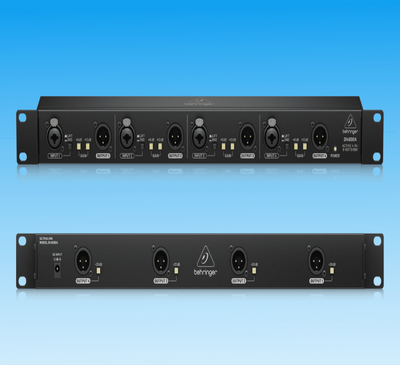

Behringer DI4800A

Behringer DI4800A

Rackmount DI, Splitter, and Booster for the Whole Band

With the Behringer DI4800A 4-channel active direct box, you've got robust direct injection for the whole band in a convenient 1U rackmount size. No more messing with cumbersome stage boxes and rat's nests of cable — the DI4800A sits comfortably in a rack at the back of your stage for clean, clear reproduction of your live instrumentation. However, the budget-conscious DI4800A is more than just a refreshing take on the traditional DI. Onboard active circuitry makes this 4-channel DI an ultra-low-noise line driver as well, with stackable +6dB and +12dB active boosts for feeding weak acoustic guitar pickups and consumer-level keyboard outputs to a soundboard for amplification. In the studio, the DI4800A is equally at home as a signal splitter. Two sets of transformer-isolated outputs — one set on the front, and another set on the rear with -20dB pads — make the Behringer DI4800A a powerful creative tool in any performance environment. Take it from sound engineers Sweetwater: whether you're streamlining your stage DIs or stretching your studio limits, there's a world of possibilities waiting for you with the Behringer DI4800A Professional 4-channel Active DI Box.

More Information

Behringer DI4800A 4-channel Active Direct Box Features:
  • 4-in/8-out active direct box from Behringer
  • Direct injection for the whole band
  • Convenient 1U rackmount size
  • Sits comfortably at the back of your stage for clean, clear reproduction of your live instrumentation
  • XLR-1/4-inch Combi inputs accept a wide range of instruments
  • Up to +18dB of active boost per channel — perfect for boosting passive pickups and consumer-level keyboards
  • 2 sets of transformer-isolated outputs (front and rear) allow for creative signal splitting
  • -20dB pad switches on rear outputs
  • Premium gold-plated connectors

Technical Specification

Tech Specs

  • Type:Active
  • Channels:4
  • Pads:-20dB
  • Ground Lift:Yes
  • Inputs:4 x XLR/1/4" Combo
  • Outputs:8 x XLR
  • Power Source:12V DC power supply (included)
  • Height:1.7"
  • Depth:2.8"
  • Width:19"
  • Weight:3.1 lbs.
